Code 34: Idle Speed Control (ISC)

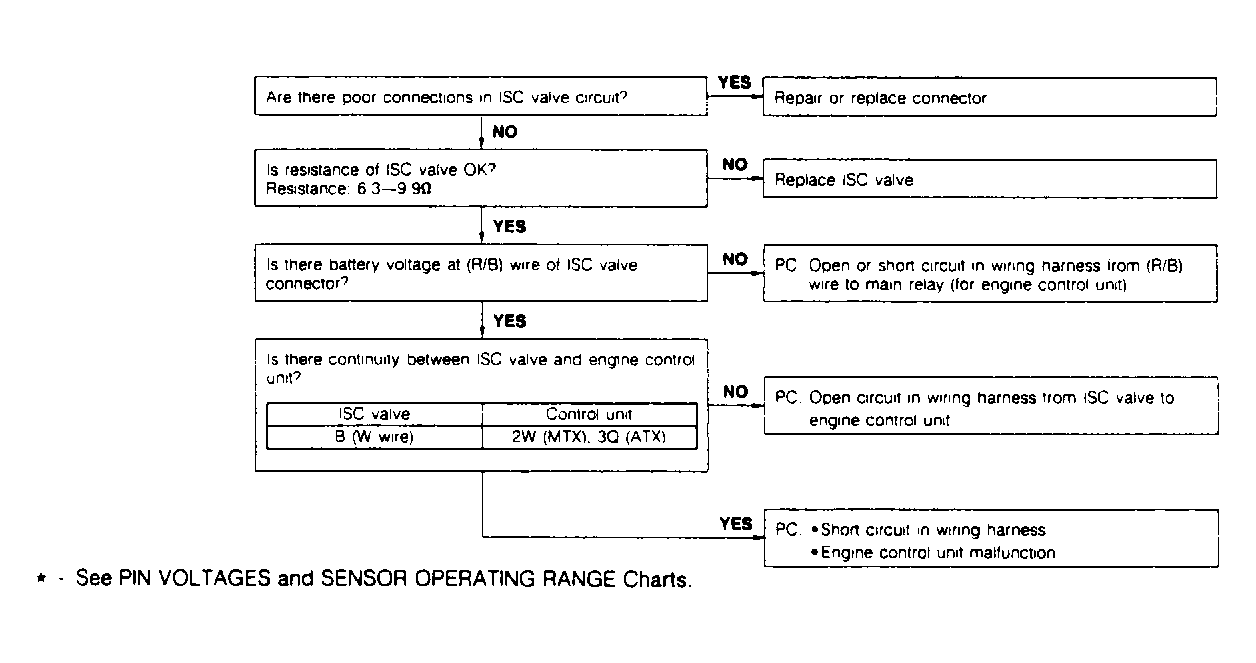

Fig 1: Code 34: Idle Speed Control (ISC) Flow Chart (Non-Turbo)
G90I21483Courtesy of MAZDA MOTORS CORP.
