Trouble Code Identification Chart (Non-Turbo)
›
Code 8: Airflow Sensor
Code 8: Airflow Sensor

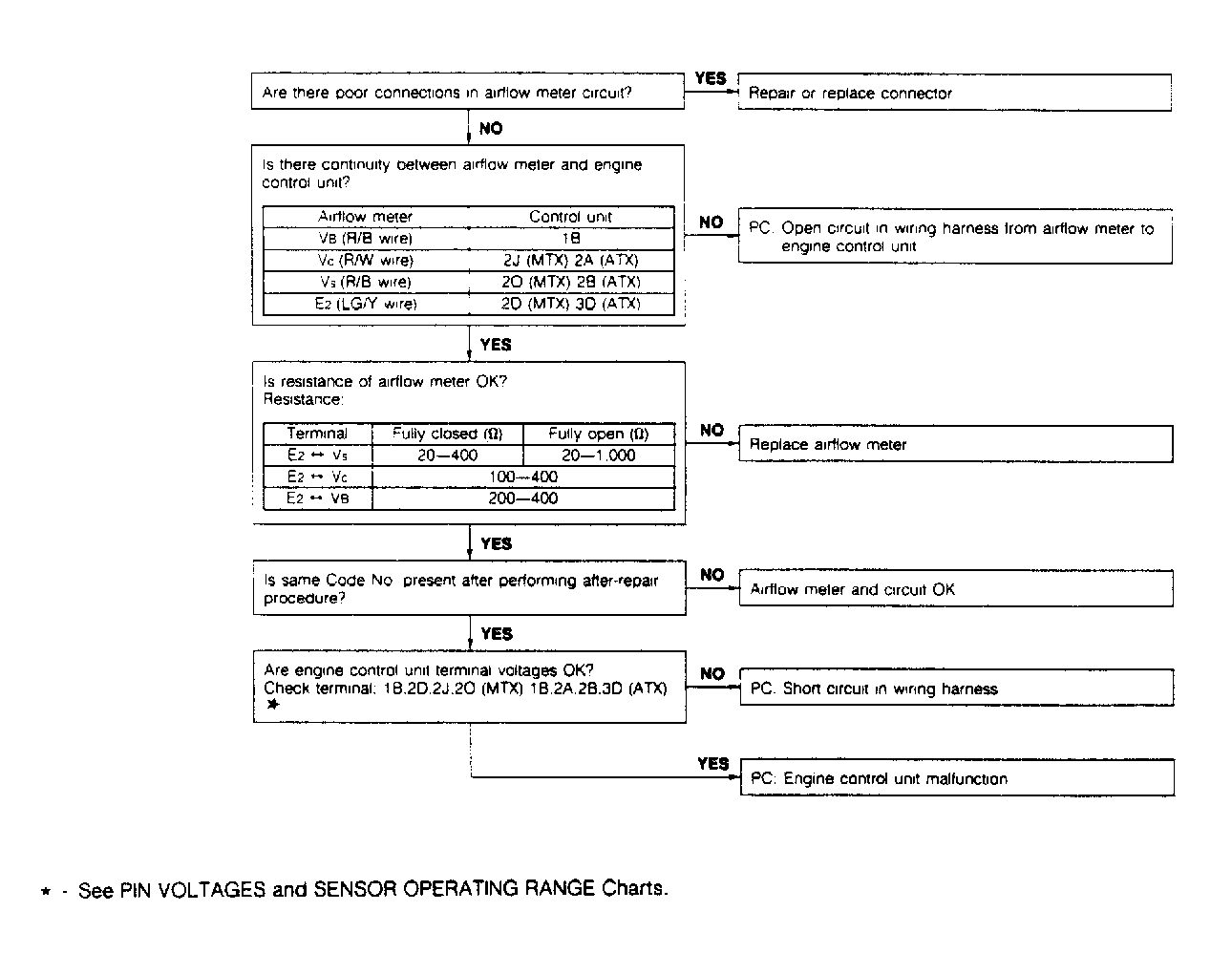

Fig 1: Code 8: Airflow Sensor Flow Chart (Non-Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
