Code 9: Coolant THERMOSENSOR

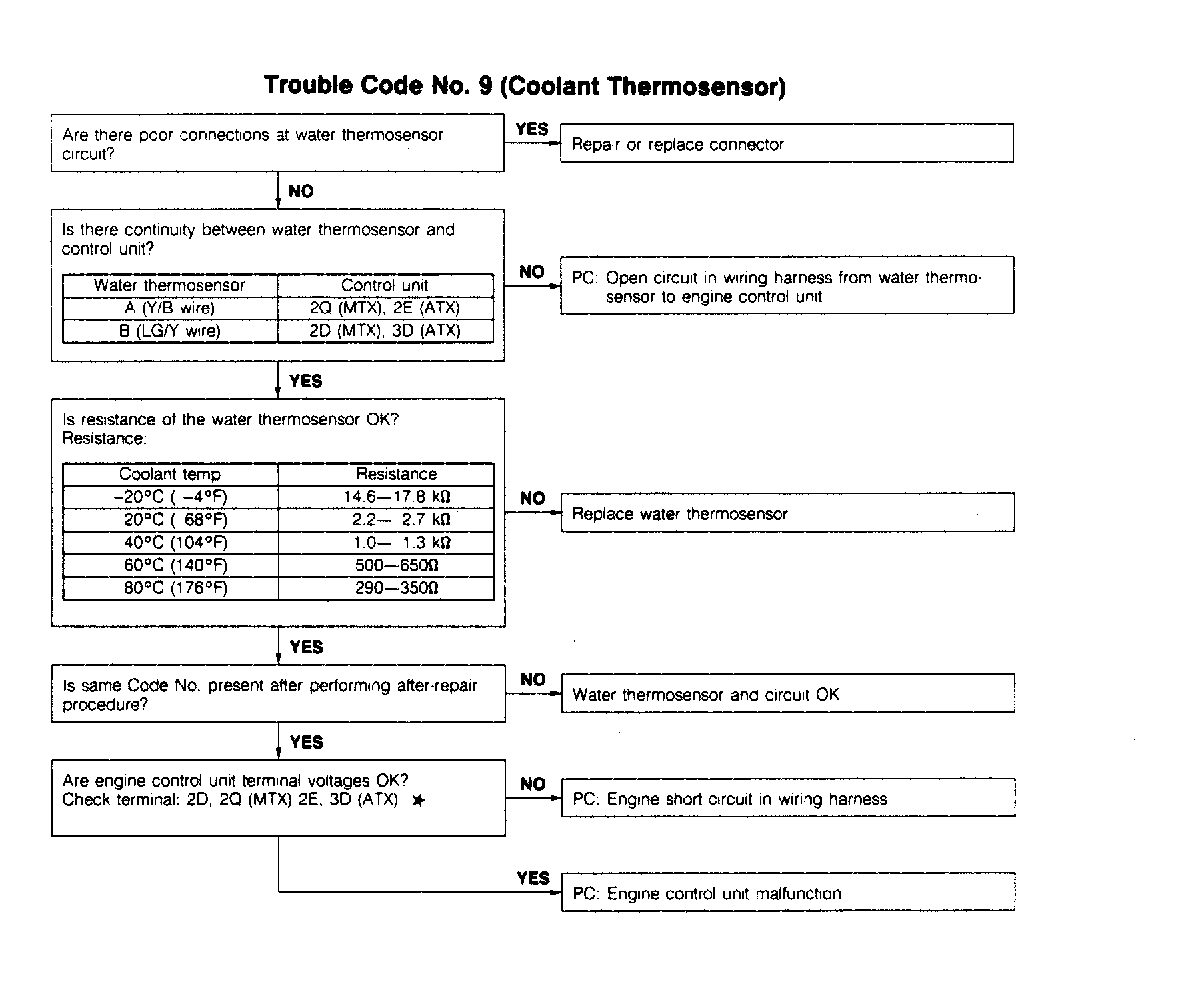

Fig 1: Code 9: Coolant Thermosensor Flow Chart (Non-Turbo)
G90G15079Courtesy of MAZDA MOTORS CORP.
