Trouble Code Identification Chart (Turbo)
›
Code 1: Ignition Pulse
Code 1: Ignition Pulse

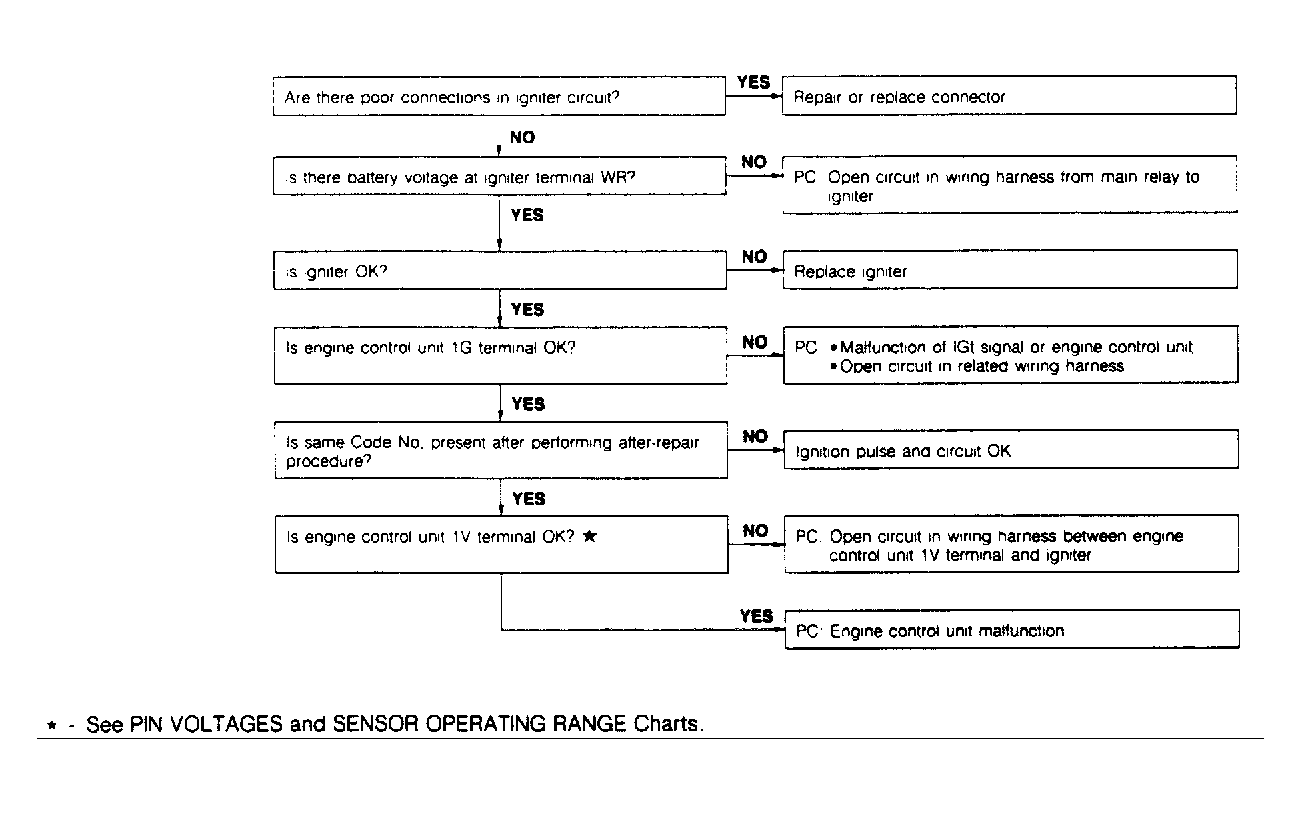

Fig 1: Code 1: Ignition Pulse Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
