Code 10: Intake Air THERMOSENSOR

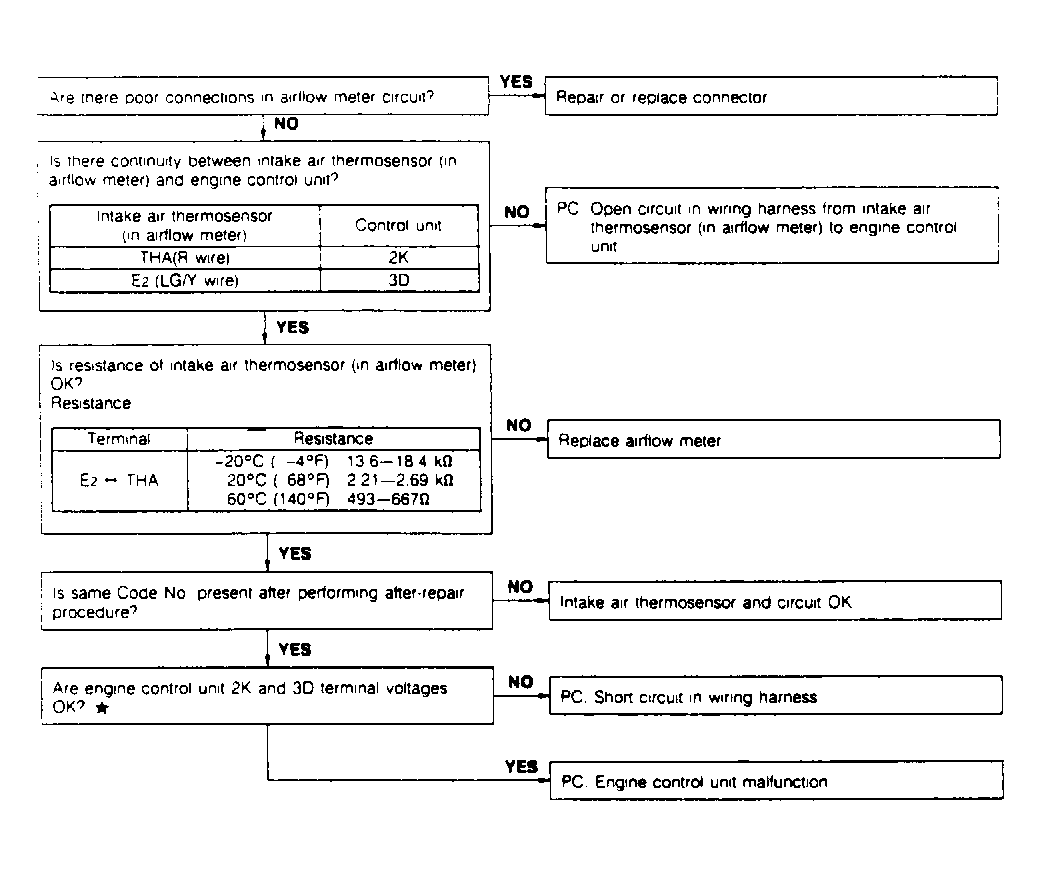

Fig 1: Code 10: Intake Air Thermosensor Flow Chart (Turbo)
G90A21493Courtesy of MAZDA MOTORS CORP.
