Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart (Turbo)
›
Code 15: Oxygen Sensor
Code 15: Oxygen Sensor

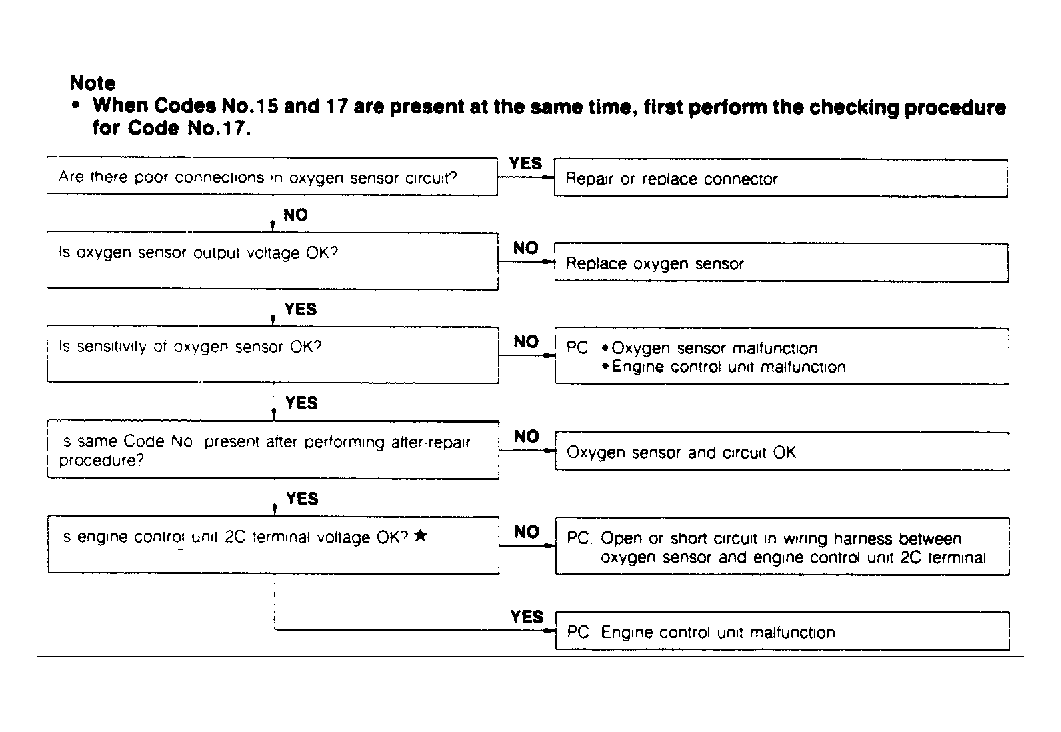

Fig 1: Code 15: Oxygen Sensor Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
