Code 25: Pressure Regulator Solenoid Valve

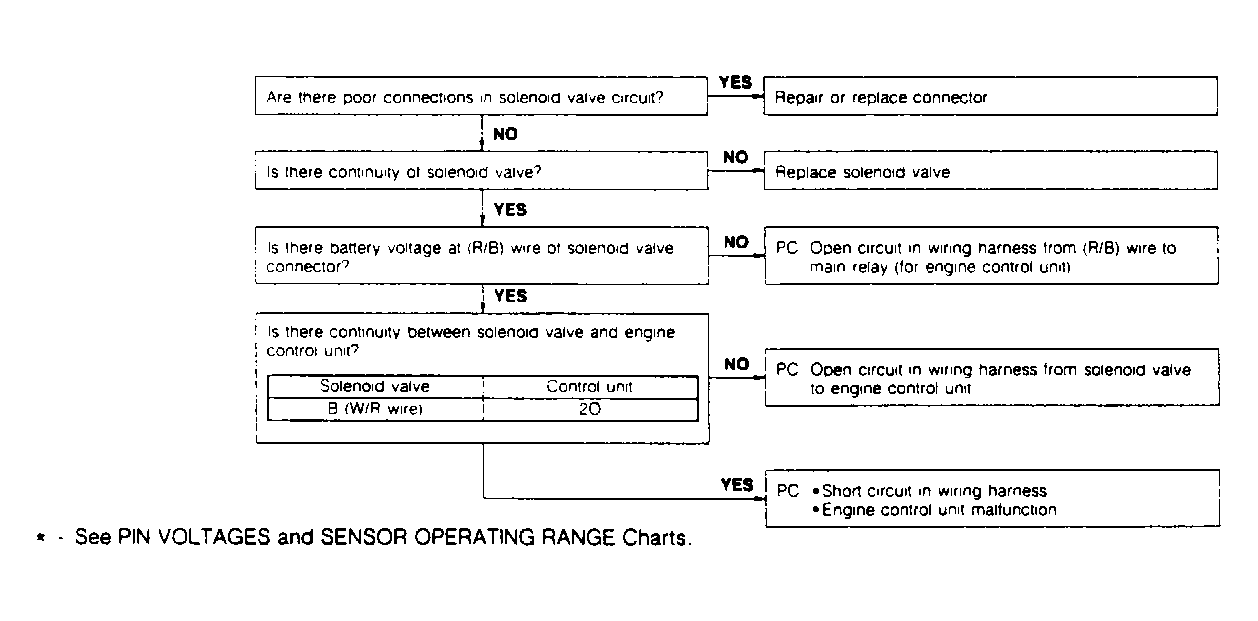

Fig 1: Code 25: Pressure Regulator Solenoid Valve Flow Chart (Turbo)
G90G21499Courtesy of MAZDA MOTORS CORP.
