Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart (Turbo)
›
Code 8: Airflow Sensor
Code 8: Airflow Sensor

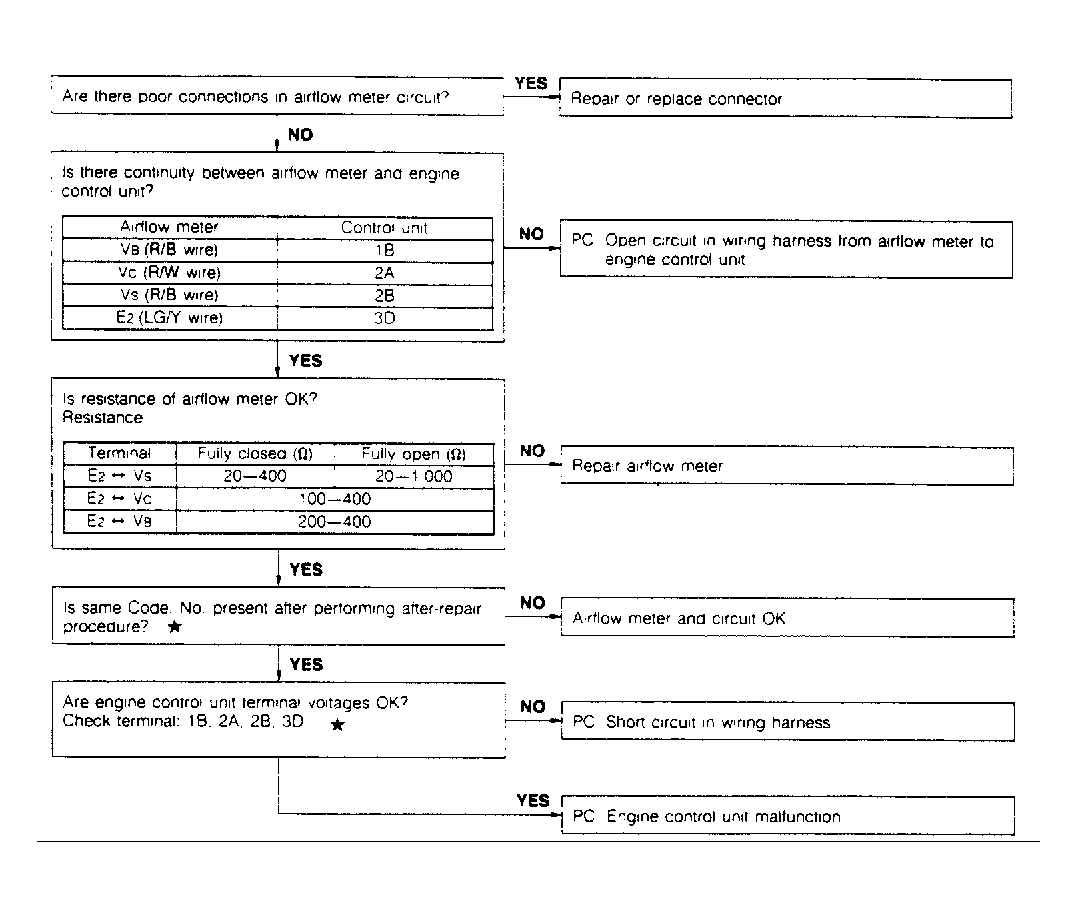

Fig 1: Code 8: Airflow Sensor Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
