Trouble Code Identification Chart (Turbo): Notes

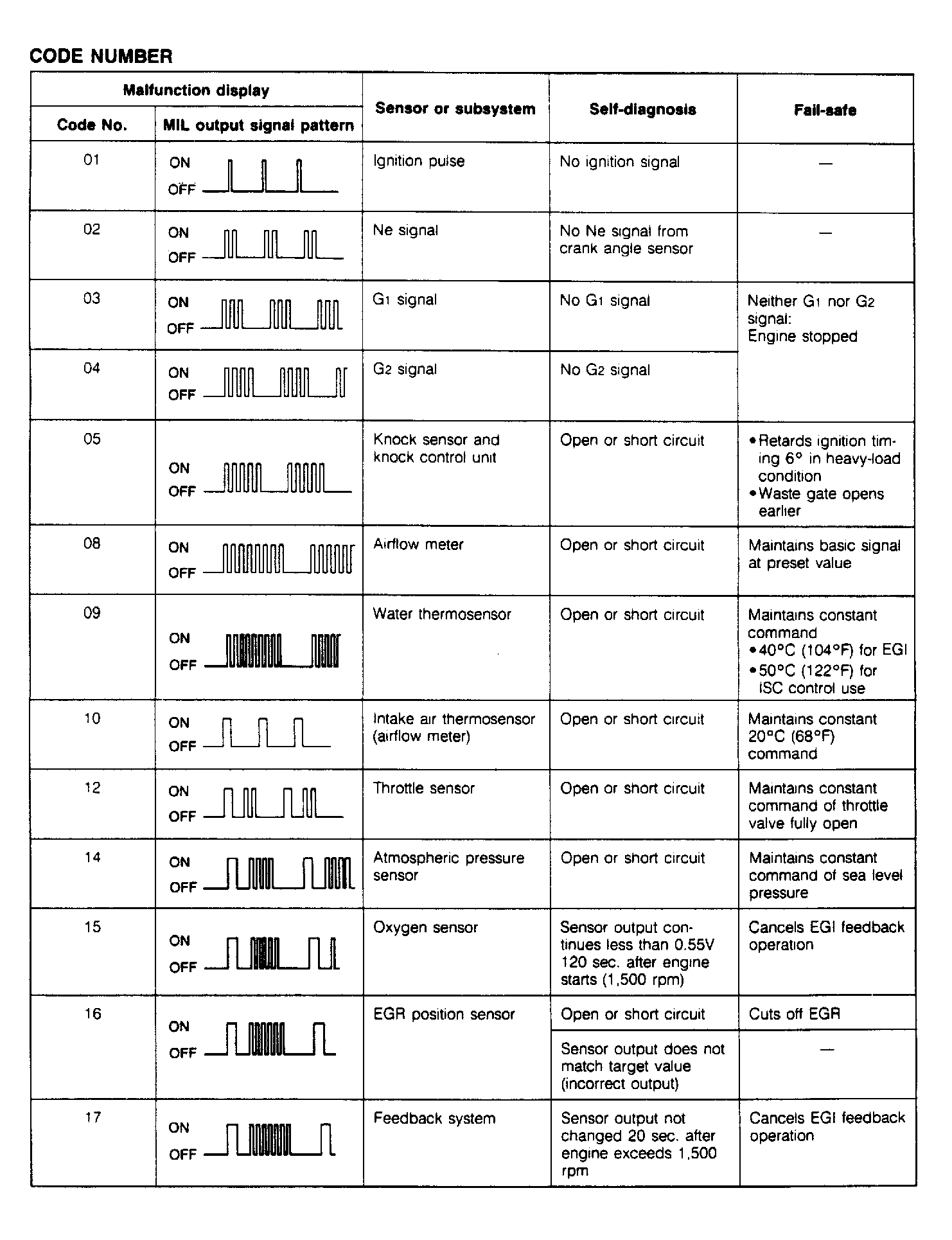

Fig 1: Codes 01 Thru 17 Identification Chart (Turbo)
G90E21638Courtesy of MAZDA MOTORS CORP.
Fig 2: Codes 25 Thru 42 Identification Chart (Turbo)
G90F21639Courtesy of MAZDA MOTORS CORP.
