Continuity/Resistance Tests

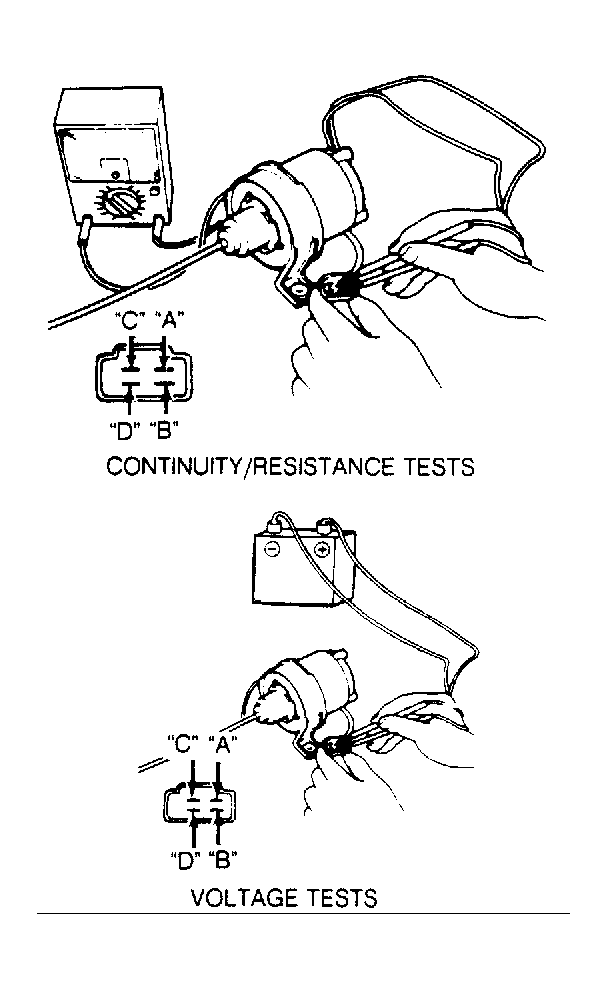

Using an ohmmeter, measure continuity or resistance between actuator connector terminals. SeeFig 1 . Continuity or resistance should be as specified. See ACTUATOR CONTINUITY/RESISTANCE SPECIFICATIONS table. If any circuits are not to specification, replace actuator. If circuits are okay, perform voltage tests.
