Testing Rear Wiper Motor Operational Check: RX7

1. Disconnect wiper motor electrical connector. Ensure continuity exists between terminals B/R and LG/Y. Apply battery voltage to terminal B/R and ground to terminal LG/Y. Motor should operate continuously at normal speed.
2. Procedure for checking RX7 automatic stop is not available.

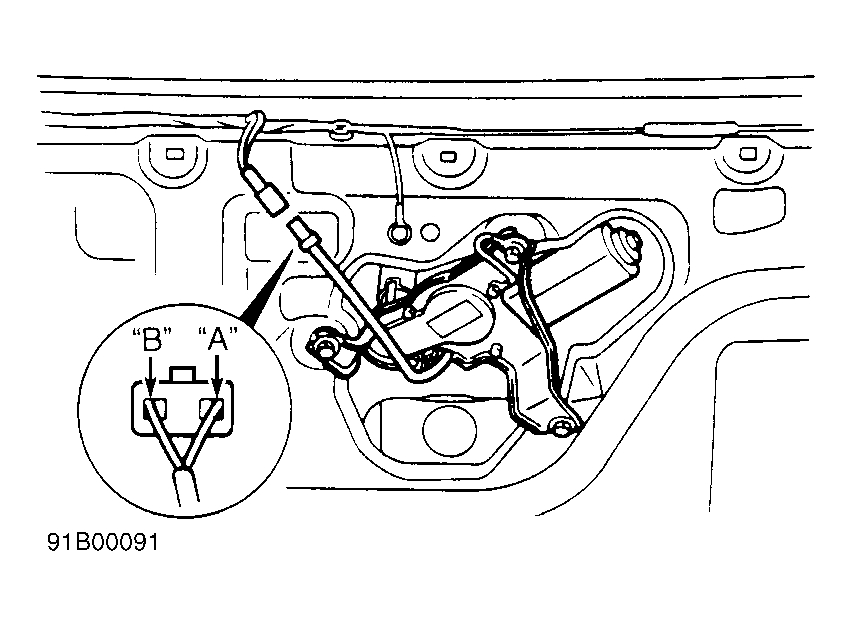

Fig 1: Identifying Rear Wiper Motor Terminal (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Rear Wiper Motor Terminal (Protege & 323)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Rear Wiper Motor Terminal (RX7)

Courtesy of MAZDA MOTORS CORP.
