Main Switch

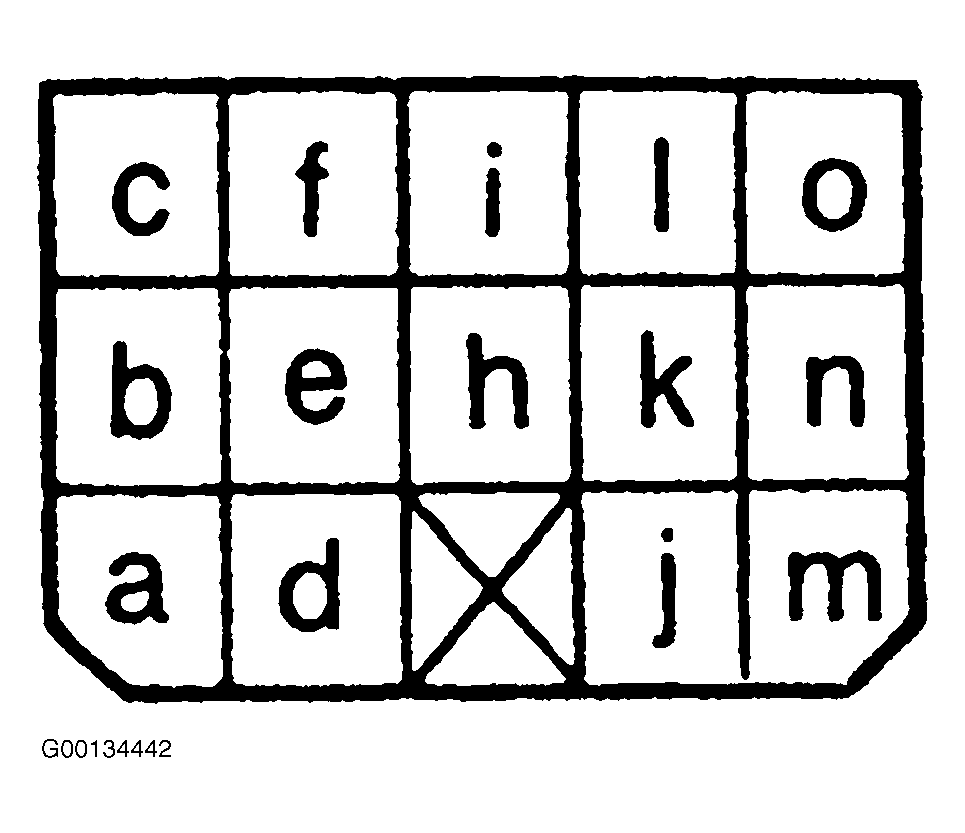

Disconnect main switch connector. Check continuity across specified terminals of main switch connector with switch button held in specified position. See MAIN SWITCH CONTINUITY table. See Fig 1 . Replace main switch if continuity is not as specified.
MAIN SWITCH CONTINUITY
| Switch Position (1) | Continuity Between Terminals | |||
|---|---|---|---|---|
| Driver | ||||
| UP | A & H; F & D | |||
| DOWN | A & F; D & H | |||
| Off (Neutral) | F, D & A | |||
| Passenger | ||||
| UP | F & J; H & M | |||
| DOWN | F & M; H & J | |||
| Off (Neutral) | F, M & J | |||
| Right Rear | ||||
| UP | F & E; B & H | |||
| DOWN | F & B; E & H | |||
| Off (Neutral) | F, E & H | |||
| Left Rear | ||||
| UP | F & K; H & N | |||
| DOWN | F & N; H & K | |||
| Off (Neutral) | F, N & K | |||
|
||||
