Wiring Diagrams

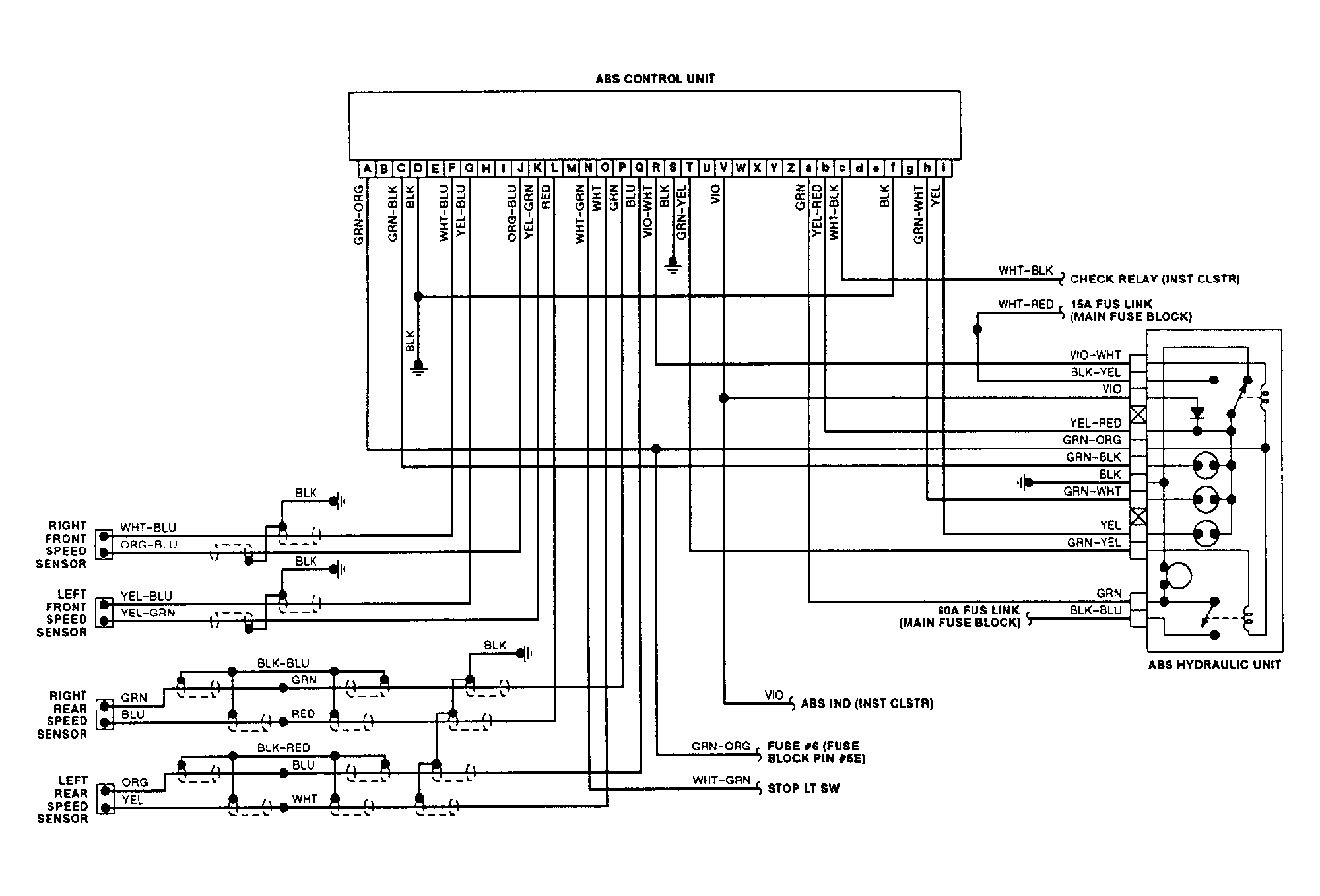

Fig 1: Anti-Lock Brake System Wiring Diagram (Miata)

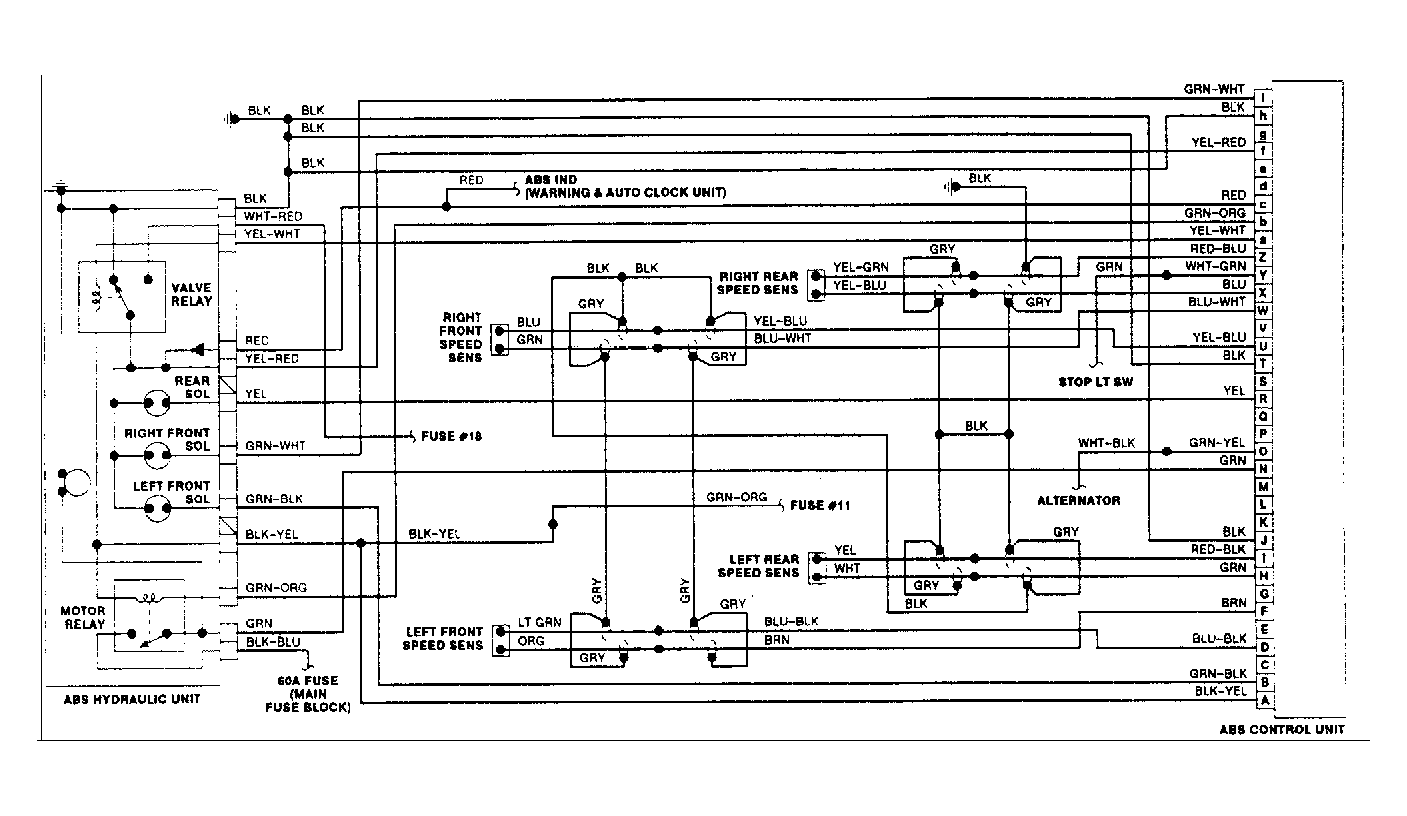

Fig 2: Anti-Lock Brake System Wiring Diagram (RX7)

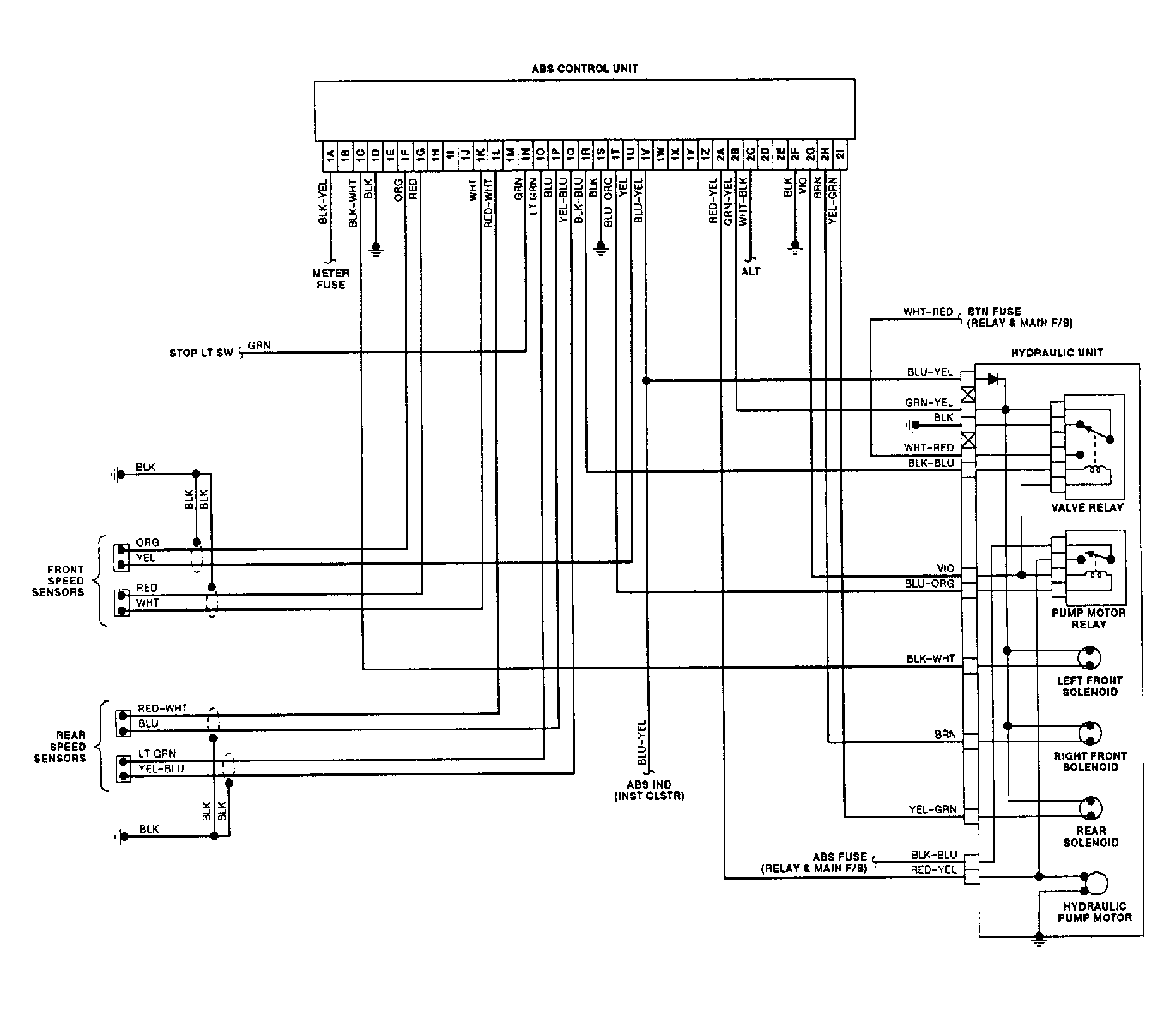

Fig 3: Anti-Lock Brake System Wiring Diagram (929)
