Engine Performance
›
Engine Controls - Pin Voltage Charts
›
DOHC Charts
DOHC Charts

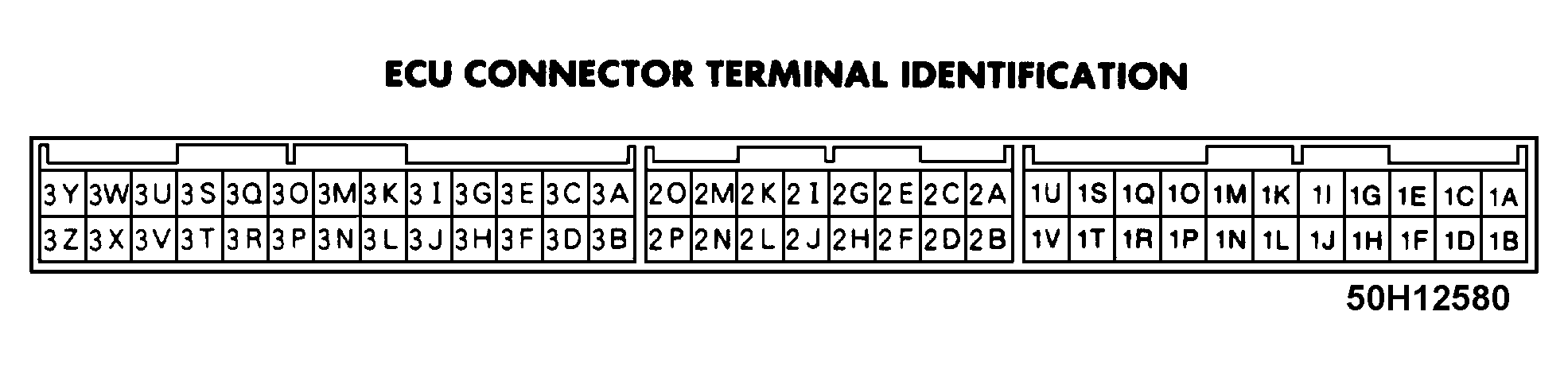

Fig 1: ECU Connector Terminal ID - DOHC
Courtesy of MAZDA MOTORS CORP.

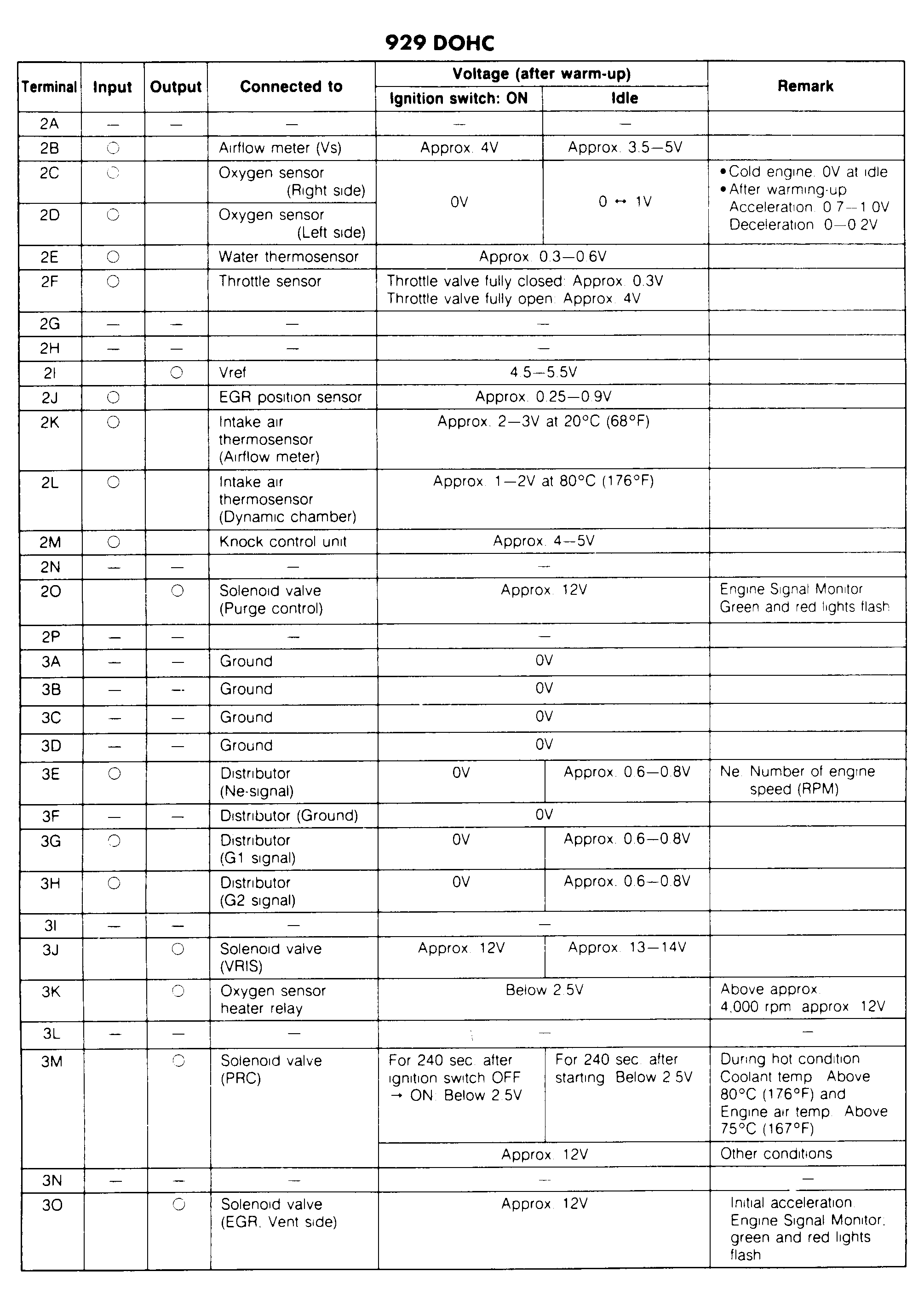

Fig 2: ECU Pin Voltage Chart - DOHC (1 of 3)
Courtesy of MAZDA MOTORS CORP.

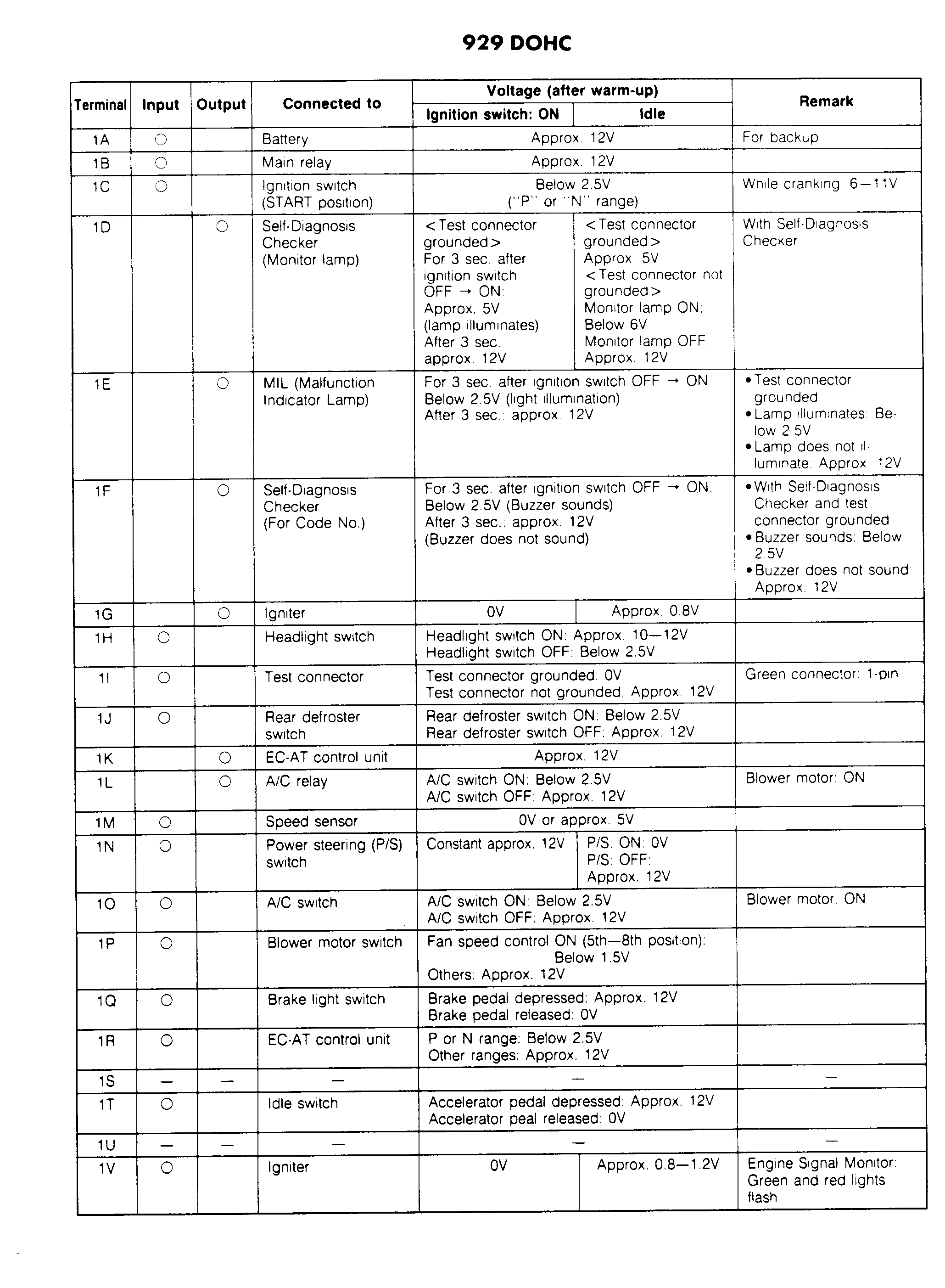

Fig 3: ECU Pin Voltage Chart - DOHC (2 of 3)
Courtesy of MAZDA MOTORS CORP.

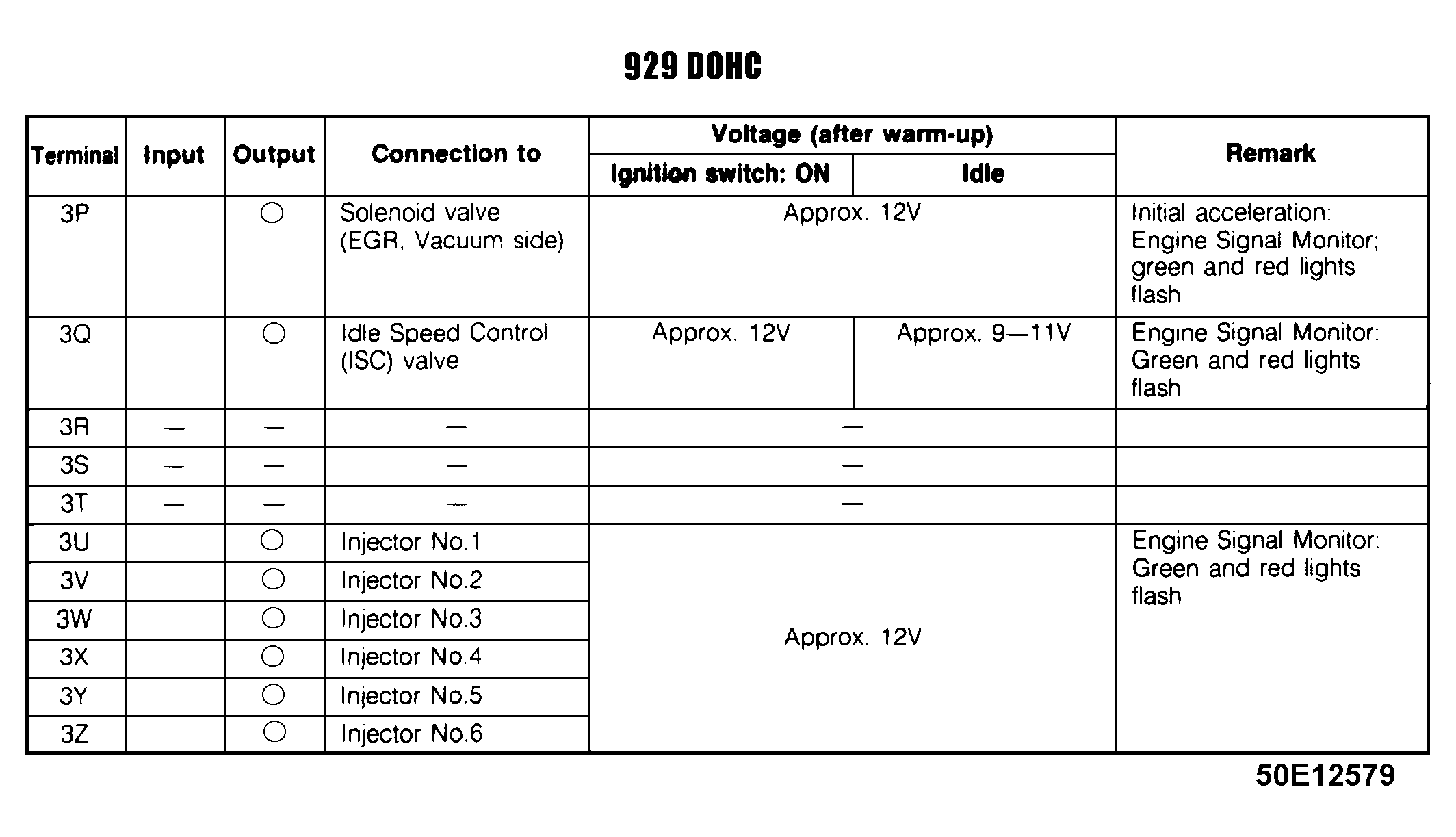

Fig 4: ECU Pin Voltage Chart - DOHC (3 of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
