Exhaust Gas RECIRCULATION (EGR) System: Notes

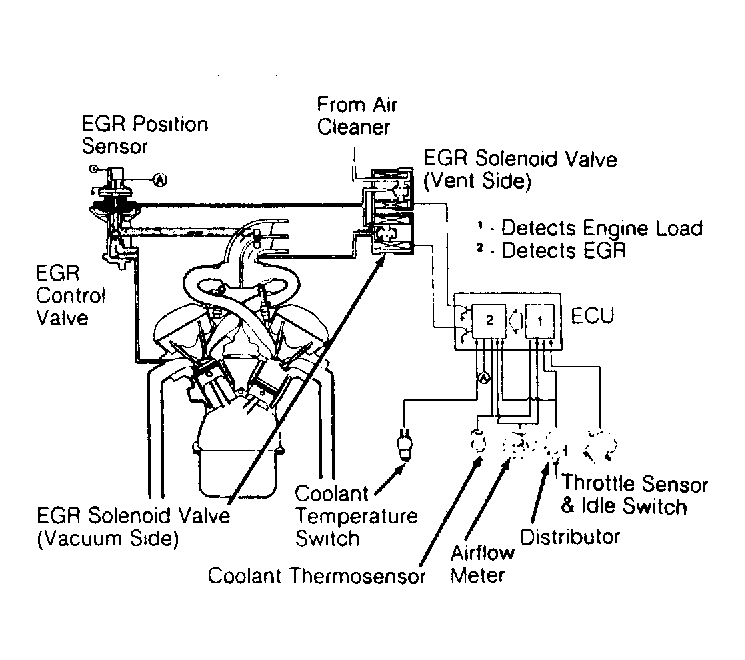

Fig 1: Identifying EGR System Components
G117795Courtesy of MAZDA MOTORS CORP.
