Code 9: DOHC Coolant THERMOSENSOR

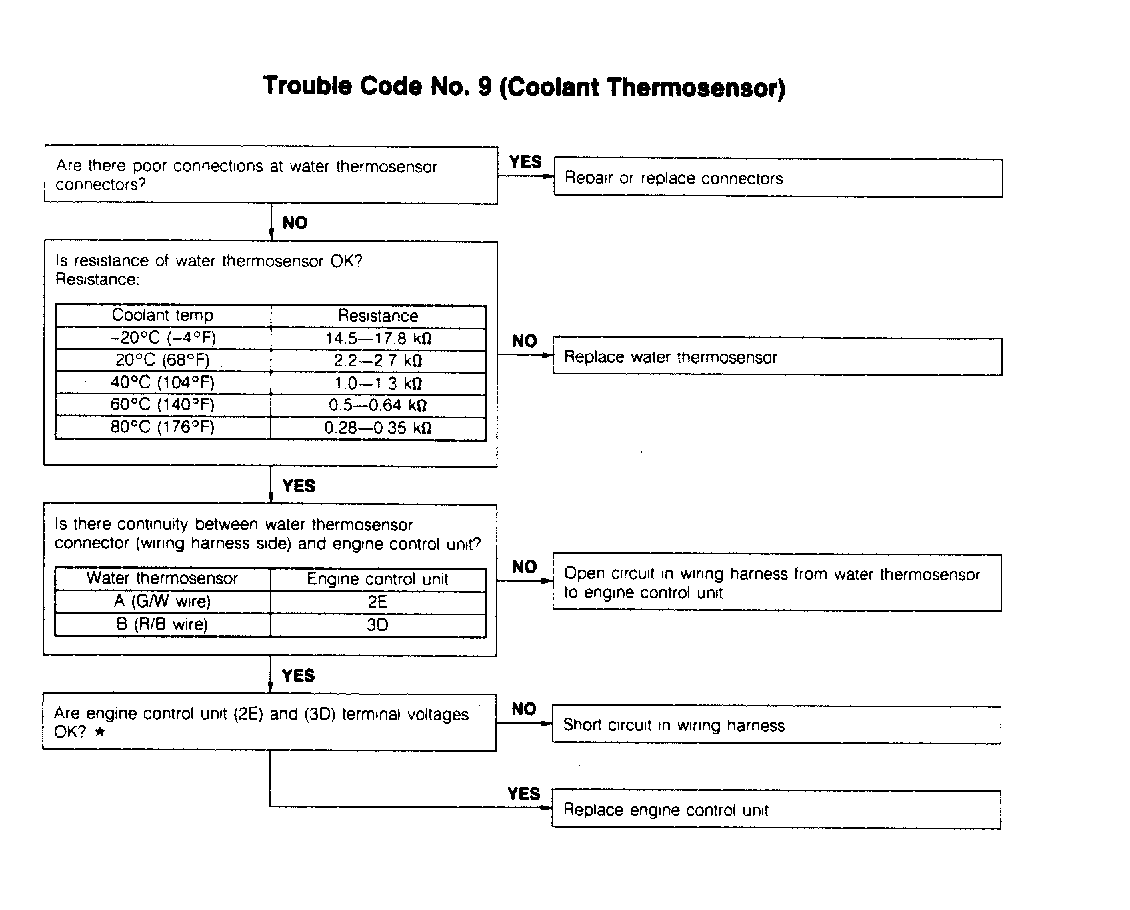

Fig 1: Code 9: Coolant Thermosensor Flow Chart
G90I21558Courtesy of MAZDA MOTORS CORP.
