Code 10: SOHC Intake Air THERMOSENSOR-Airflow Meter
Code 10: SOHC Intake Air THERMOSENSOR-Airflow Meter

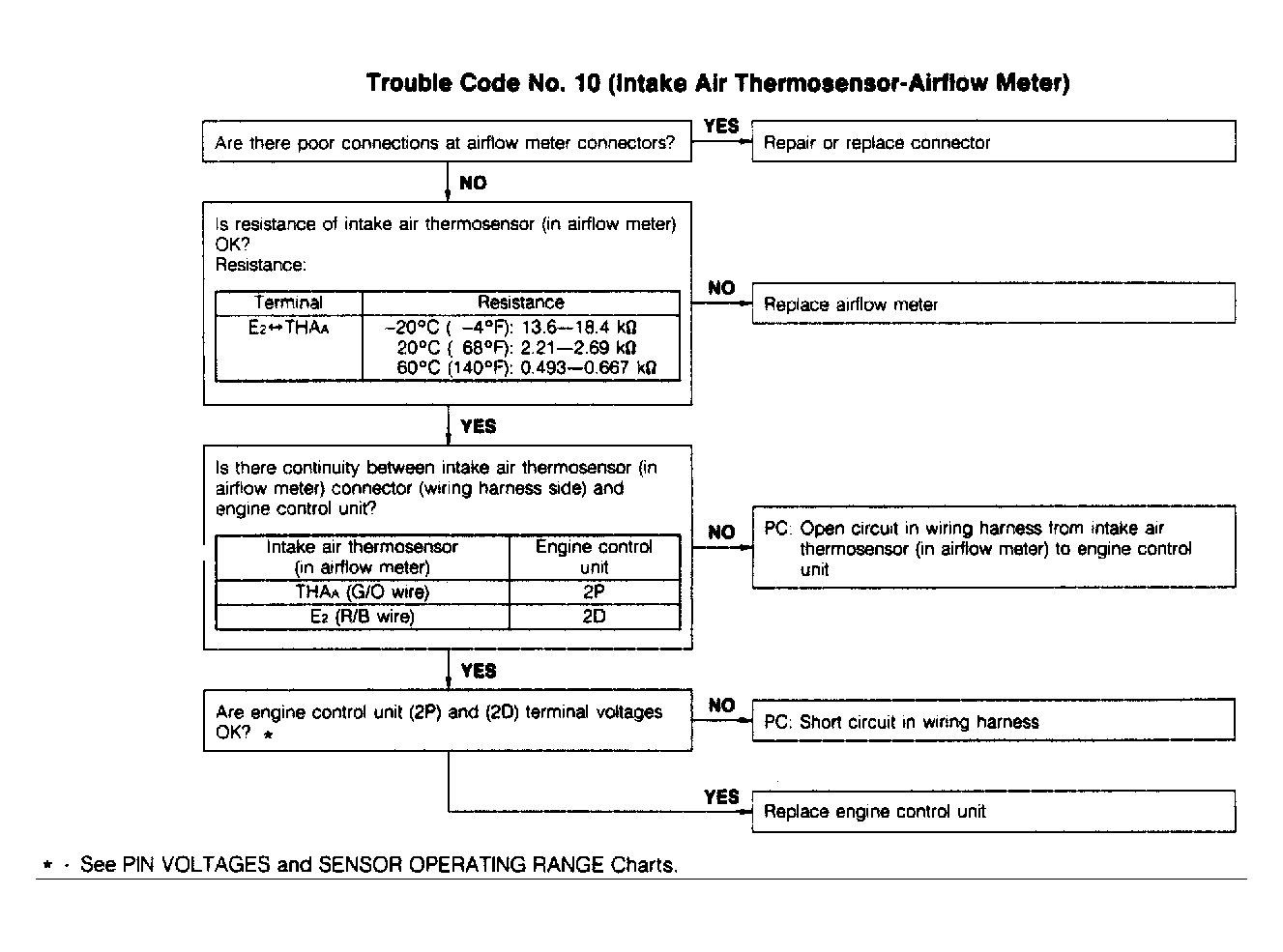

Fig 1: Code 10: Intake Air Thermosensor-Airflow Meter Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
