Code 28: SOHC EGR Vacuum Solenoid Valve

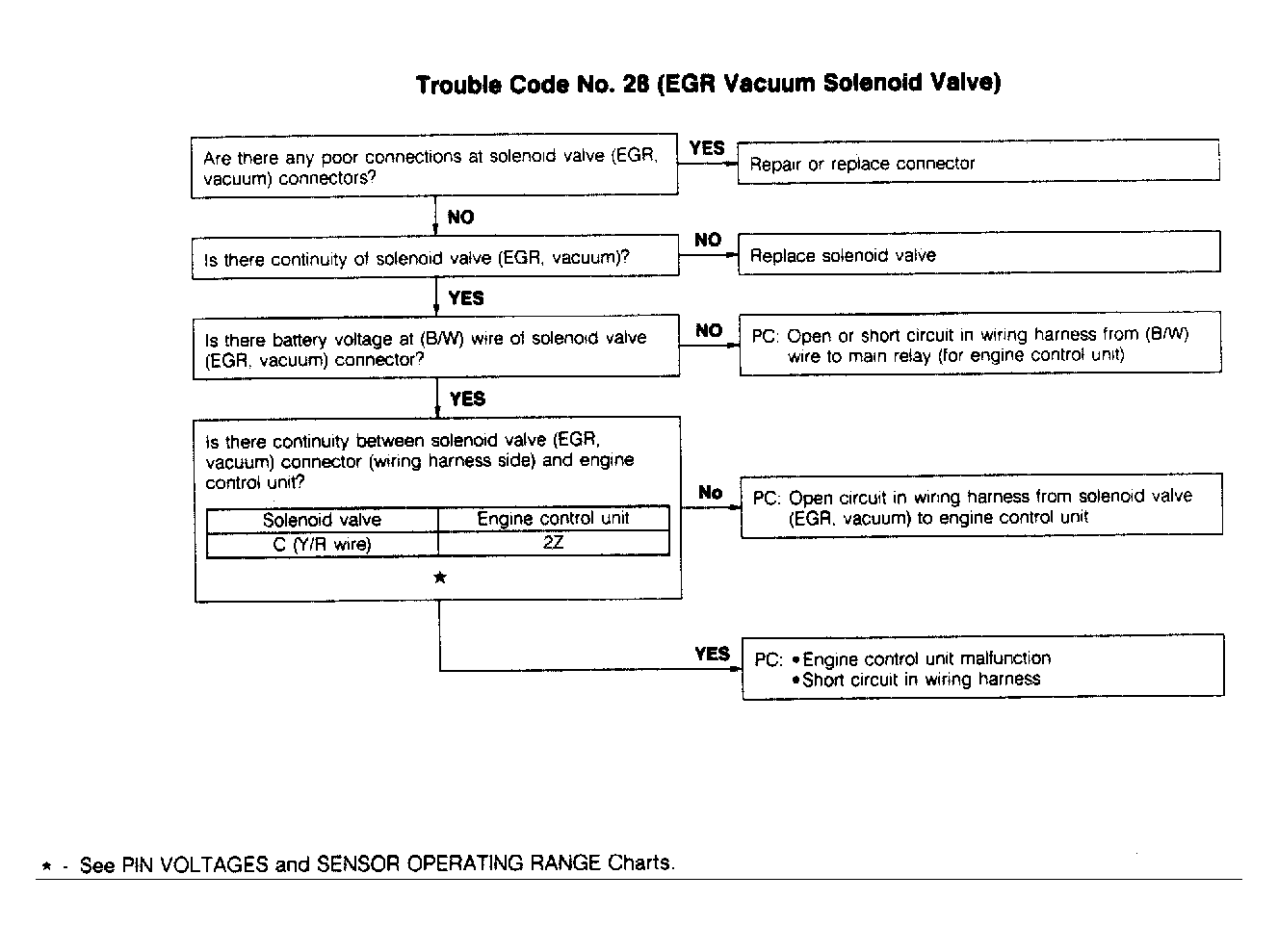

Fig 1: Code 28: EGR Vacuum Solenoid Valve Flow Chart
G90B21536Courtesy of MAZDA MOTORS CORP.
