Code 3: SOHC G1 Signal-Distributor

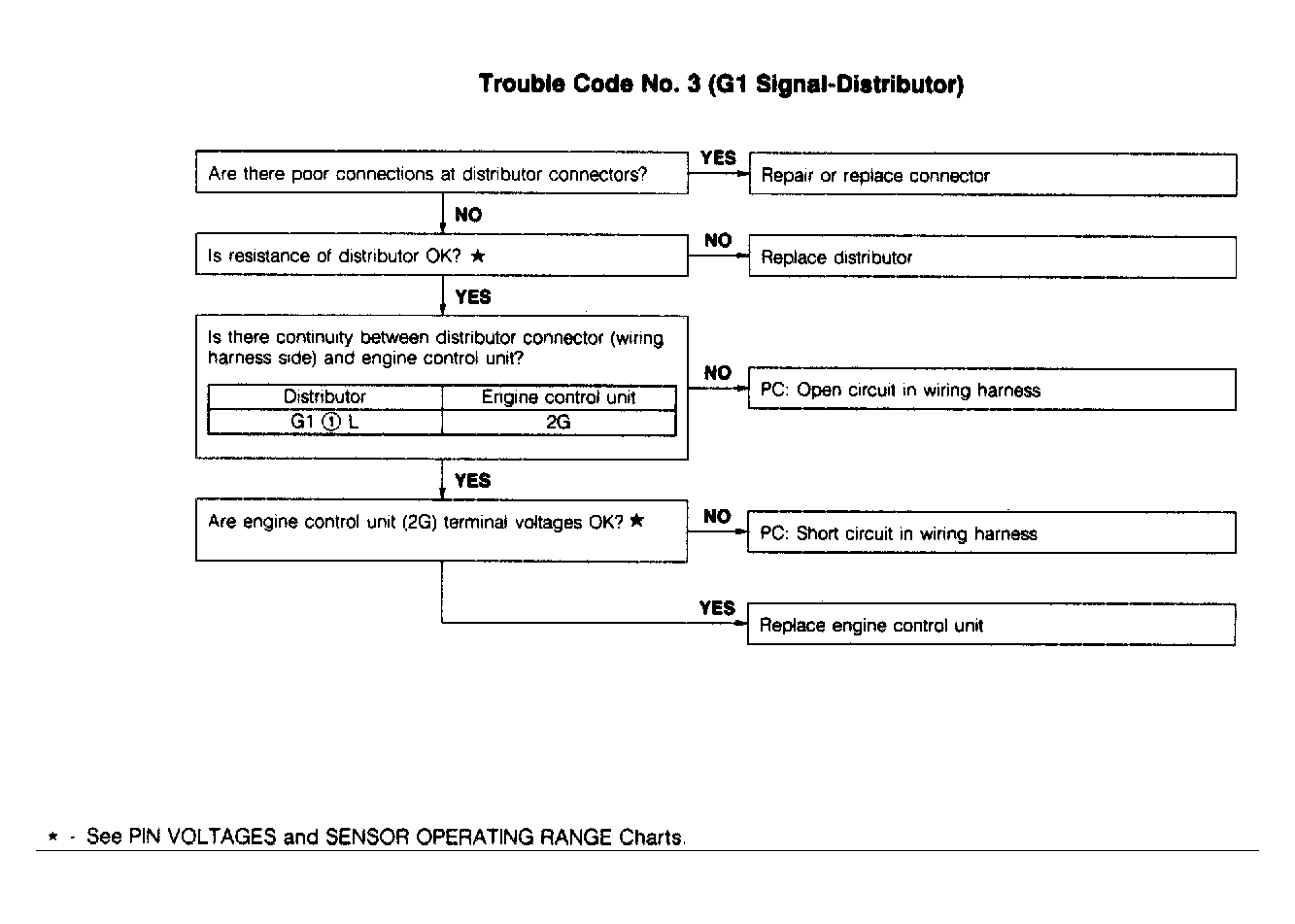

Fig 1: Code 3: G1 Signal-Distributor Flow Chart
G90G21523Courtesy of MAZDA MOTORS CORP.
