Engine Controls - Tests W/Codes
›
SOHC Code Identification Charts
›
Code 41: SOHC Variable Resonance Induction Solenoid Valve
Code 41: SOHC Variable Resonance Induction Solenoid Valve

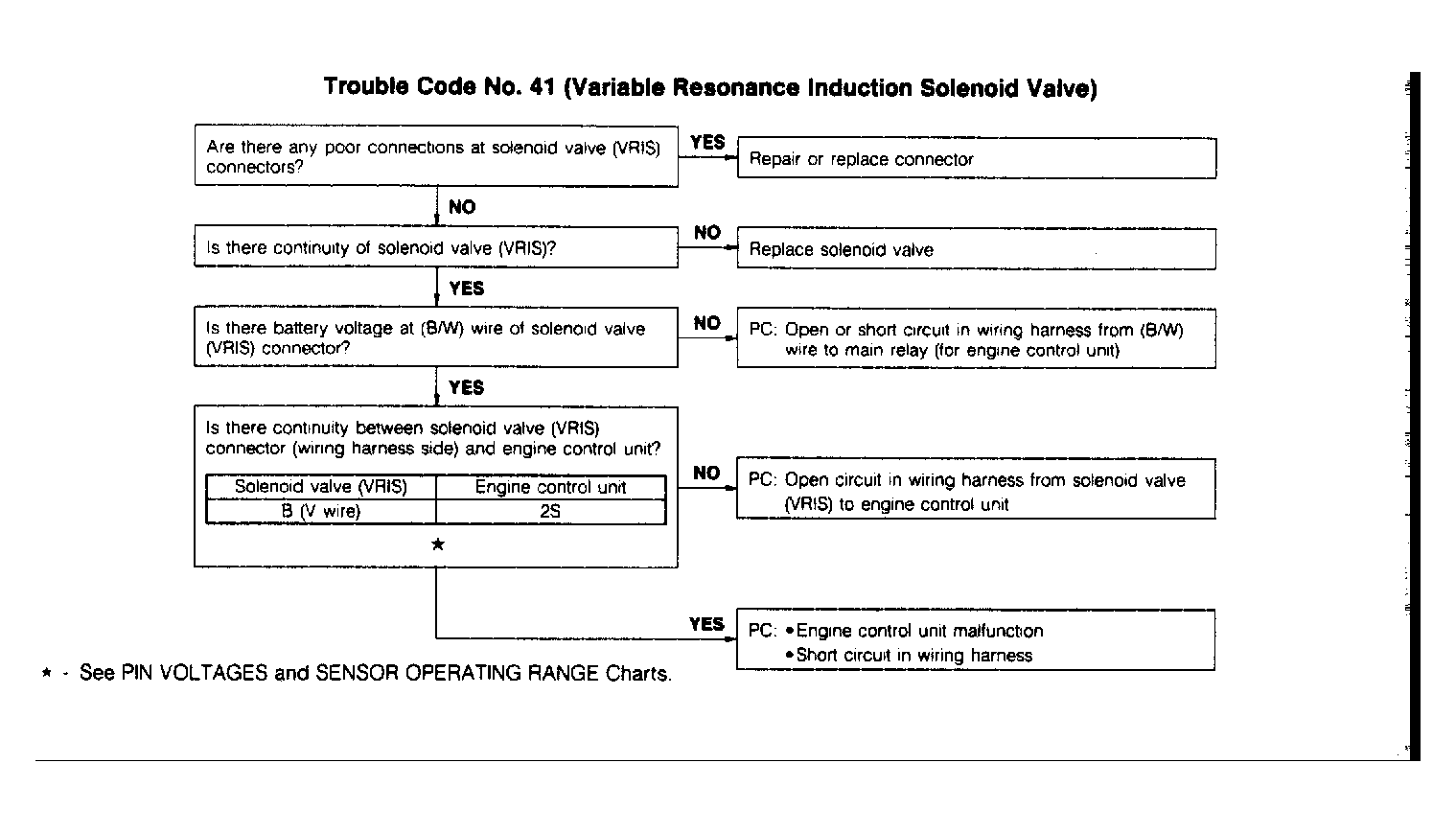

Fig 1: Code 41: Variable Resonance Induction System Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
