Code 8: SOHC Airflow Meter
Code 8: SOHC Airflow Meter

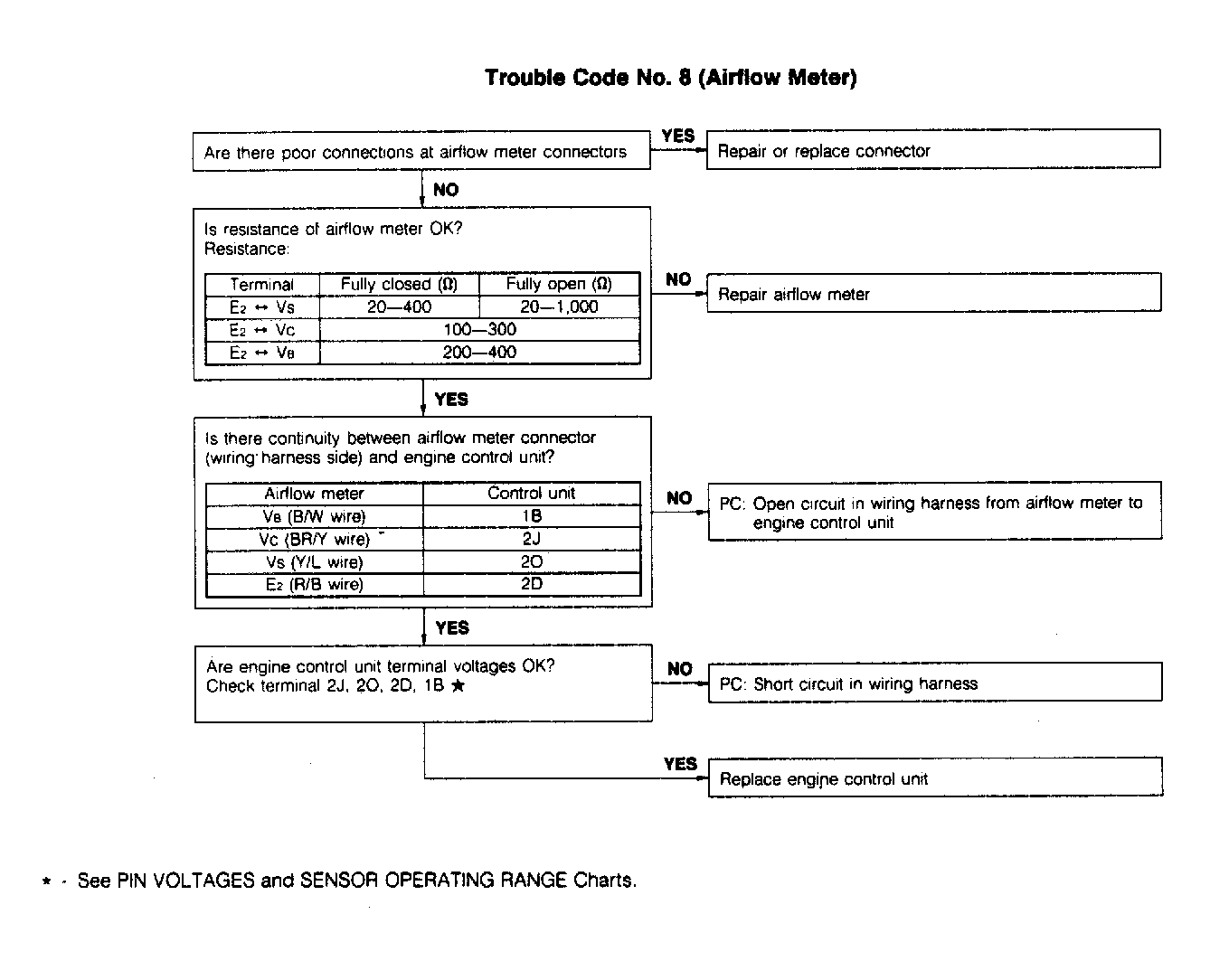

Fig 1: Code 8: Airflow Meter Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
