Home › Mazda › 1990 › 929 Base › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › SOHC Code Identification Charts › Code 9: SOHC Coolant THERMOSENSOR

Code 9: SOHC Coolant THERMOSENSOR

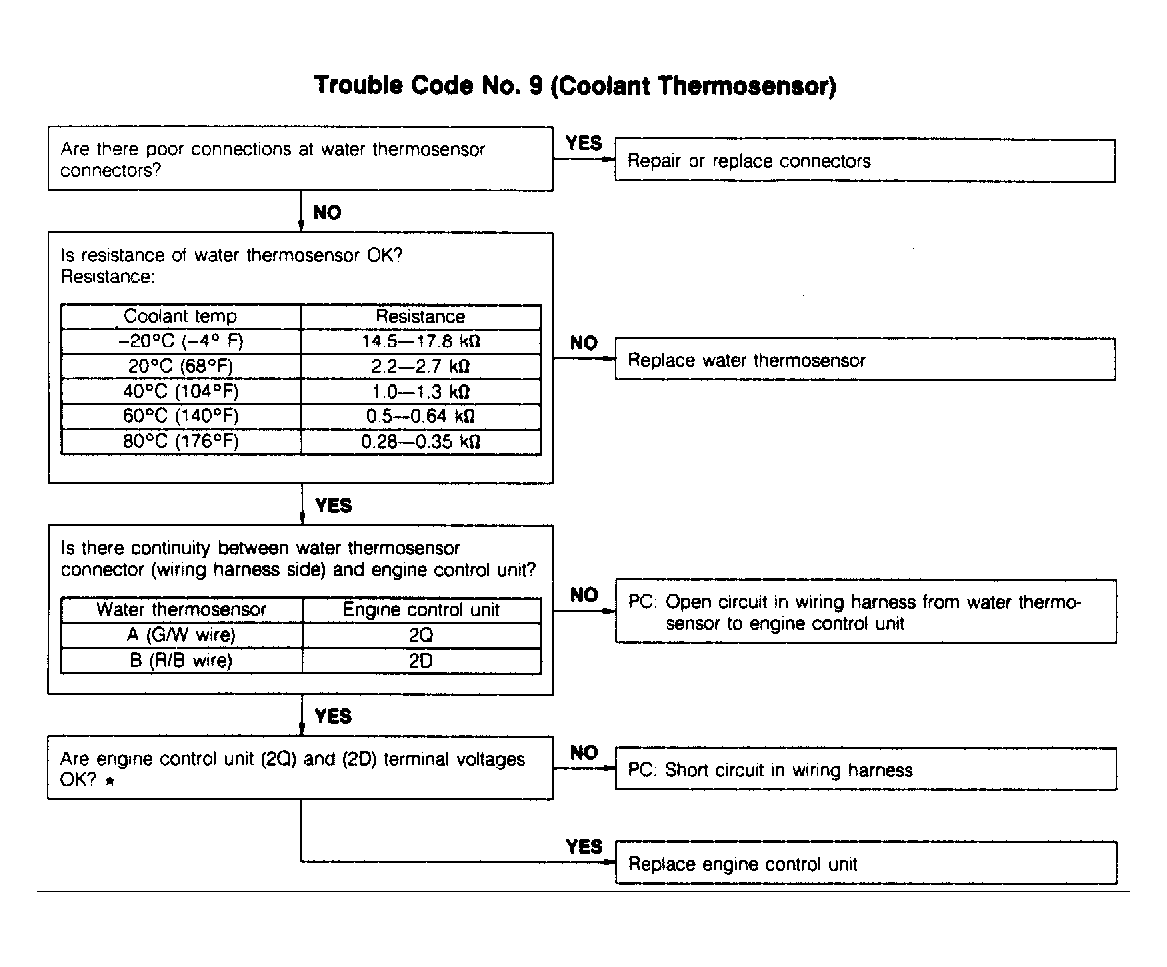

Fig 1: Code 9: Coolant Thermosensor Flow Chart
G90J21526Courtesy of MAZDA MOTORS CORP.
