Feedback Carburetor (B2200)

The Feedback Carburetor (FBC) computerized engine control system monitors various engine/vehicle functions to control engine operation and lower emissions while maintaining fuel economy and driveability.

Fig 1: Cross-Sectional View of Triple Induction Control System (929)

Courtesy of MAZDA MOTORS CORP.

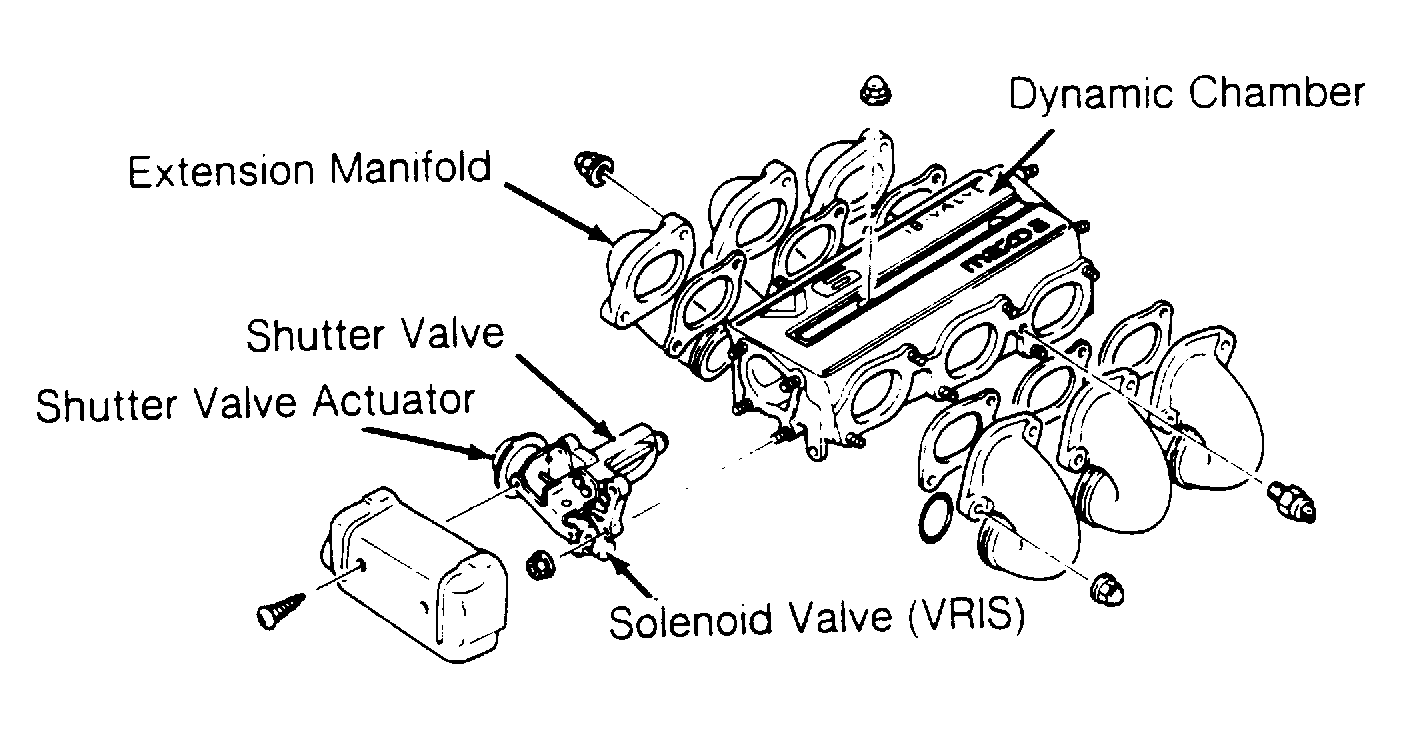

Fig 2: Identifying Variable Resonance Induction System (3.0L)

Courtesy of MAZDA MOTORS CORP.
