Shift Speed Charts

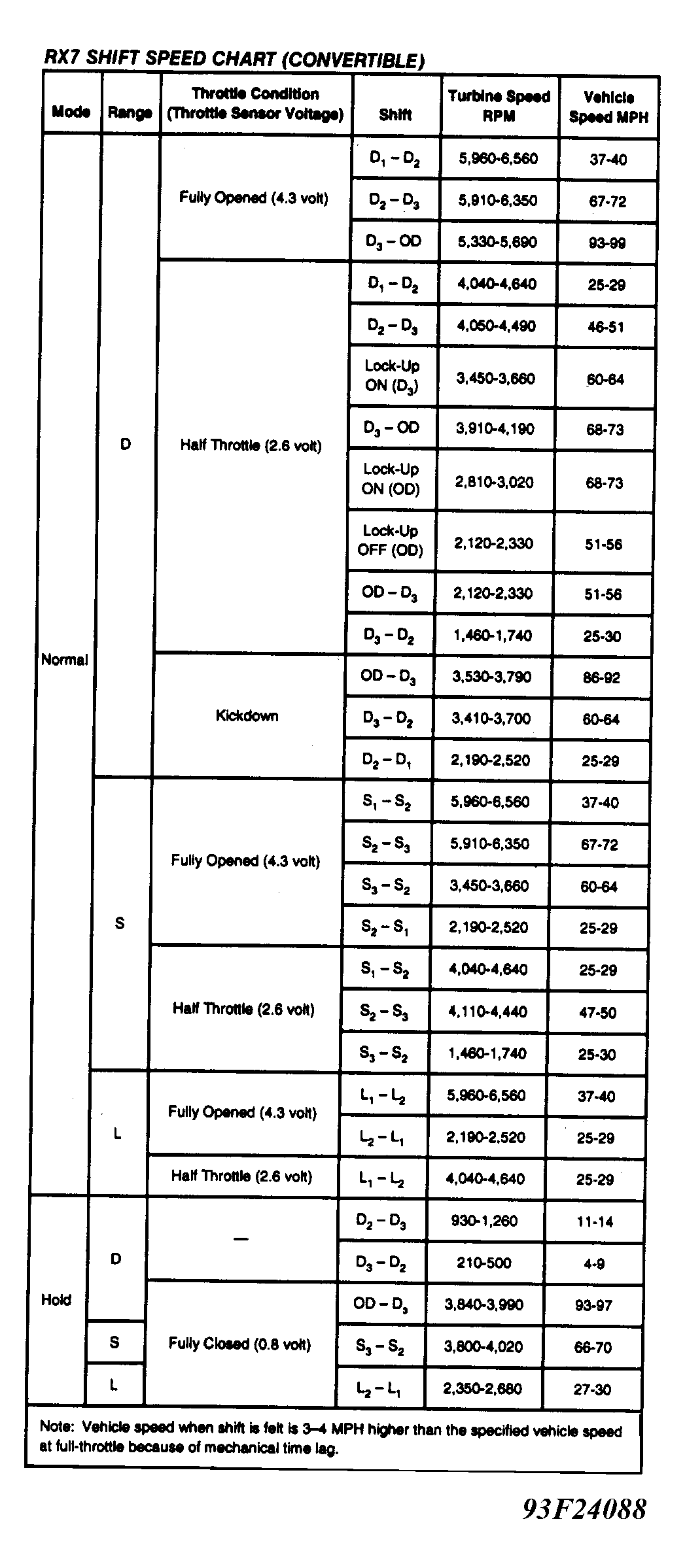

Fig 1: Shift Speed Chart - RX7 Convertible
Courtesy of MAZDA MOTORS CORP.

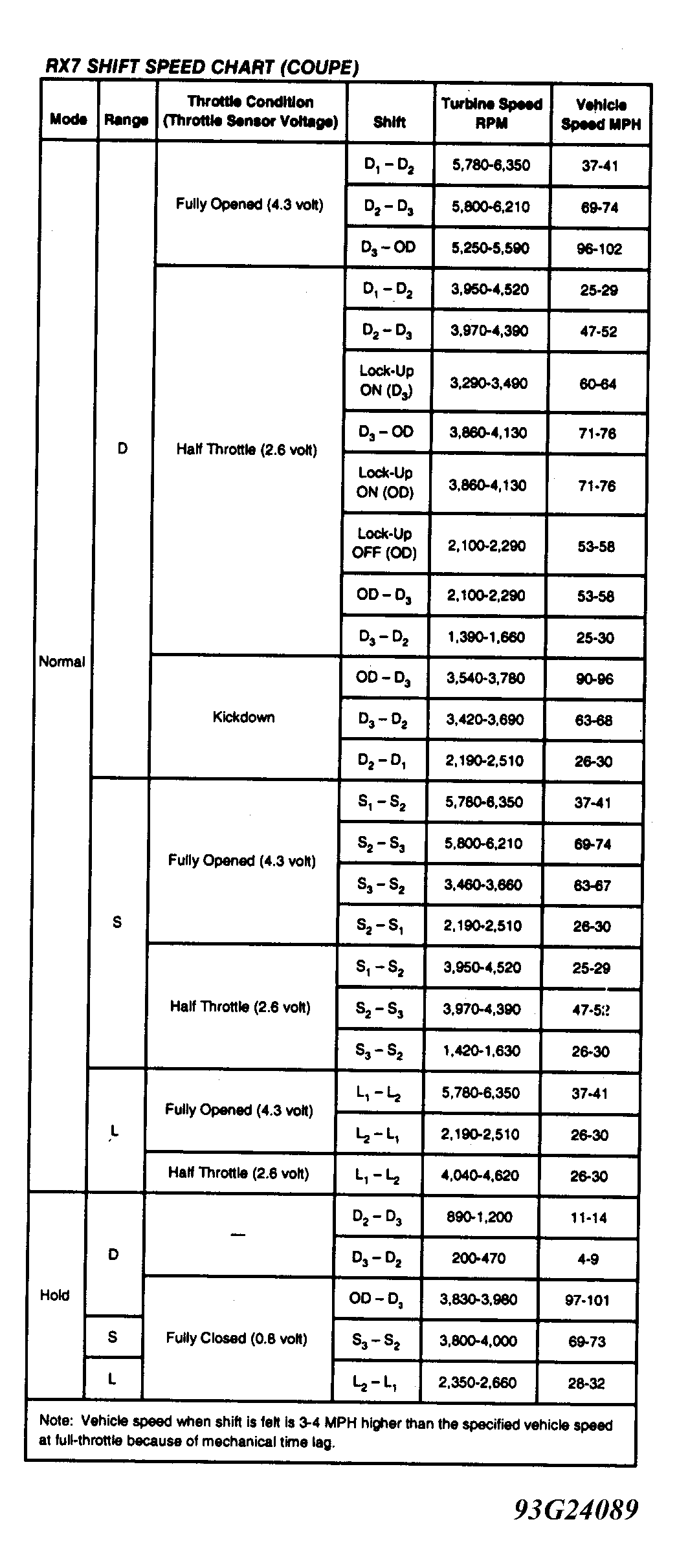

Fig 2: Shift Speed Chart - RX7 Coupe
Courtesy of MAZDA MOTORS CORP.

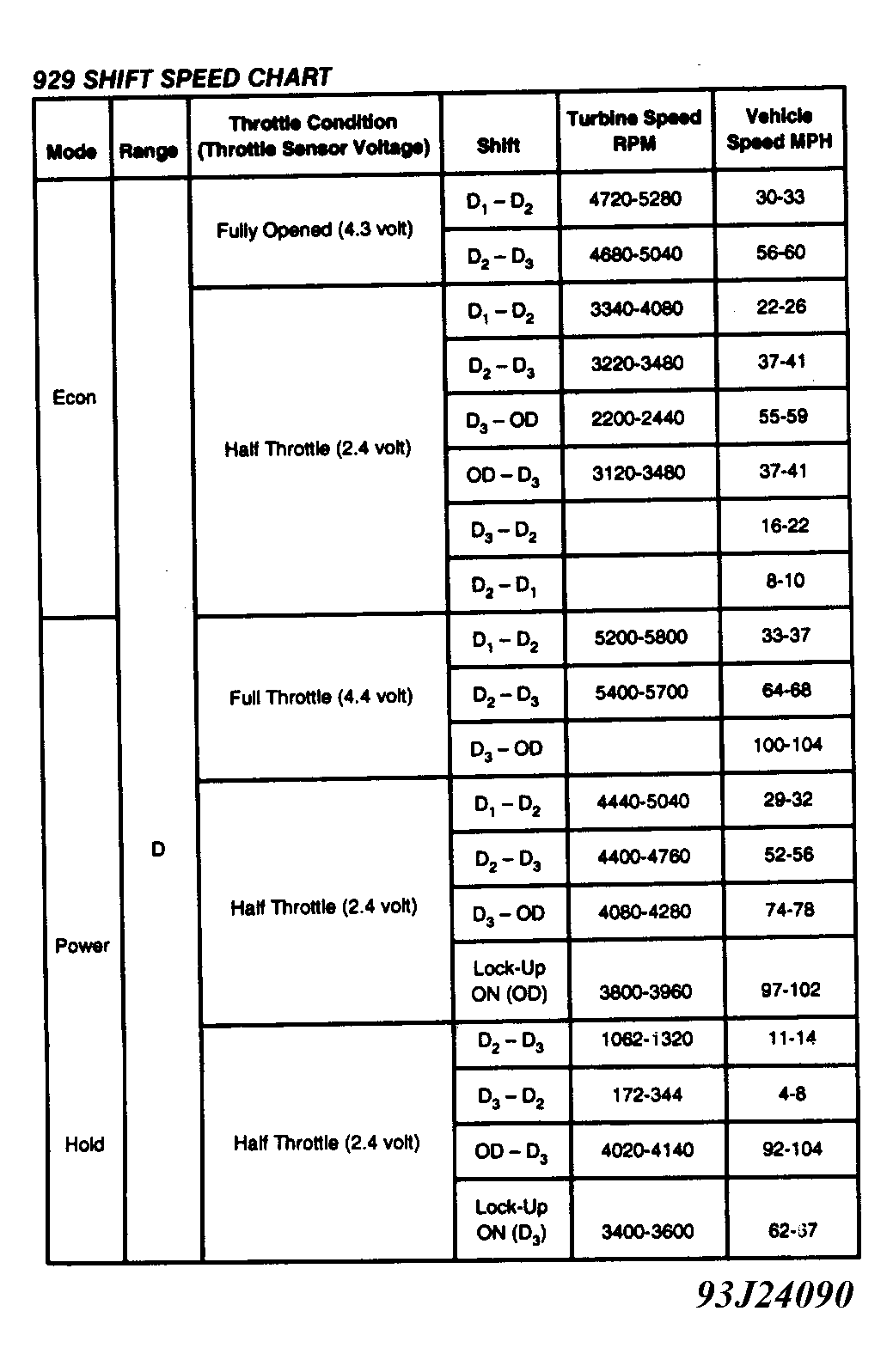

Fig 3: Shift Speed Chart - 929
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
