Trouble Code Charts
Trouble Code Charts

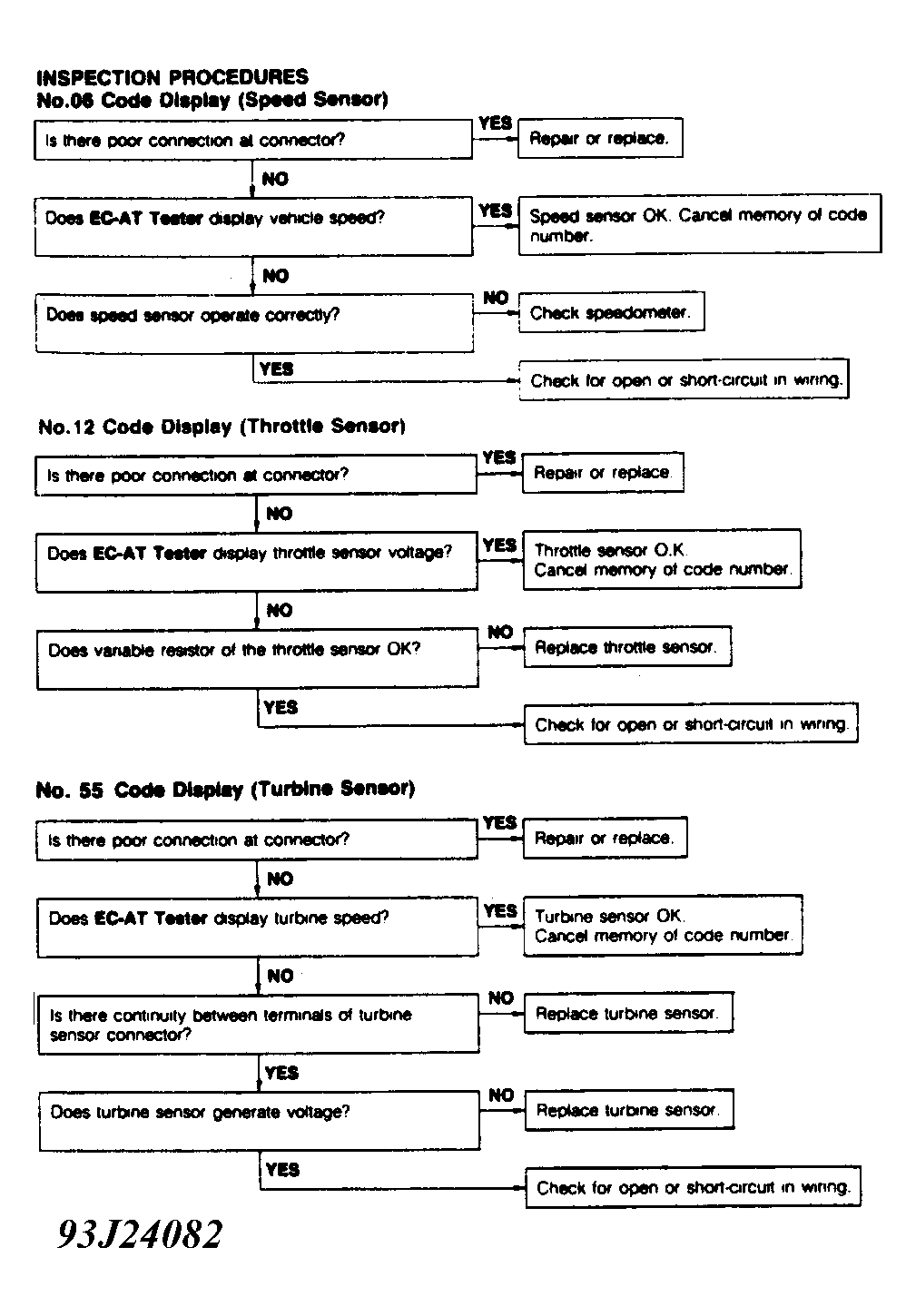

Fig 1: Trouble Code Charts - RX7 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

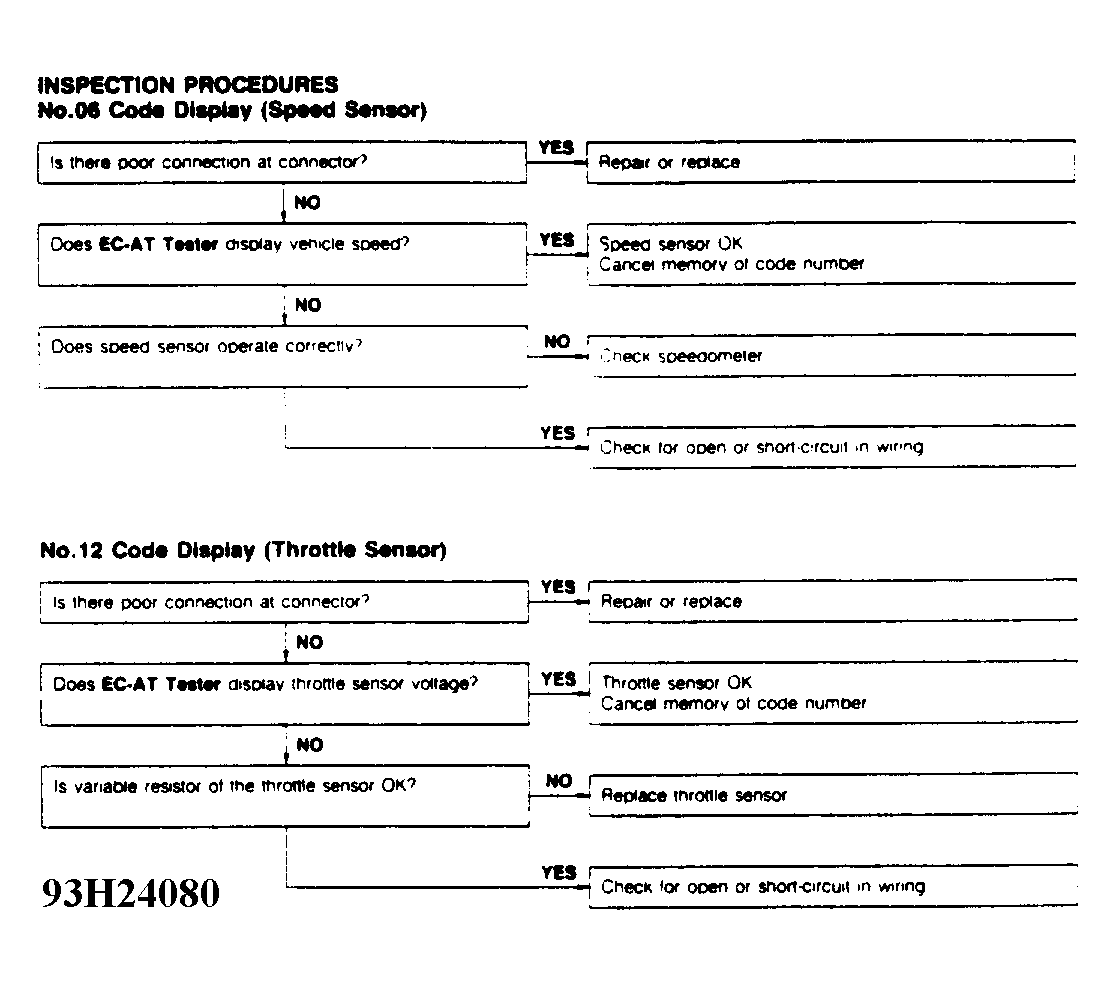

Fig 2: Trouble Code Charts - RX7 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

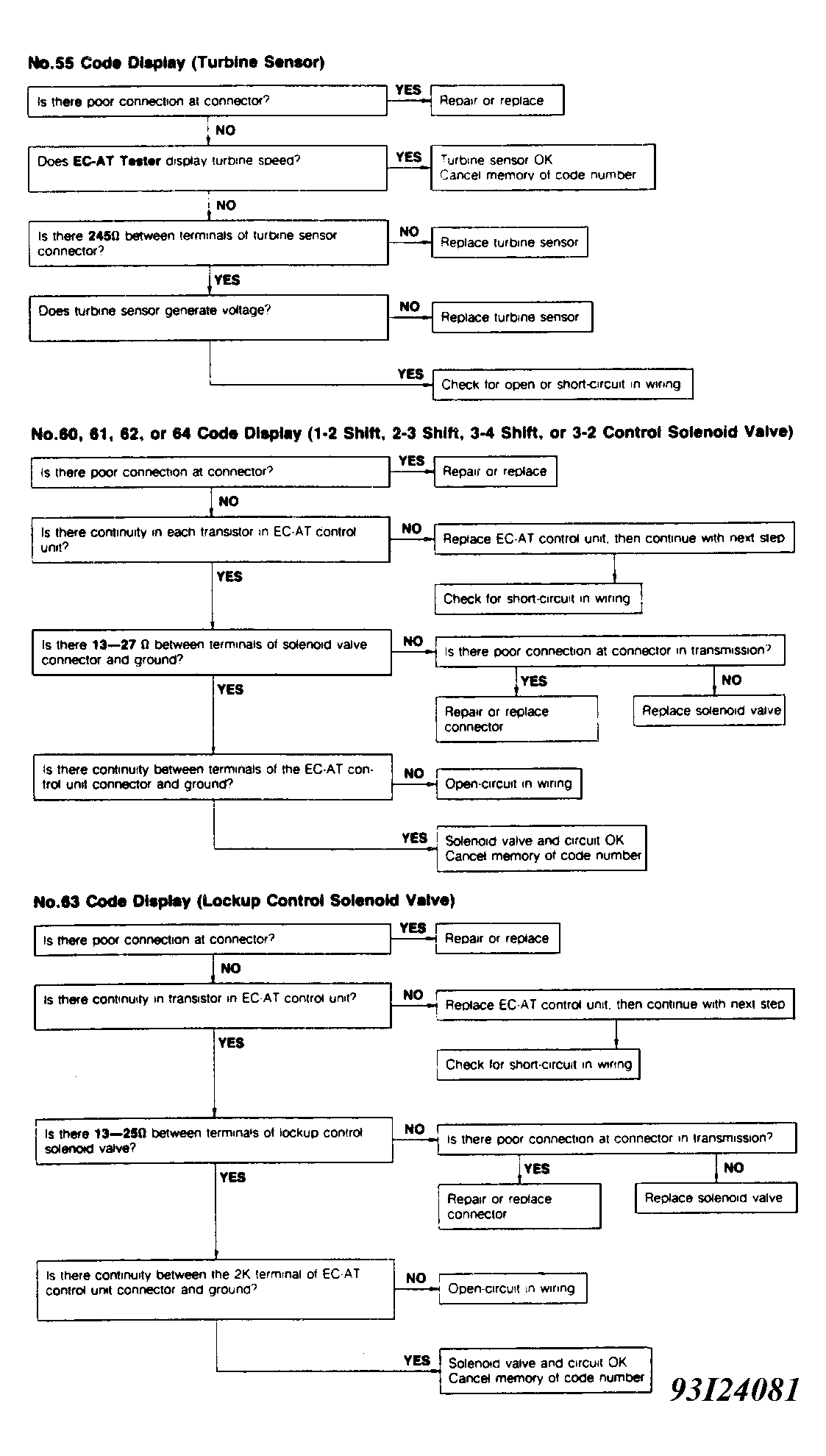

Fig 3: Trouble Code Charts - 929 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

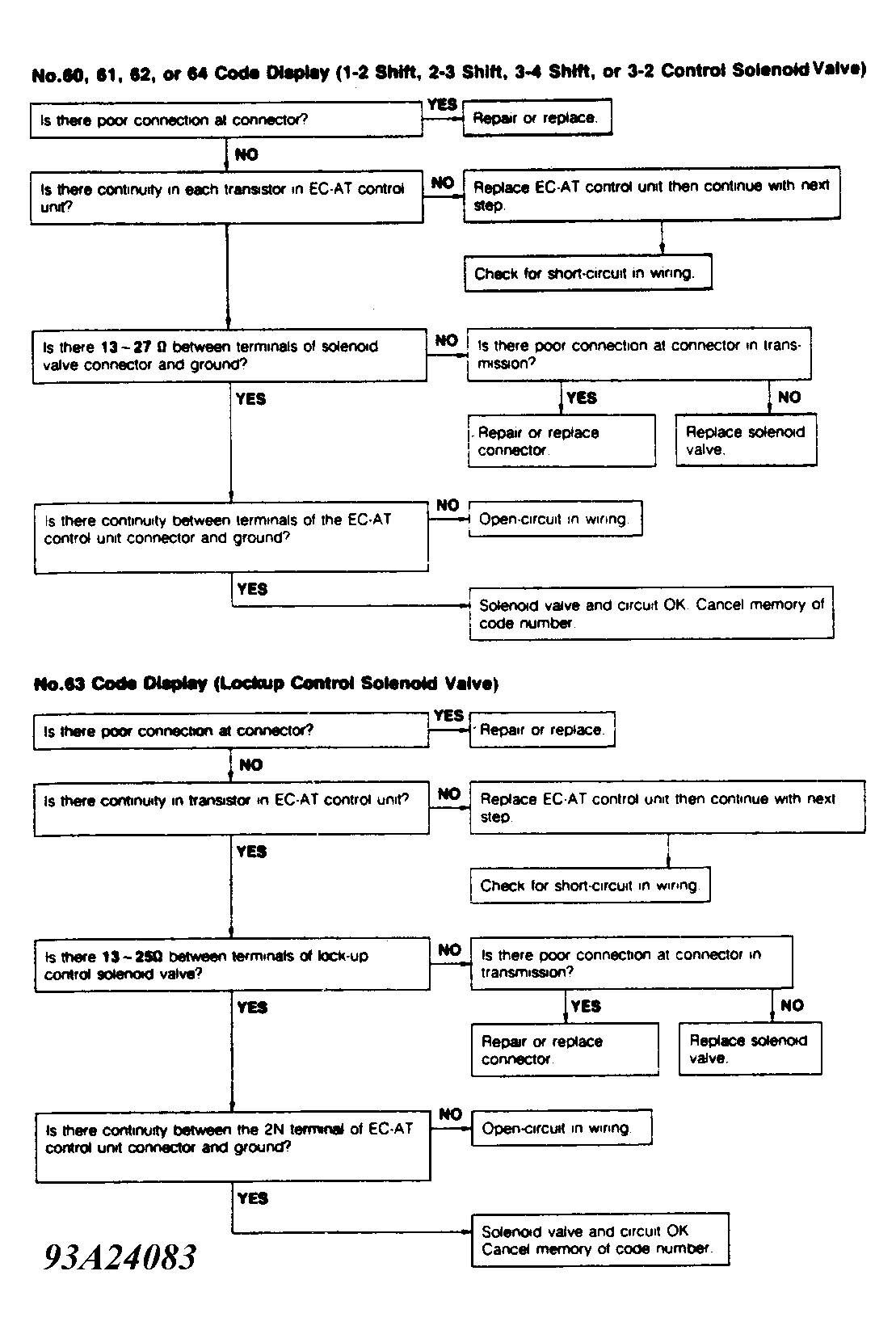

Fig 4: Trouble Code Charts - 929 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
