Code 25: DOHC Pressure Regulator Control Solenoid Valve
Code 25: DOHC Pressure Regulator Control Solenoid Valve

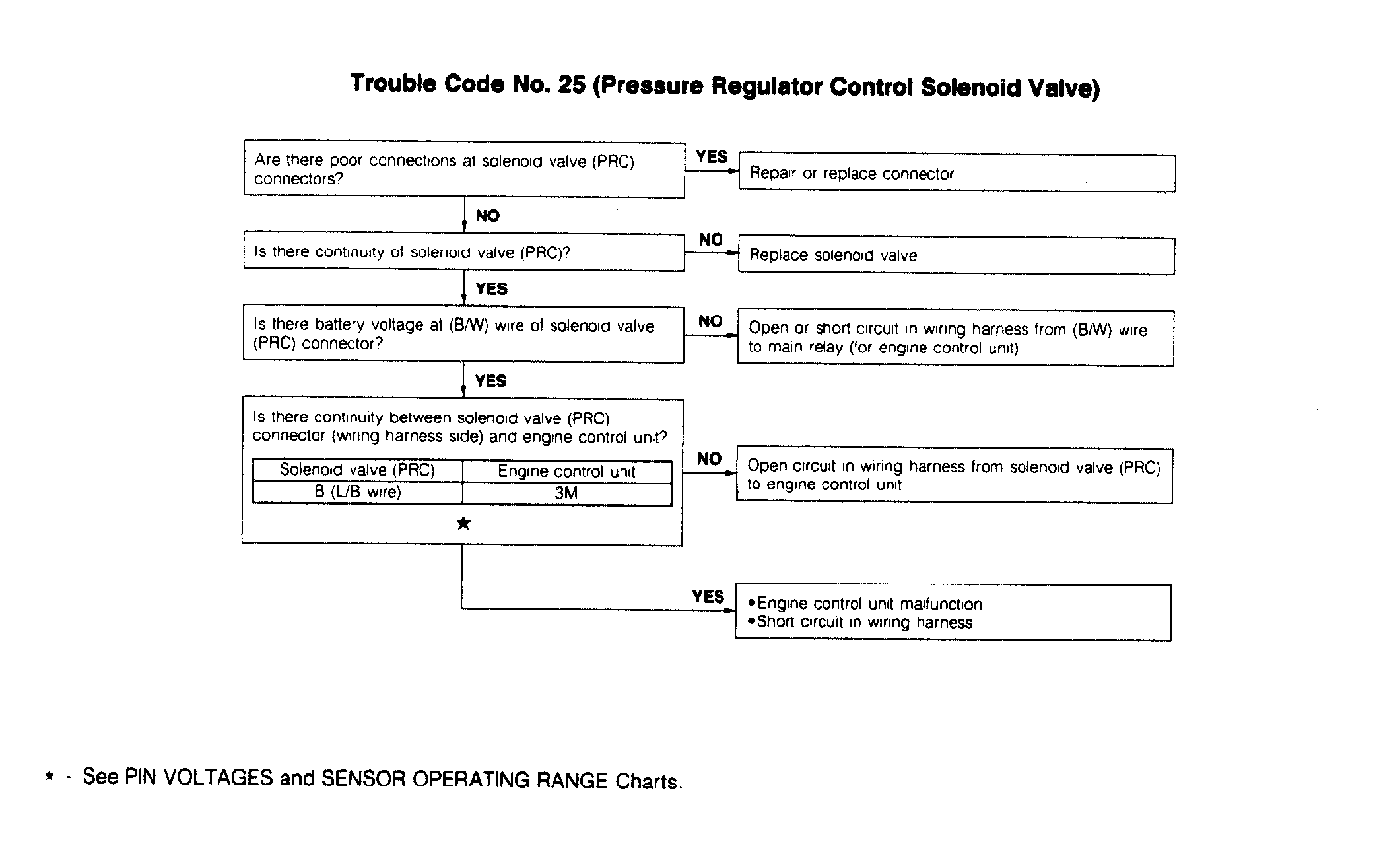

Fig 1: Code 25: Pressure Regulator Control Solenoid Valve Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
