Evaporative Emission Control: Notes

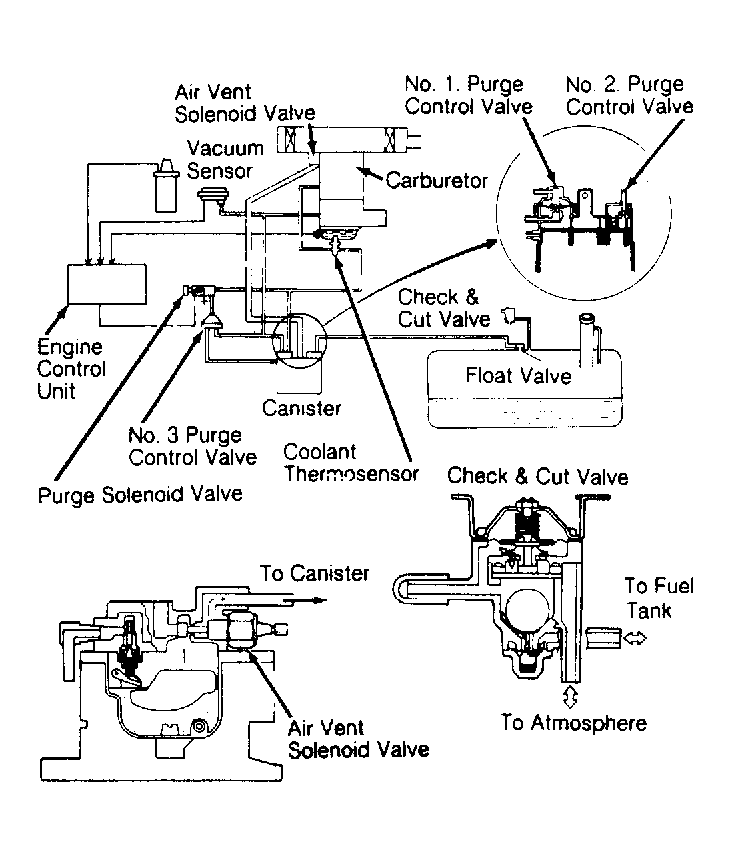

Fig 1: Identifying Evaporative Emission Control System
G117749Courtesy of MAZDA MOTORS CORP.
