Code 16: EGR Position Sensor

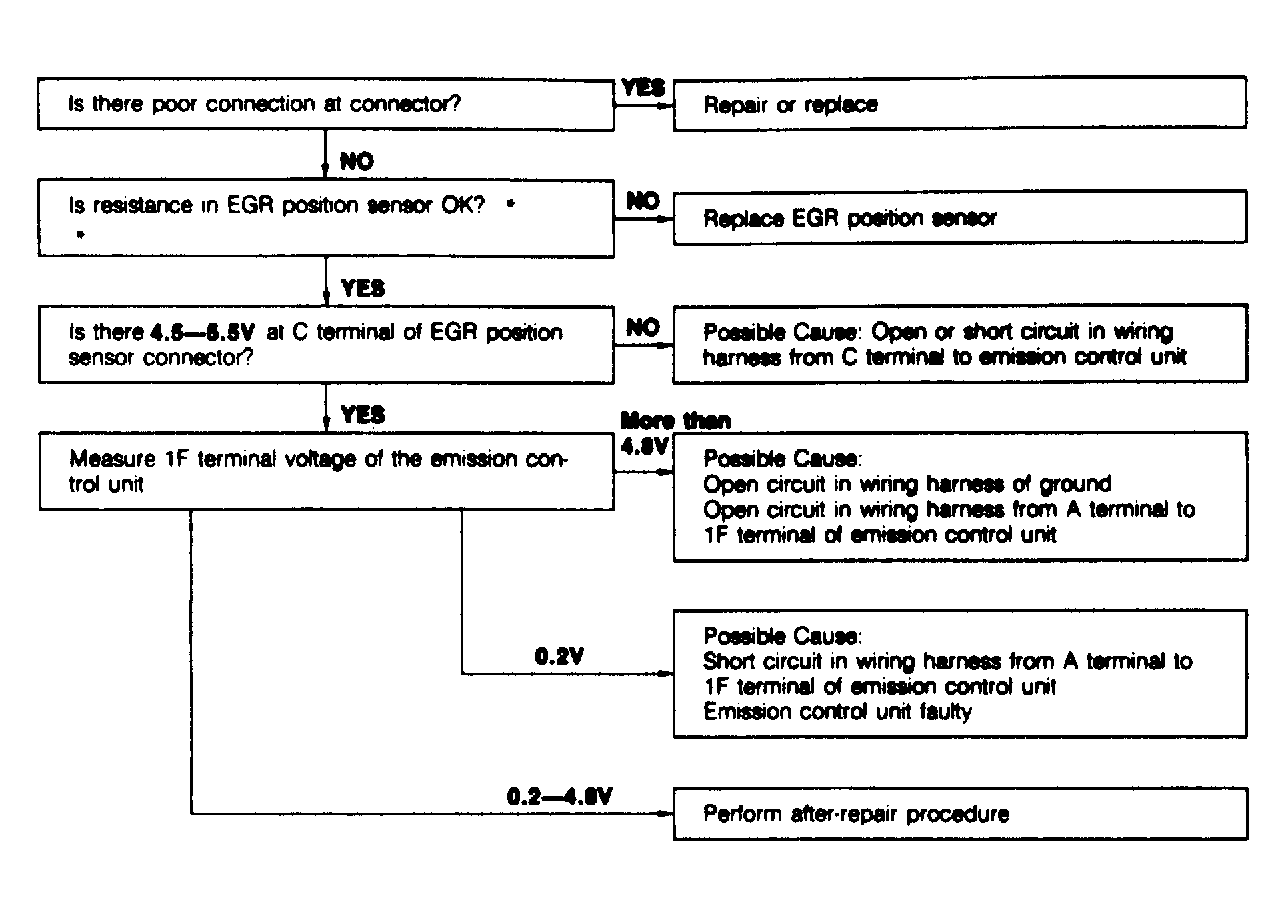

Fig 1: Code 16: EGR Position Sensor Flow Chart
G117640Courtesy of MAZDA MOTORS CORP.
