B2200 Trouble Code Id Charts: Notes

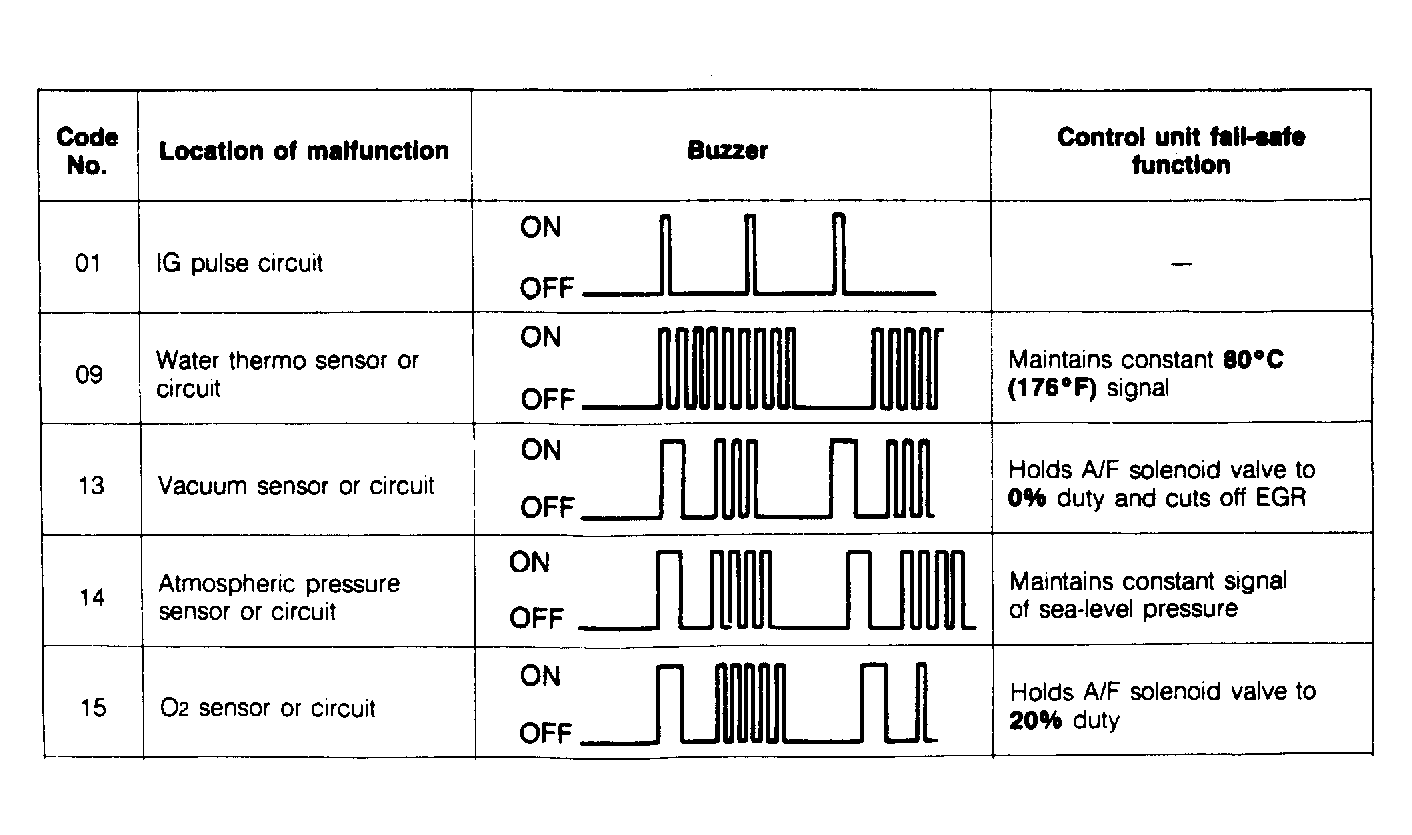

Fig 1: Codes 01 Thru 15 Identification
G117633Courtesy of MAZDA MOTORS CORP.
Fig 2: Codes 16 Thru 45 Identification
G117634Courtesy of MAZDA MOTORS CORP.
