Code Charts: Notes

Refer to the Trouble Code Identification table below and to Figs. 2 and 3 for definitions.

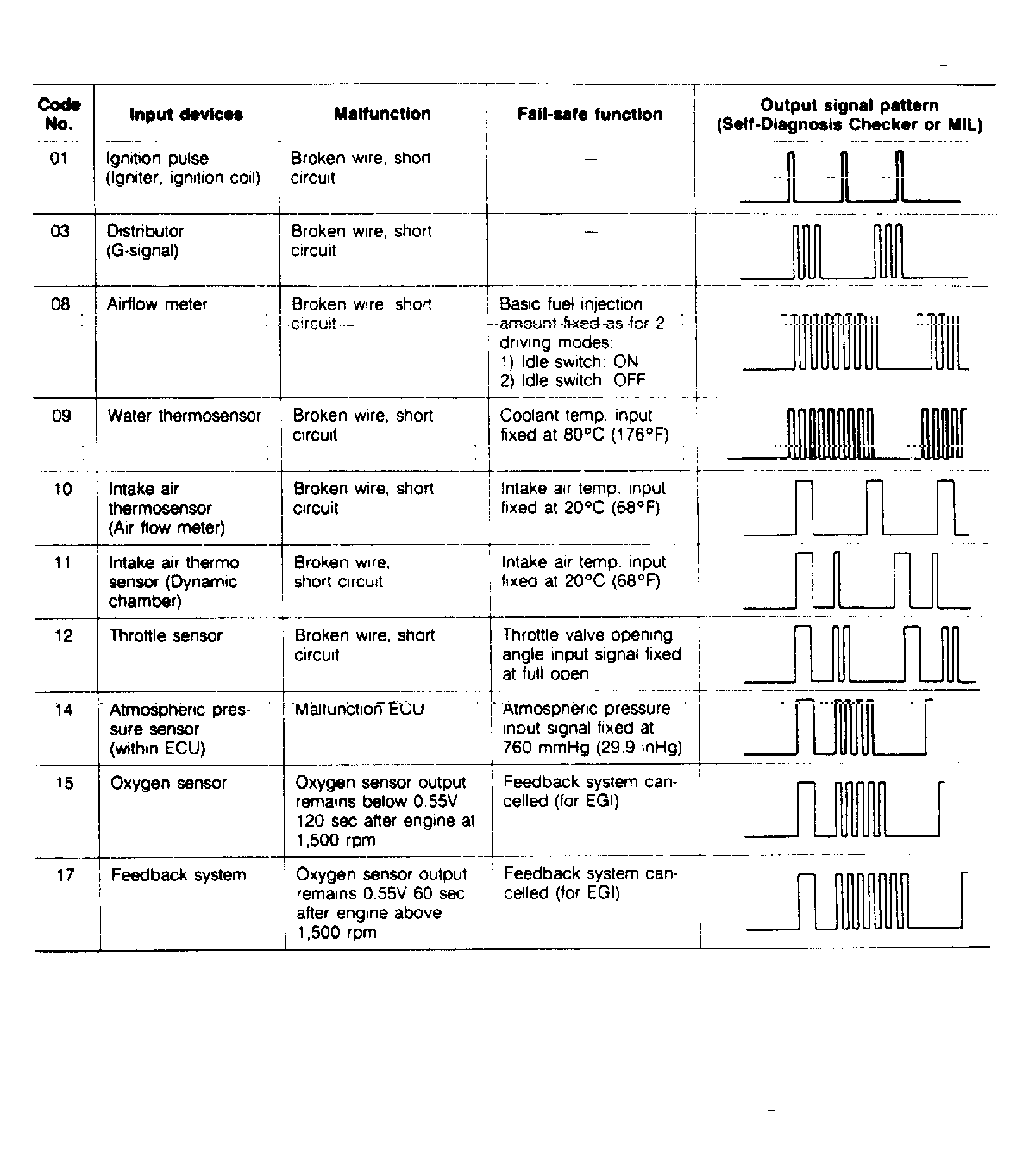

Fig 1: MPV 3.0L Trouble Code Identification (1 of 2)

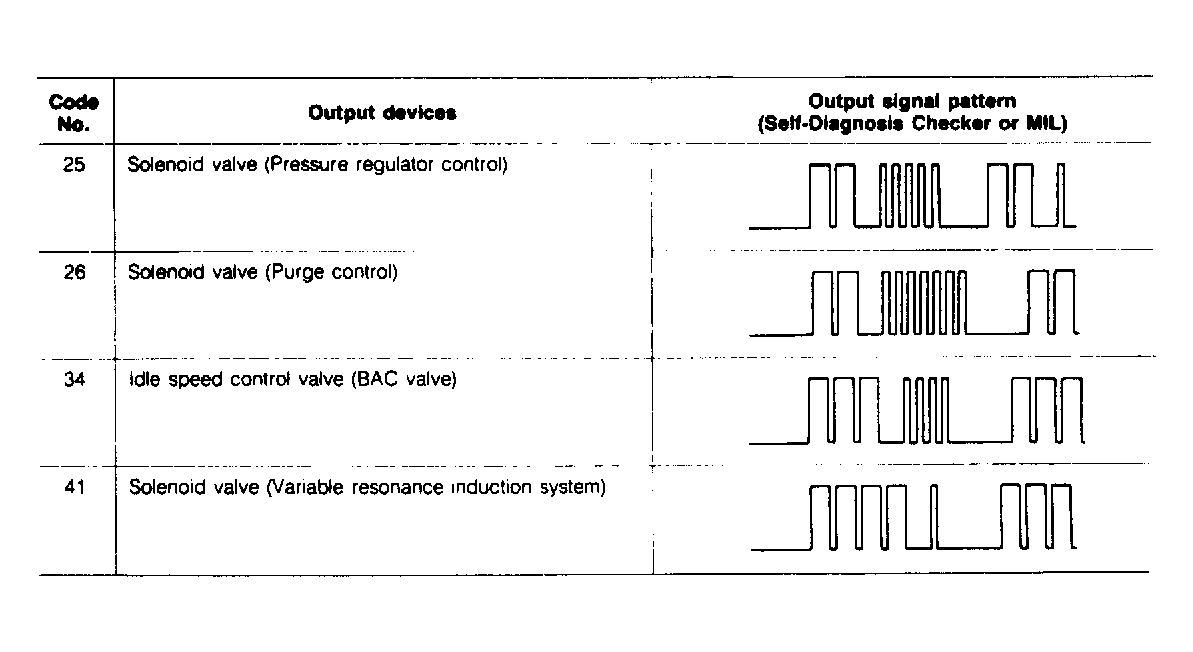

Fig 2: MPV 3.0L Trouble Code Identification (2 of 2)
