Power Windows Master Switch

1. Check for continuity between terminals of the switch with an ohmmeter as specified. See POWER WINDOWS MASTER SWITCH  under REMOVAL & INSTALLATION. See Fig 1 .
2. If continuity is not as specified, replace the switch.

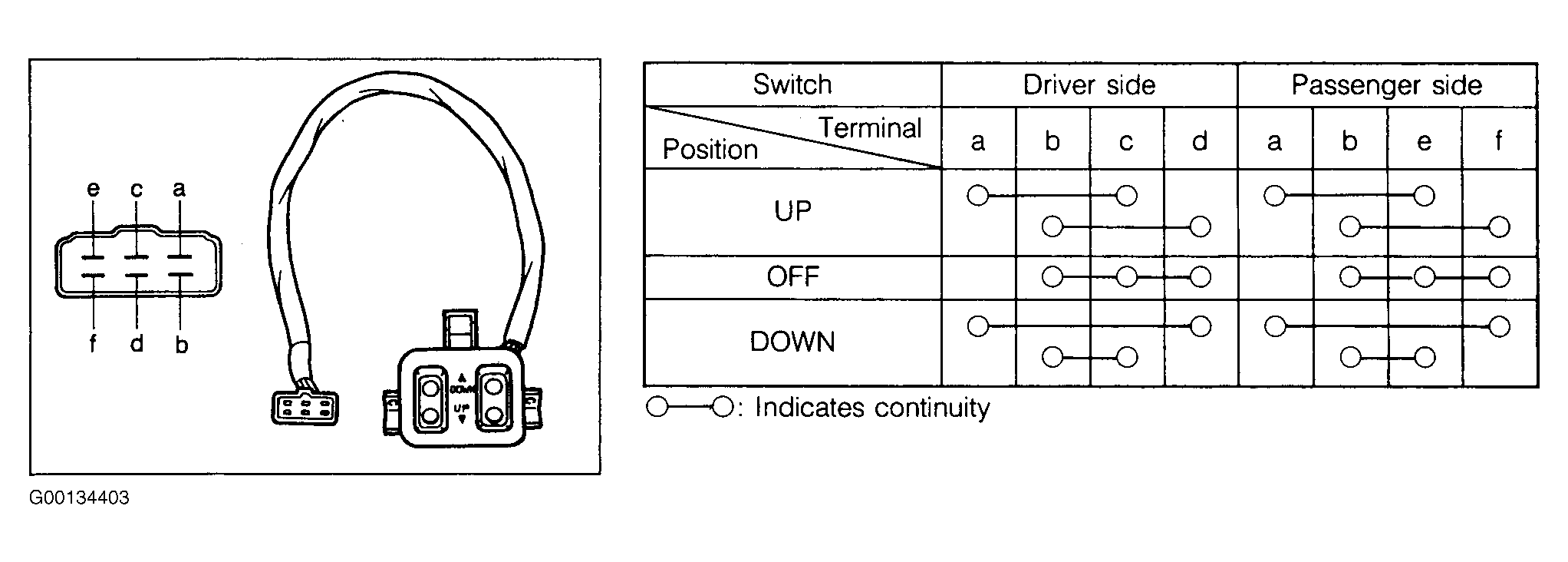

Fig 1: Testing Power Windows Master Switch

Courtesy of MAZDA MOTORS CORP.
