Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart
›
Code 26: Purge Control Solenoid Valve
Code 26: Purge Control Solenoid Valve

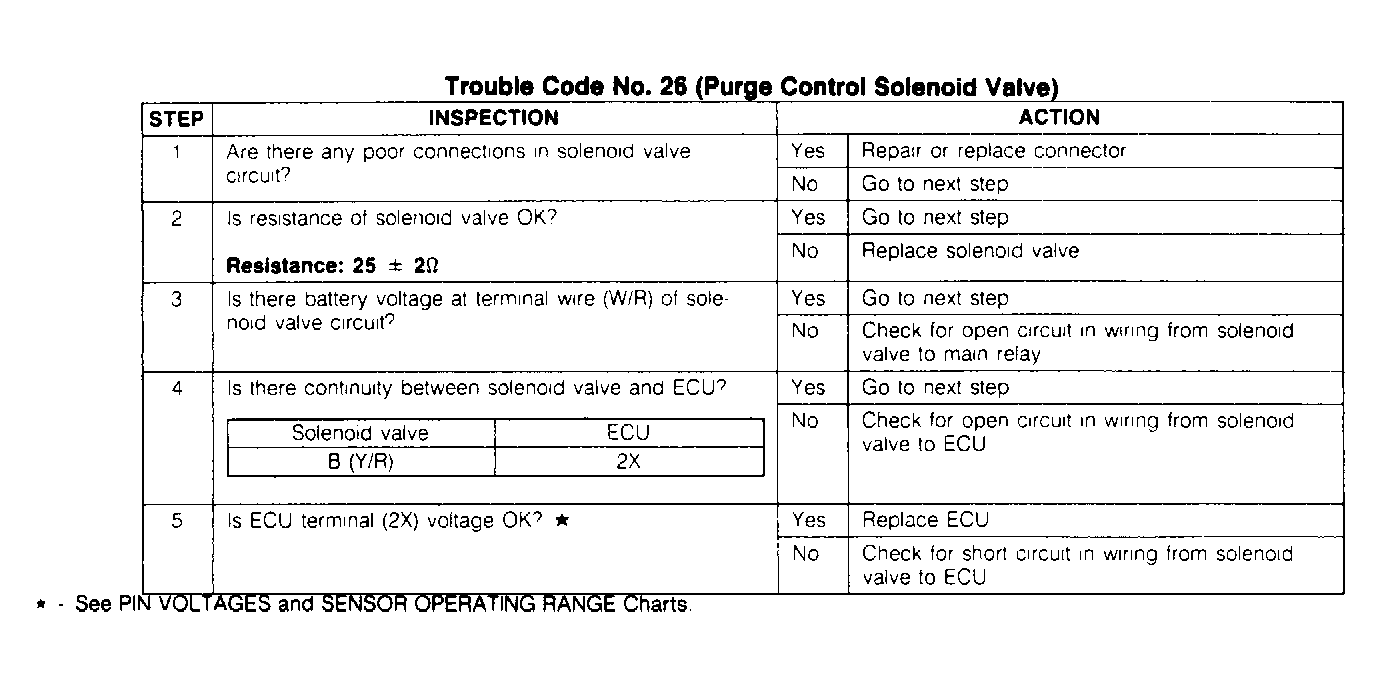

Fig 1: Code 26: Purge Control Solenoid Valve Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
