Code 3: G-Signal-Crank Angle

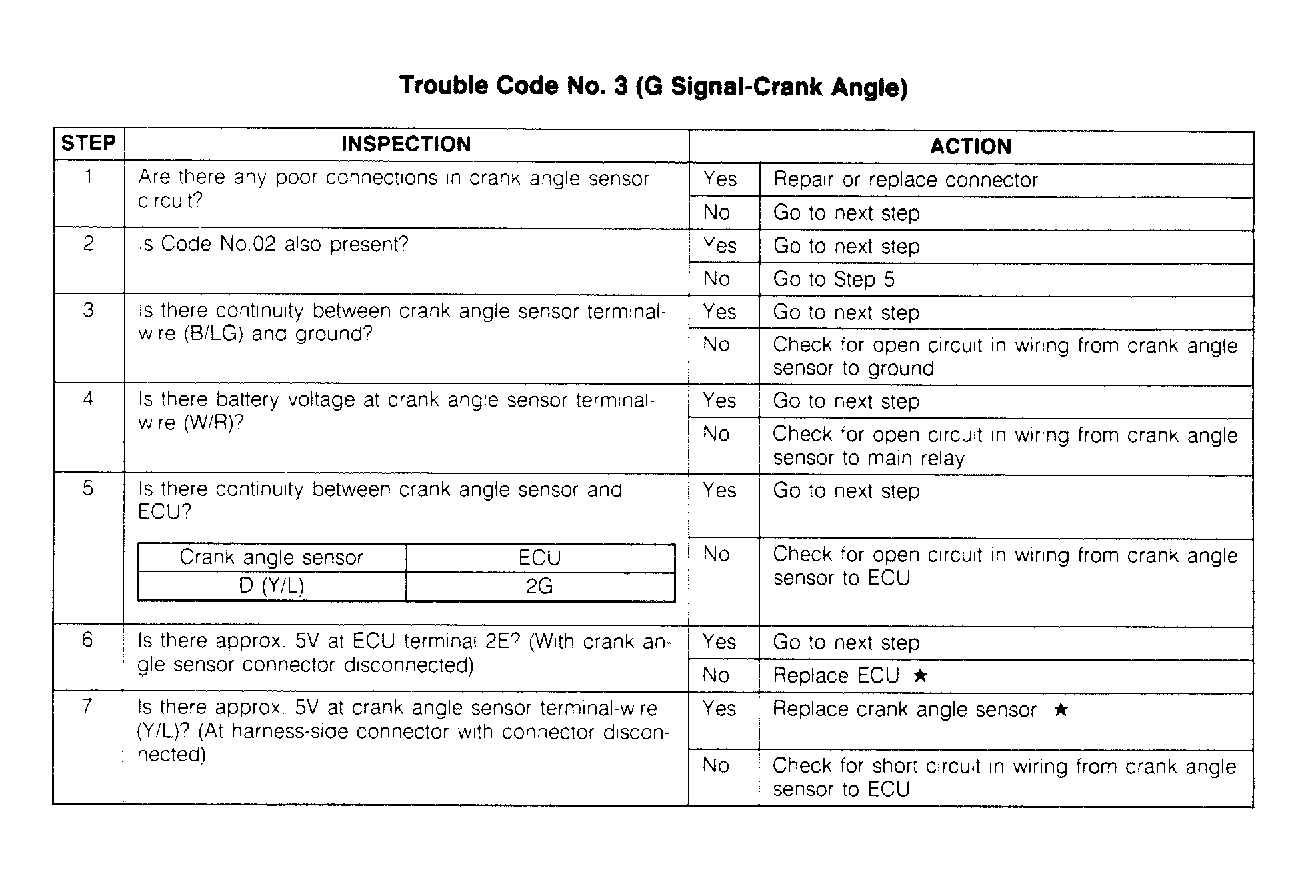

Fig 1: Code 3: G-Signal-Crank Angle Chart
G90B21577Courtesy of MAZDA MOTORS CORP.
