Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart
›
Code 9: Coolant THERMOSENSOR
Code 9: Coolant THERMOSENSOR

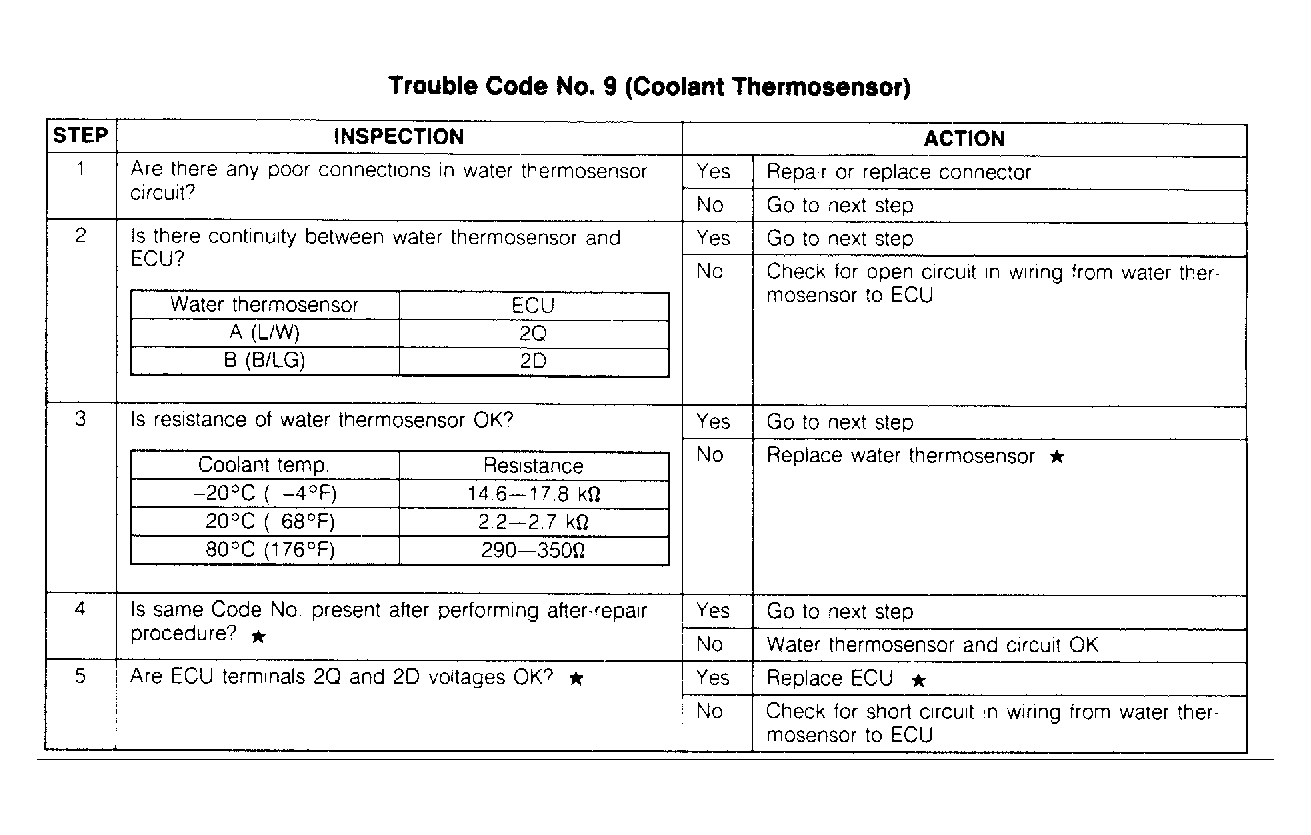

Fig 1: Code 9: Coolant Thermosensor Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
