FixVault
Home
›
Mazda
›
1990
›
MX-5 Miata Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart
›
Notes
Trouble Code Identification Chart: Notes

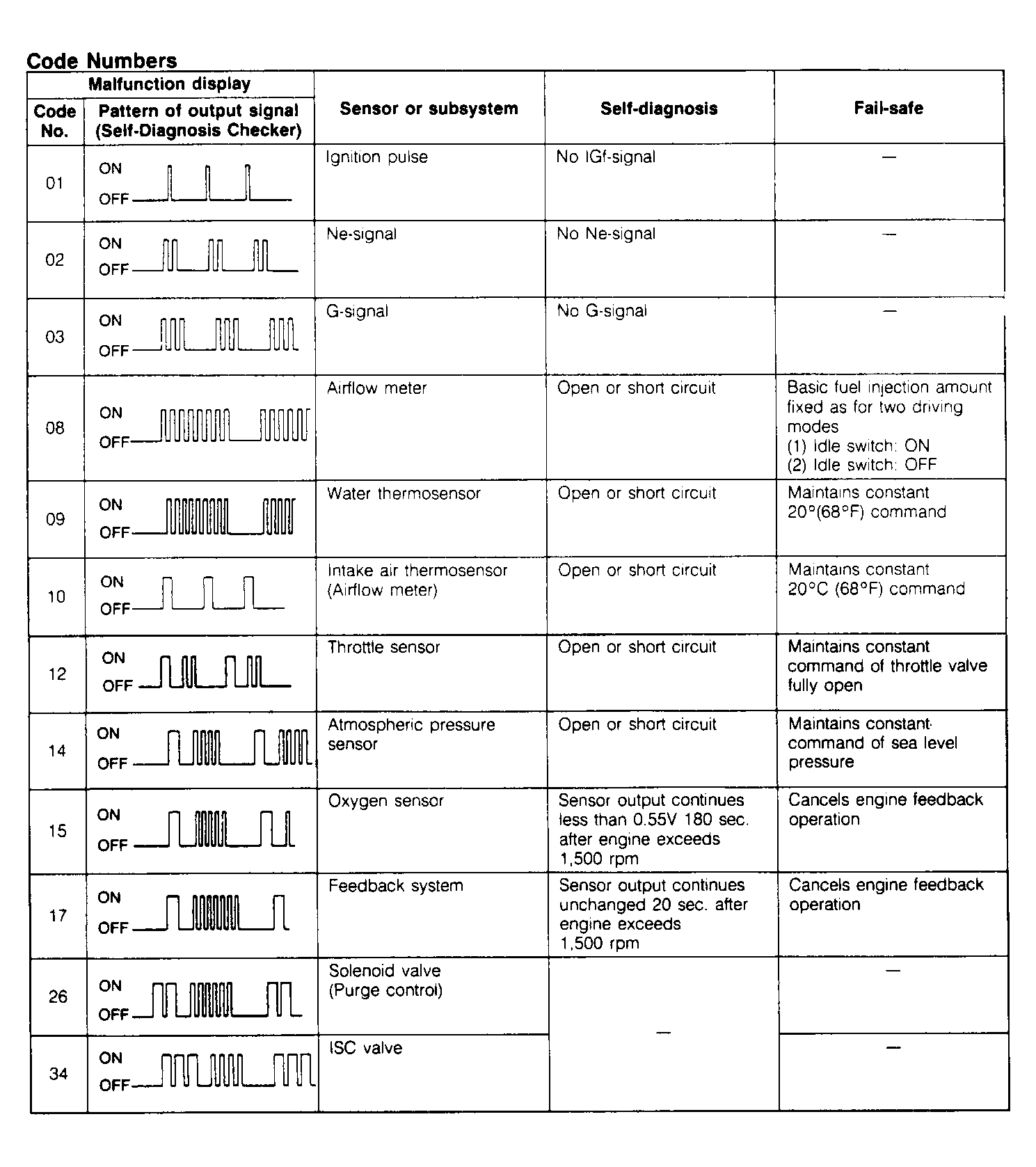

Fig 1: Trouble Code Identification Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
