Wiring Diagrams

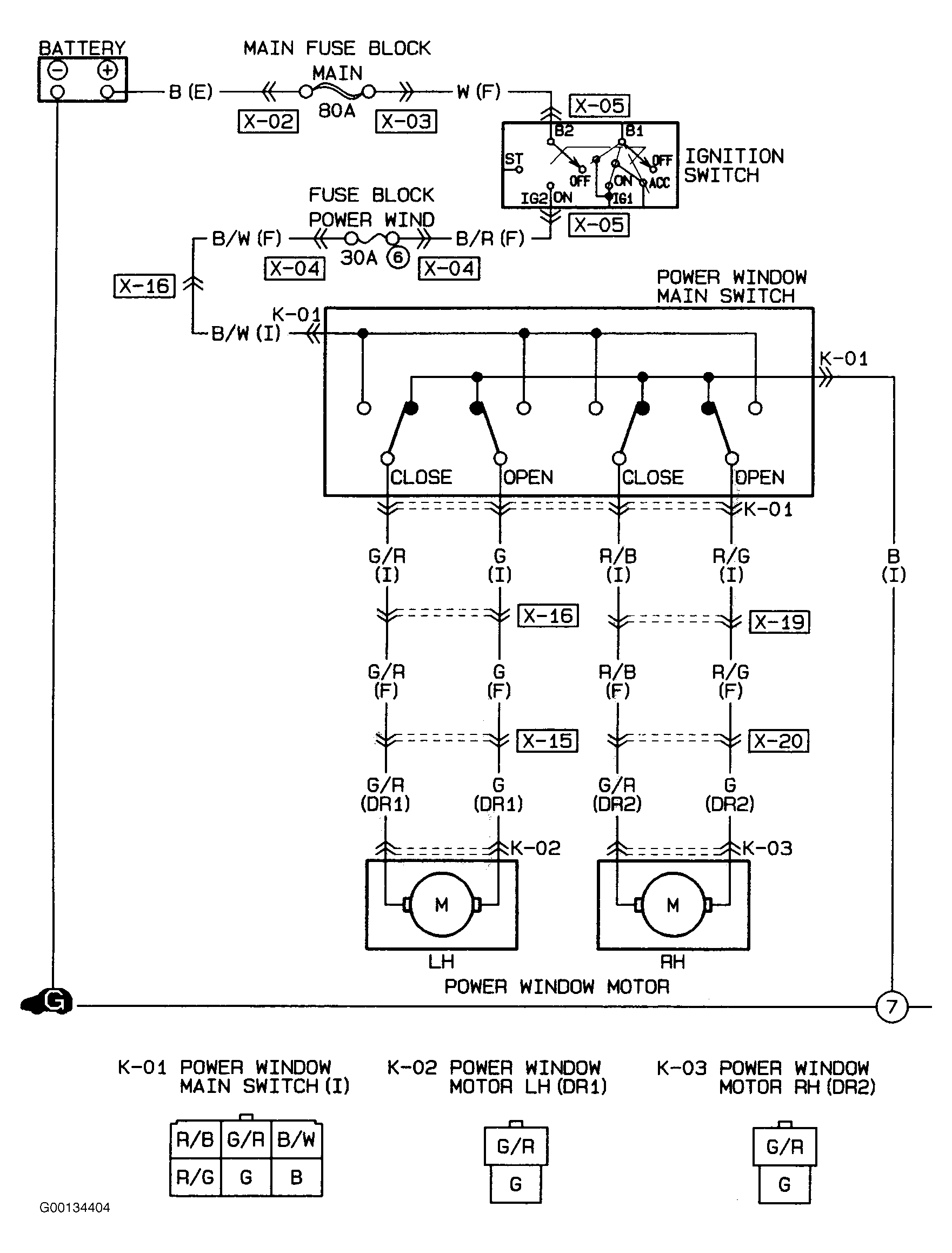

Fig 1: Power Windows System Wiring Diagram (1990-92 MX-5 Miata)
G00134404Courtesy of MAZDA MOTORS CORP.
