Code 28: EGR Vacuum Solenoid Valve

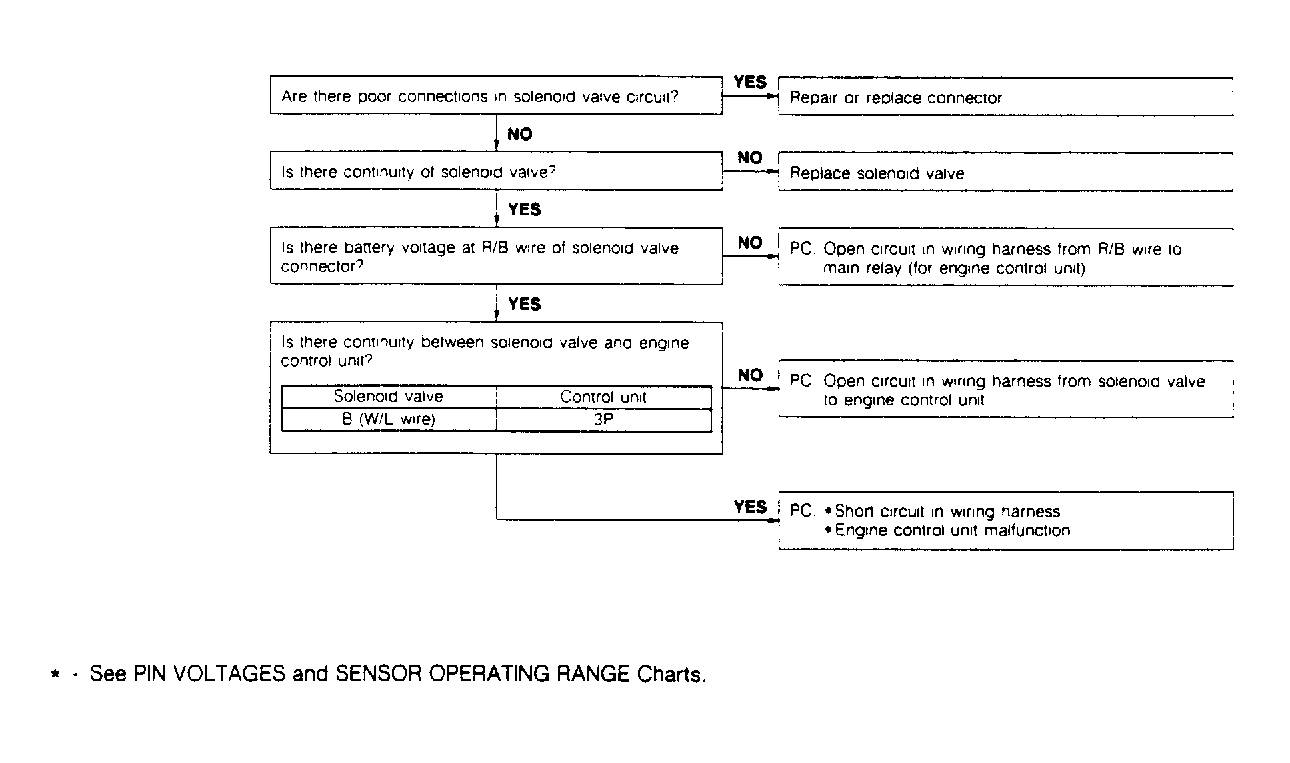

Fig 1: Code 28: EGR Vacuum Solenoid Valve Flow Chart (Turbo)
G90A21501Courtesy of MAZDA MOTORS CORP.
