Connector Identification

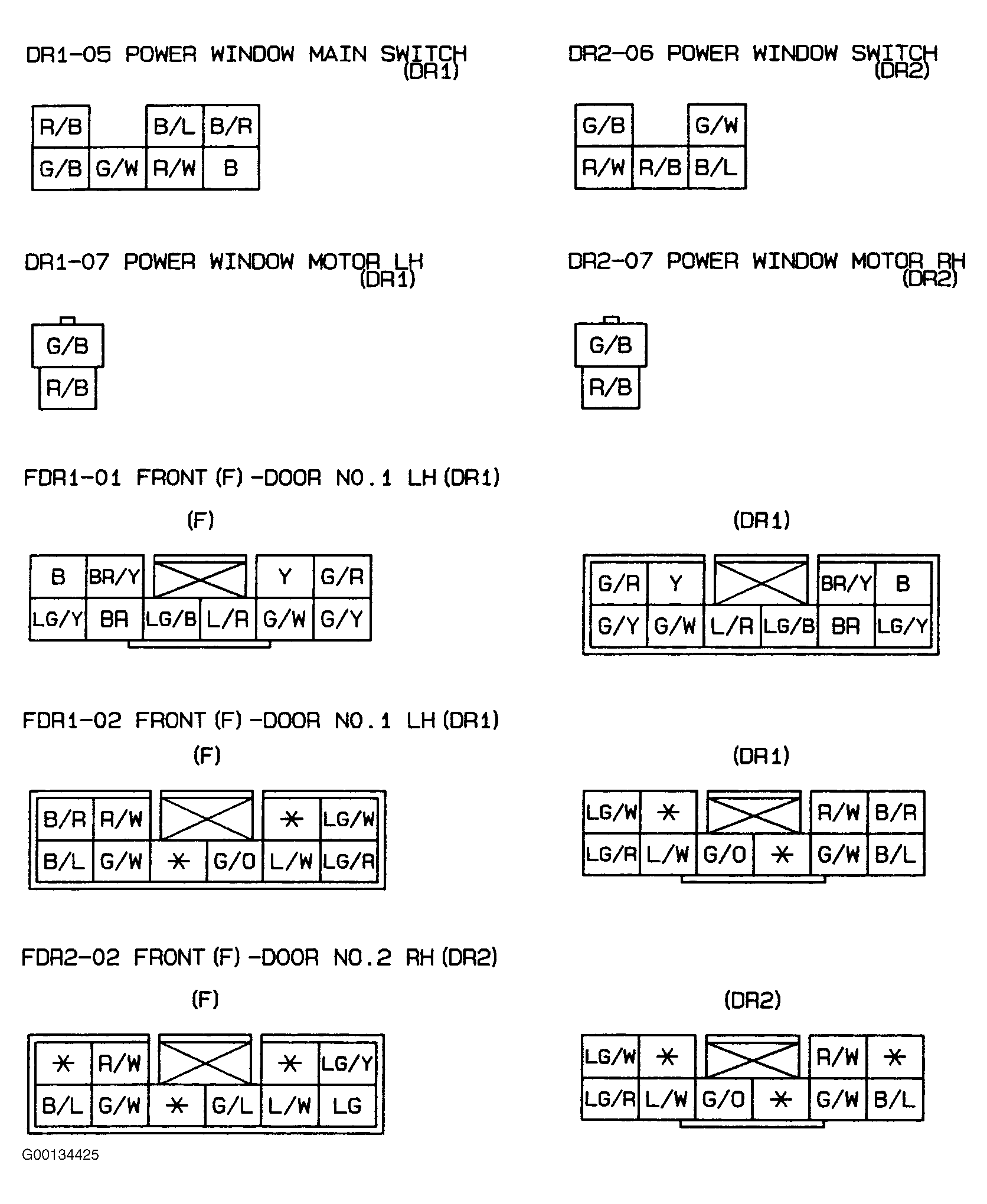

Fig 1: Identifying Power Window System Connectors & Terminals
G00134425Courtesy of MAZDA
