Code 1: Ignition Coil Signal

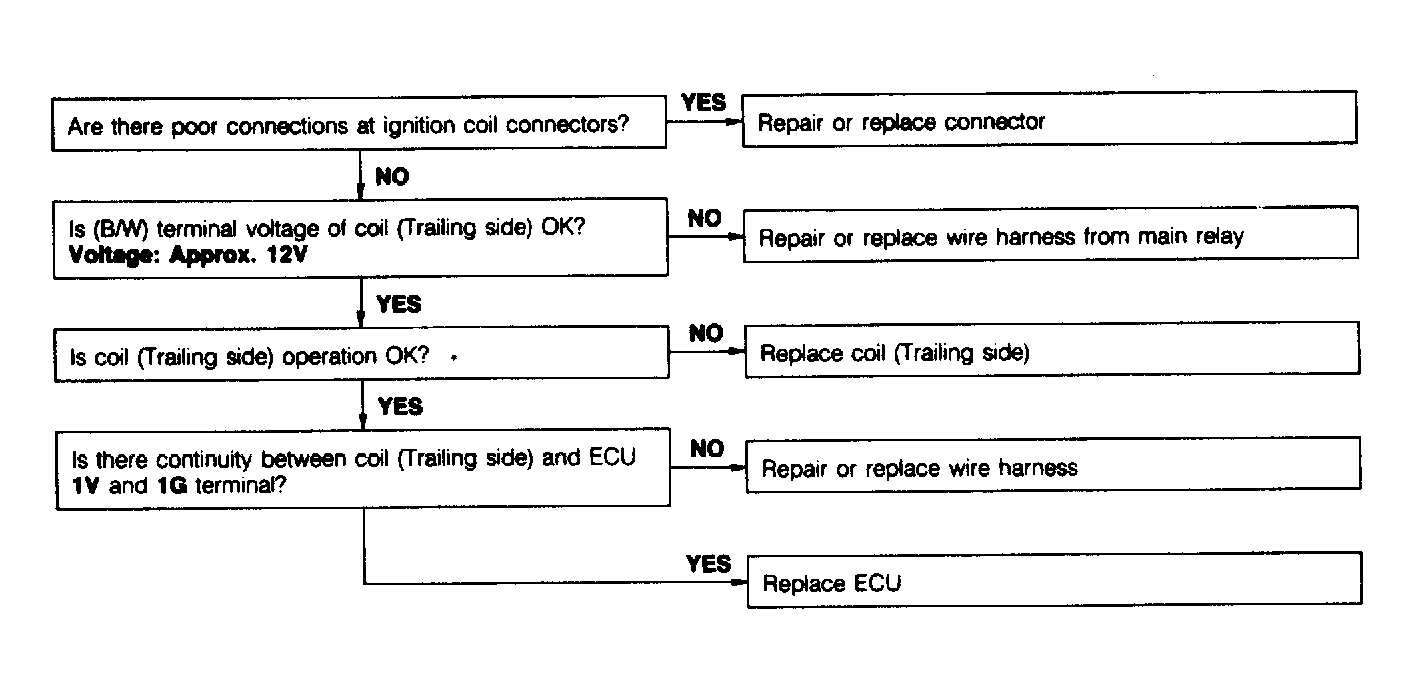

Fig 1: Code 1: Ignition Coil Signal Flow Chart
G117676Courtesy of MAZDA MOTORS CORP.
