Engine Controls - Tests W/Codes
›
Trouble Code Identification Chart
›
Code 20: Metering Oil Pump Position Sensor
Code 20: Metering Oil Pump Position Sensor

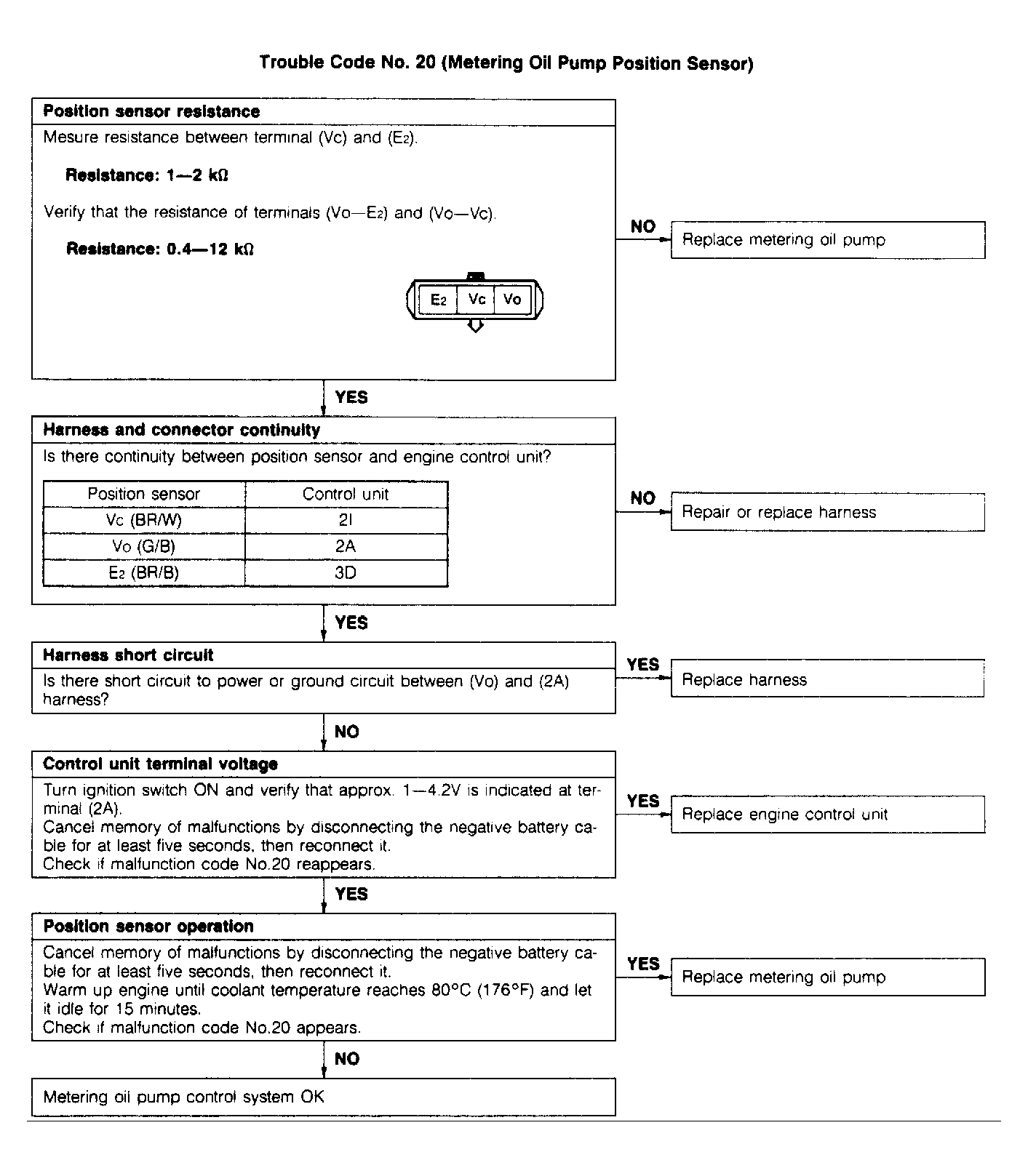

Fig 1: Code 20: Metering Oil Pump Position Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
