Code 3: G-Signal-Crank Angle Sensor

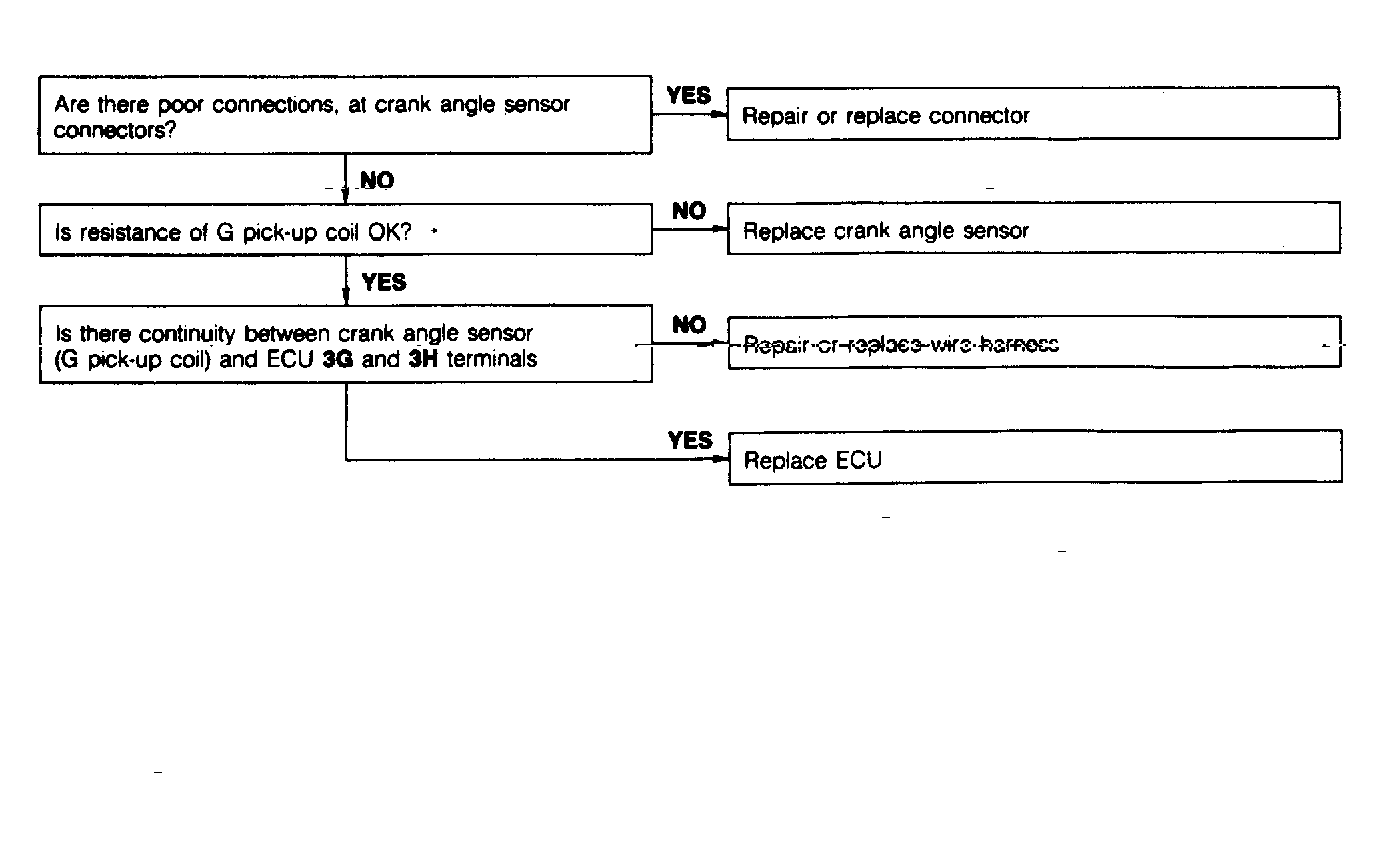

Fig 1: Code 3: G-Signal-Crank Angle Sensor Flow Chart
G117678Courtesy of MAZDA MOTORS CORP.
