Code 30: Split Air Solenoid Valve

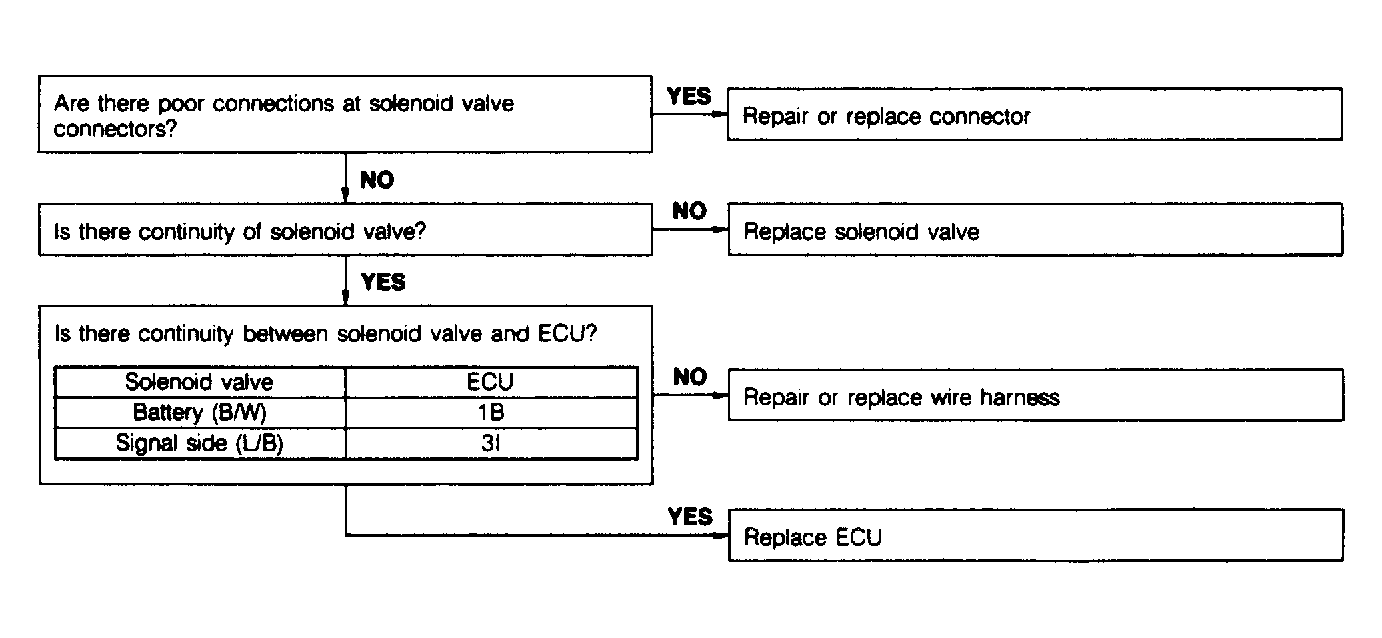

Fig 1: Code 30: Split Air Solenoid Valve Flow Chart
G117691Courtesy of MAZDA MOTORS CORP.
