Code 31: Relief Solenoid Valve

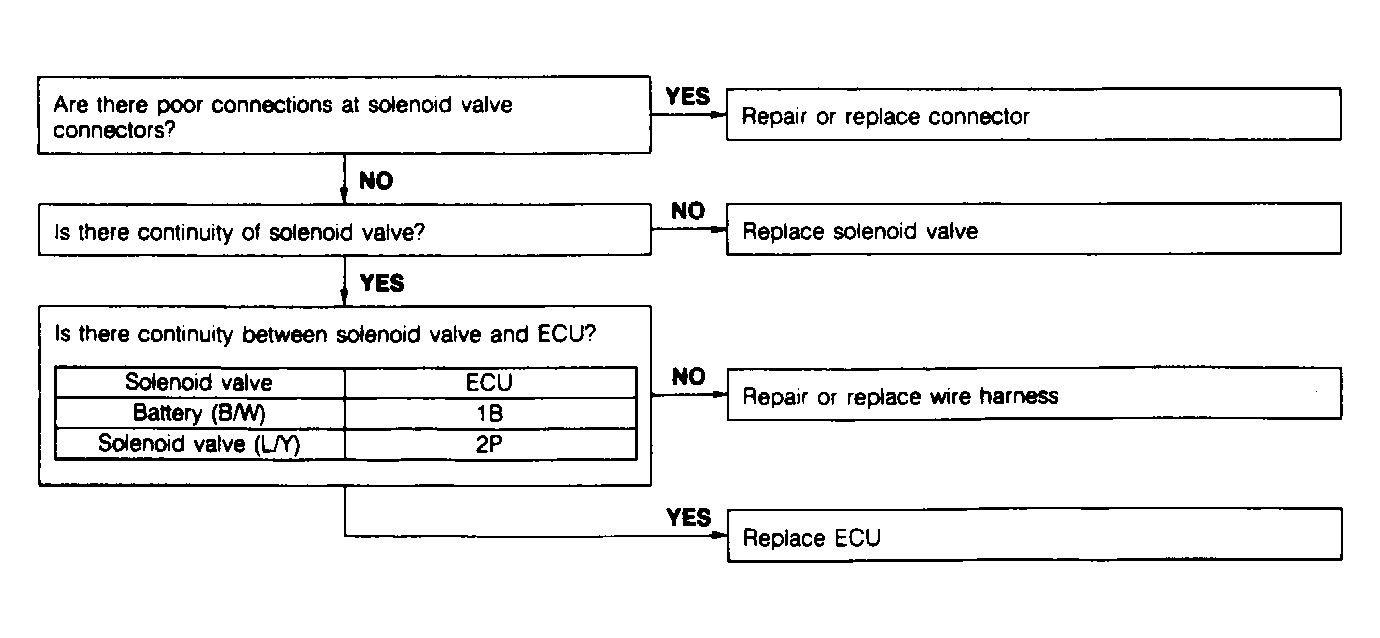

Fig 1: Code 31: Relief Solenoid Valve Flow Chart
G117692Courtesy of MAZDA MOTORS CORP.
