Code 34: By-Pass Air Control Solenoid Valve

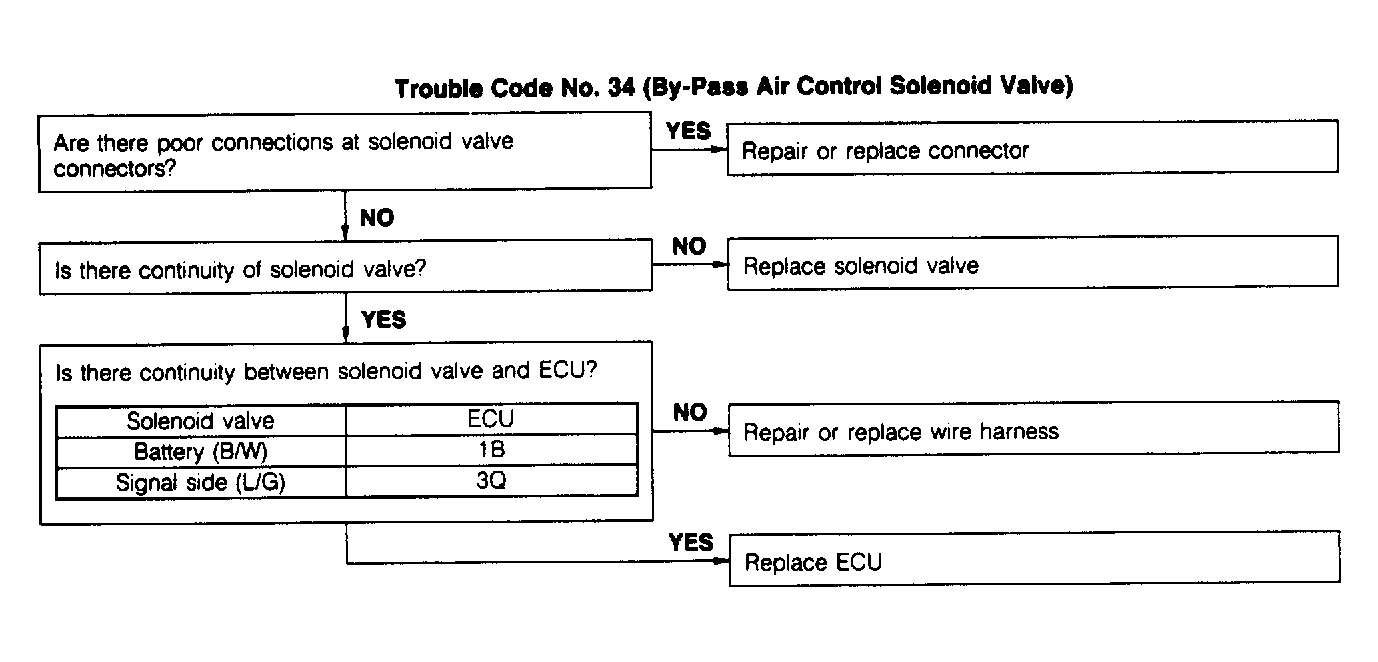

Fig 1: Code 34: By-Pass Air Control Solenoid Valve Flow Chart
G117695Courtesy of MAZDA MOTORS CORP.
