Engine Controls - Pin Voltage Charts
›
Non-Turbo M/T Charts
Non-Turbo M/T Charts

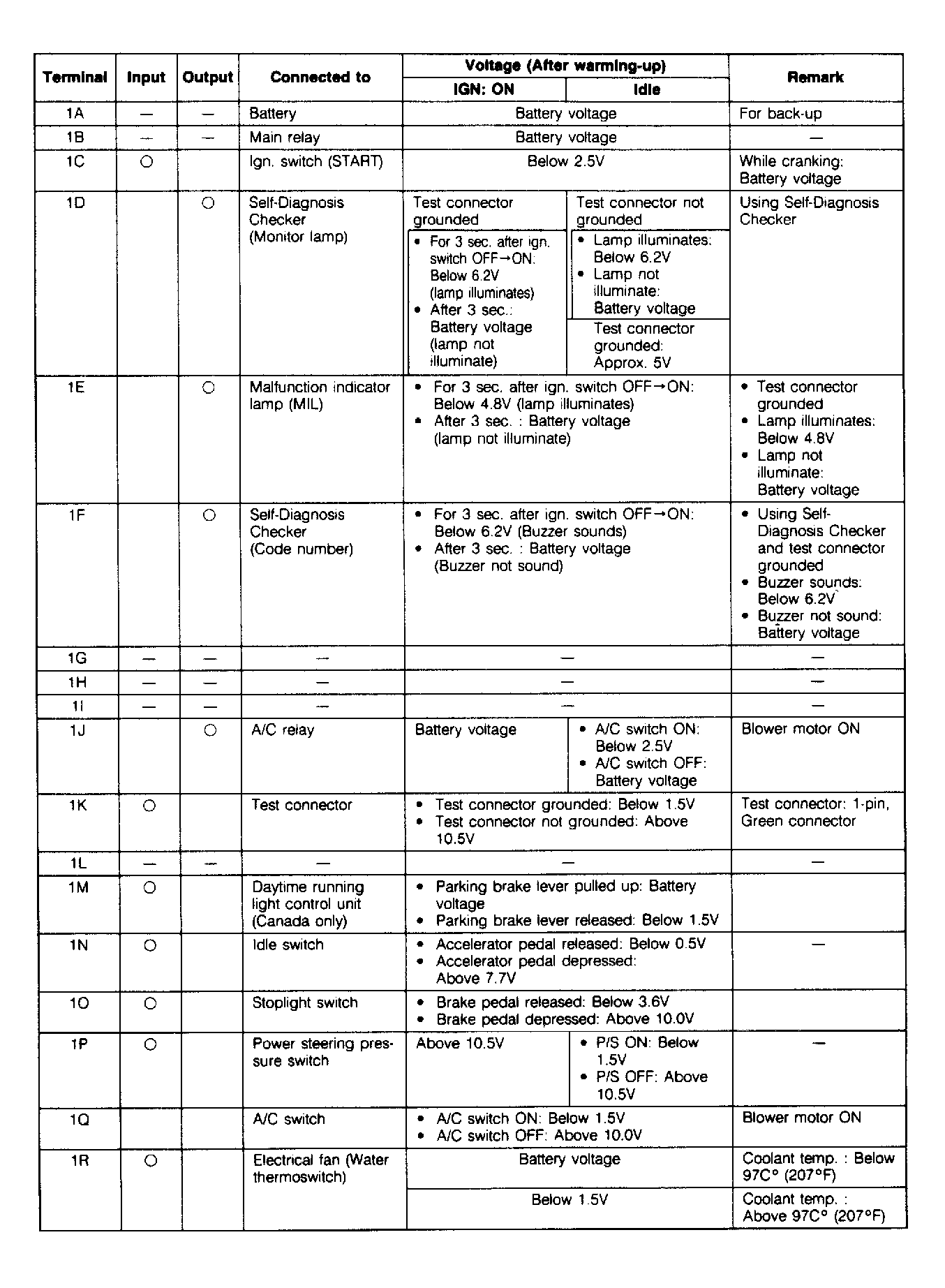

Fig 1: Non-Turbo W/ M/T ECU Pin Voltage Chart (1 of 3)
Courtesy of MAZDA MOTORS CORP.

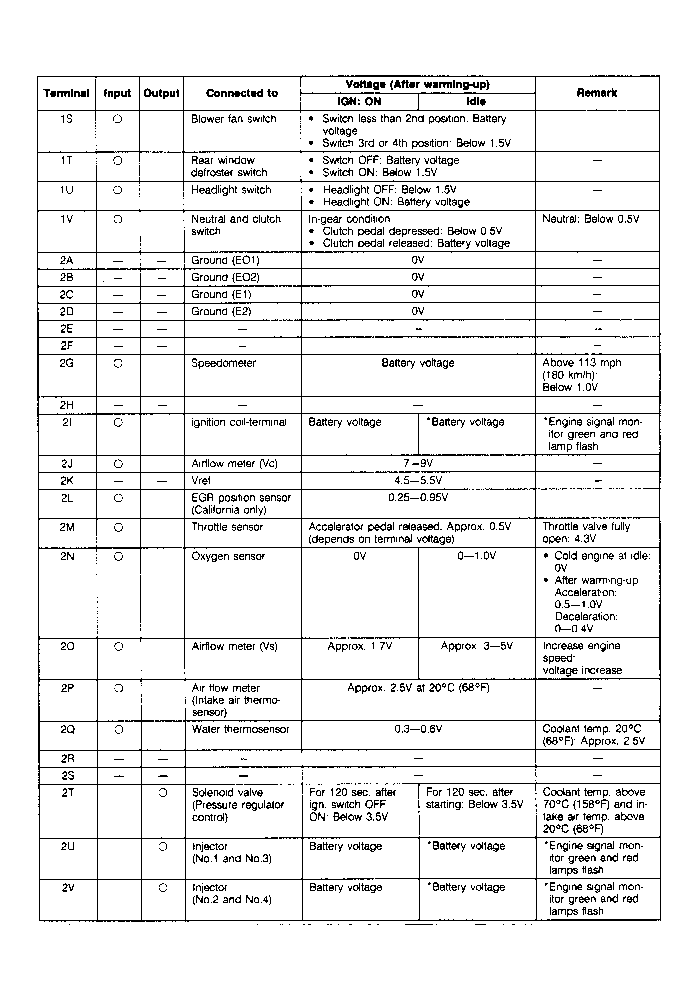

Fig 2: Non-Turbo W/ M/T ECU Pin Voltage Chart (2 of 3)
Courtesy of MAZDA MOTORS CORP.

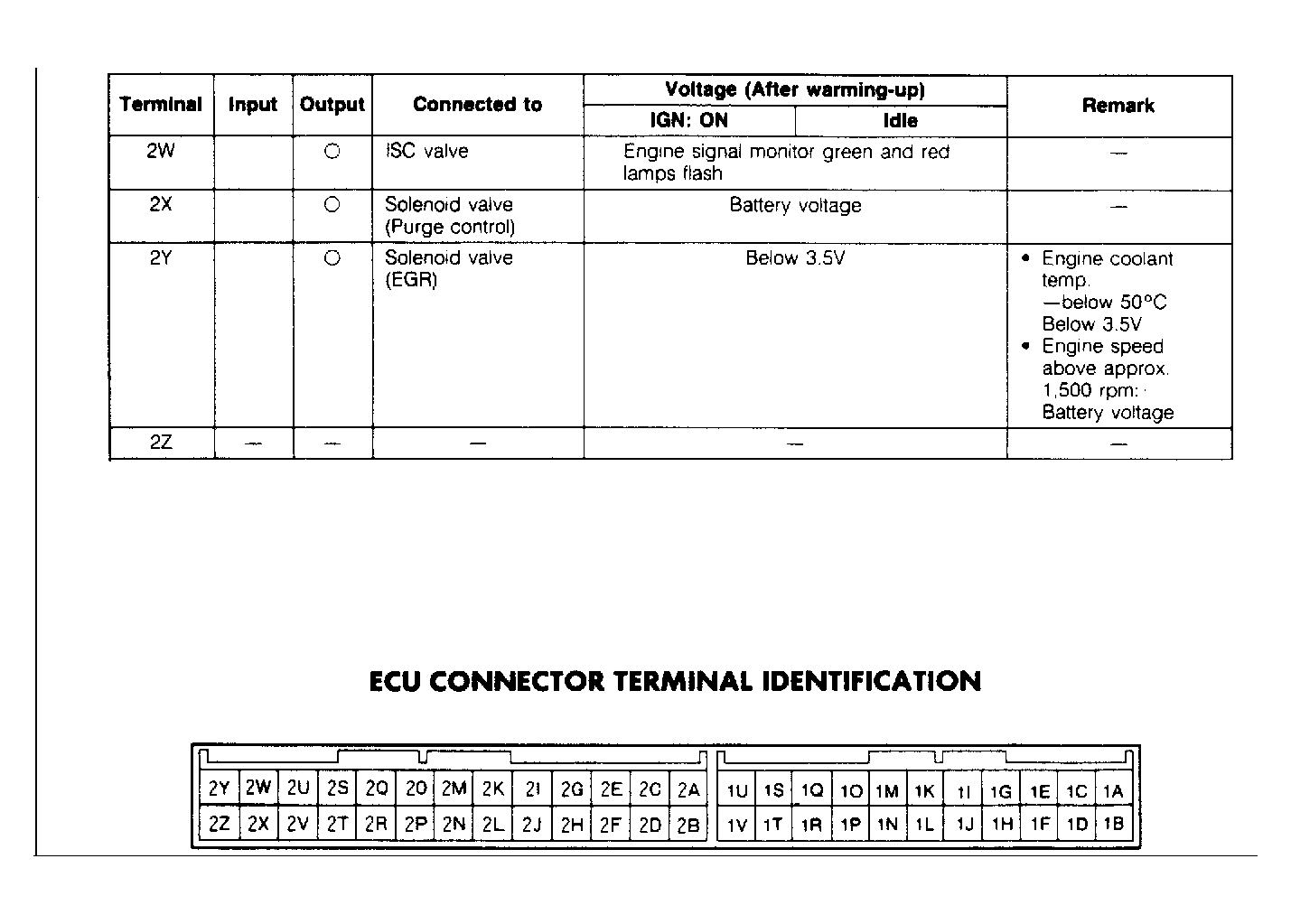

Fig 3: Non-Turbo W/ M/T ECU Pin Voltage Chart & Terminal Id (3 of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
