SOHC Charts

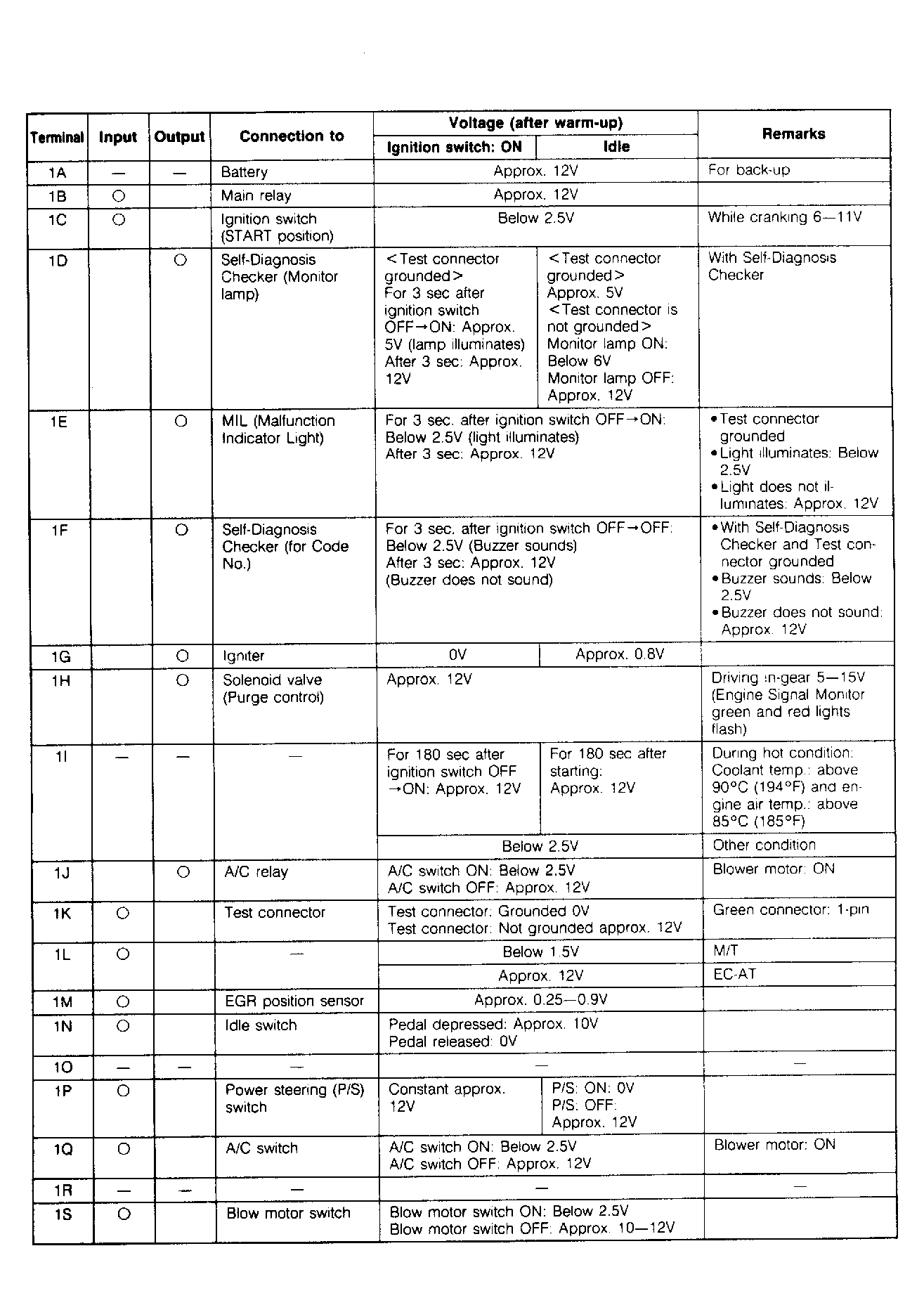

Fig 1: SOHC ECU Pin Voltage Chart (1 of 3)

Courtesy of MAZDA MOTORS CORP.

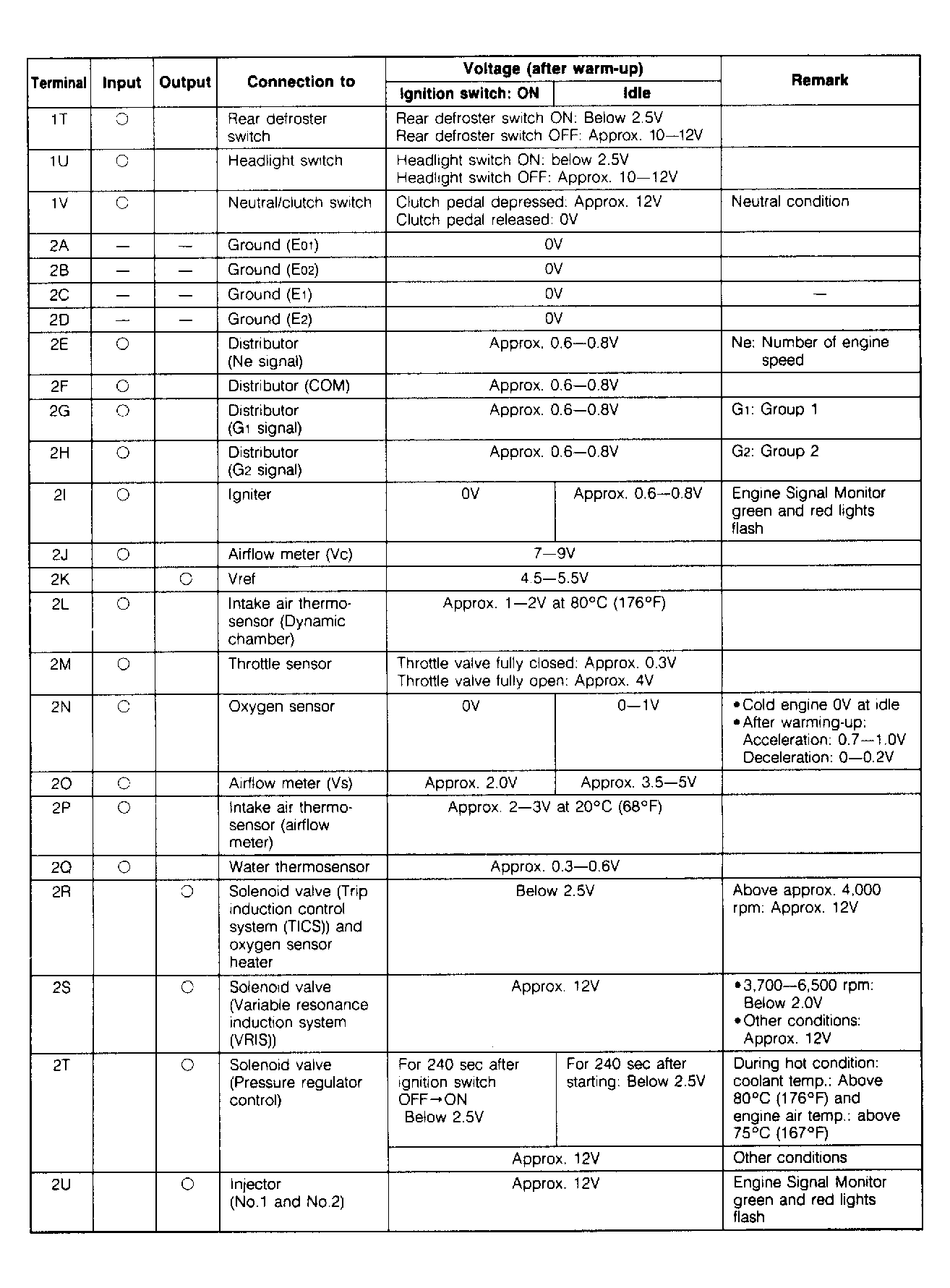

Fig 2: SOHC ECU Pin Voltage Chart (2 of 3)

Courtesy of MAZDA MOTORS CORP.

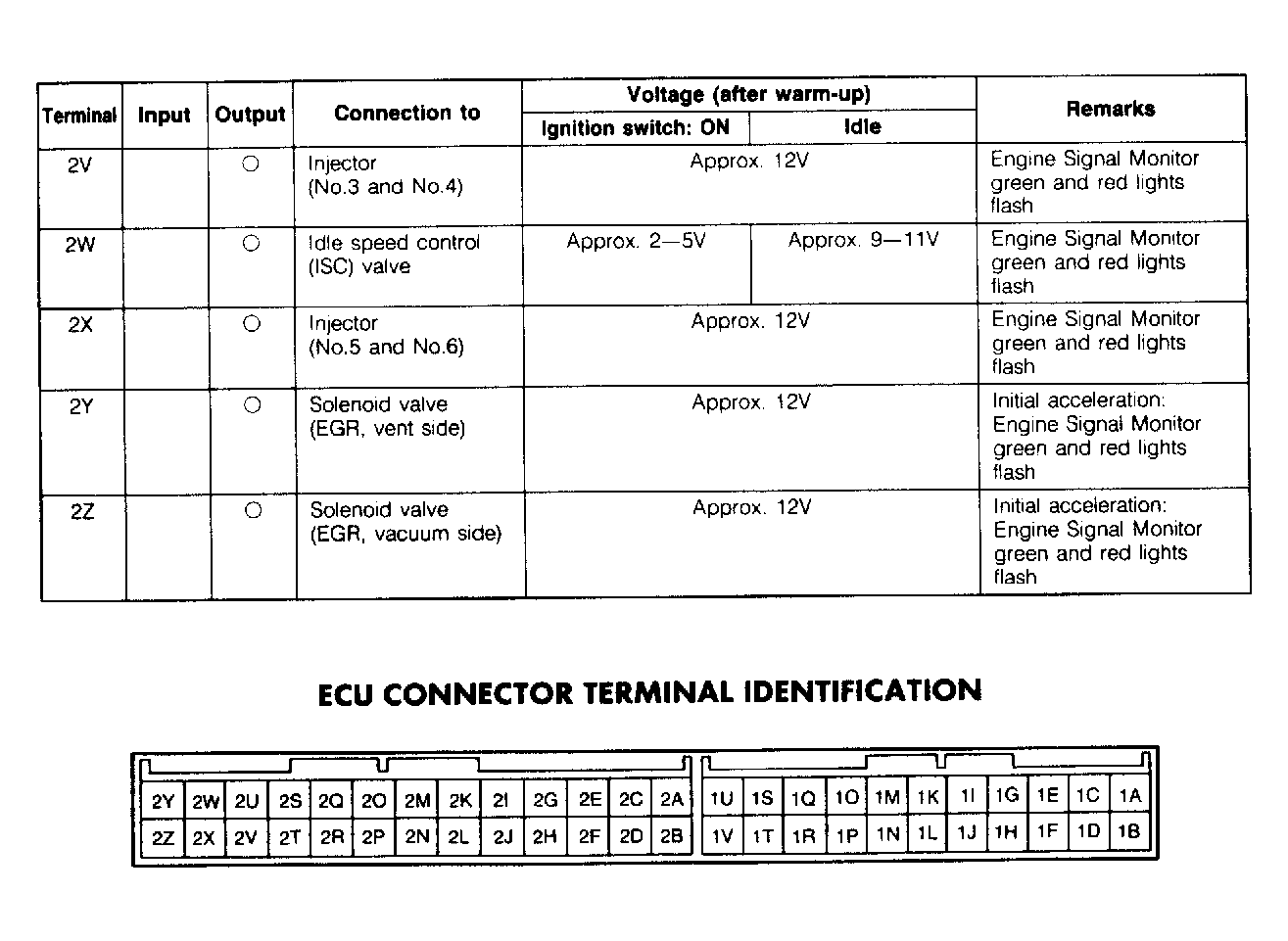

Fig 3: SOHC ECU Pin Voltage Chart & Terminal Id (3 of 3)

Courtesy of MAZDA MOTORS CORP.
