IGNITOR (MX-6 Turbo, 626 Turbo & 929)

1. Turn ignition off. Disconnect ignitor connector and install Test Harness (49 F018 002). Using a needle-type ohmmeter, connect (+) lead to ground and (-) lead to single-pin test wire of test harness.
   CAUTION: Ensure ohmmeter is installed with (+) lead to ground and () lead to single-pin wire of test harness. DO NOT reverse leads or damage may result.
2. Connect Ignitor Checker (49 H018 910) to other lead of test harness and to battery. See Fig 1 . Set ohmmeter to X1 scale.
3. Turn ignition on. DO NOT touch ignitor checker SW1 switch. Push up ignitor checker SW2 switch and note ohmmeter reading. Ohmmeter needle should jump to 1/2 of the scale and then return. If ohmmeter does not operate as specified, replace ignitor.

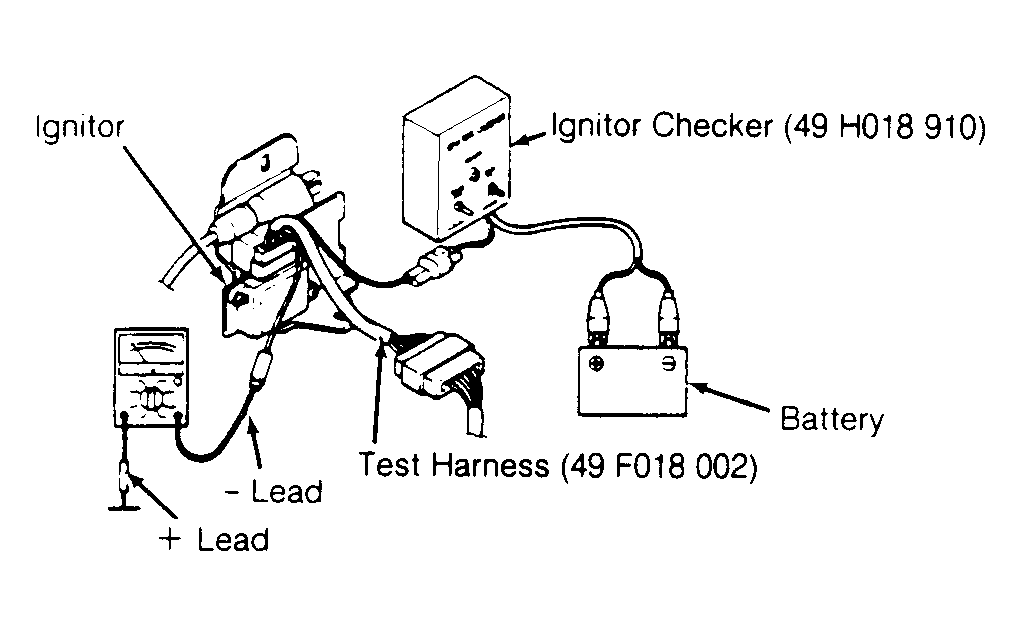

Fig 1: Checking Ignitor (MX-6 Turbo, 626 Turbo & 929)

Courtesy of MAZDA MOTORS CORP.
