Code 28: DOHC EGR Vacuum Solenoid Valve

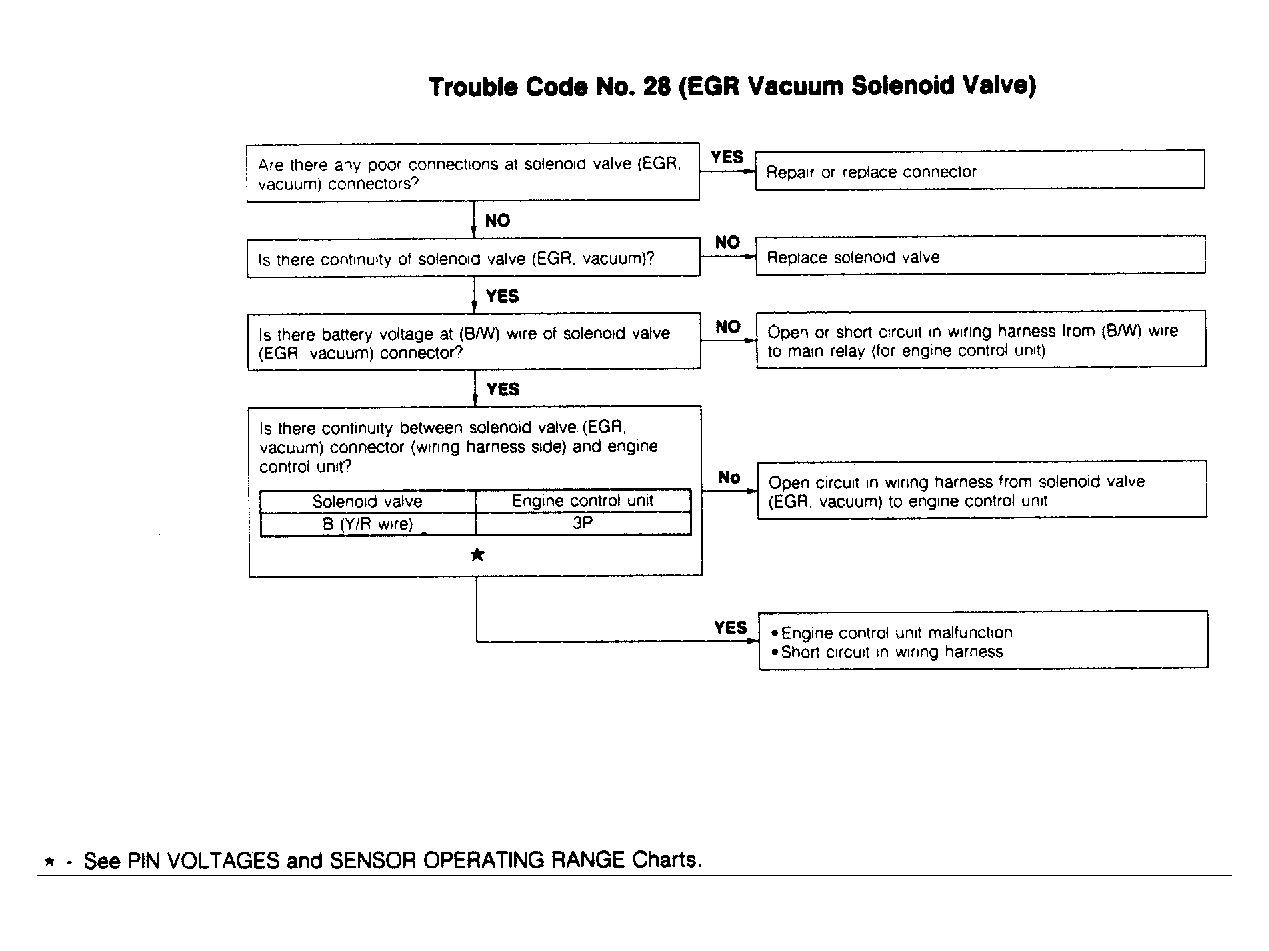

Fig 1: Code 28: EGR Vacuum Solenoid Valve Flow Chart
G90A21568Courtesy of MAZDA MOTORS CORP.
