Home › Mazda › 1991 › 929 Base › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › DOHC Code Identification Charts › Notes

DOHC Code Identification Charts: Notes

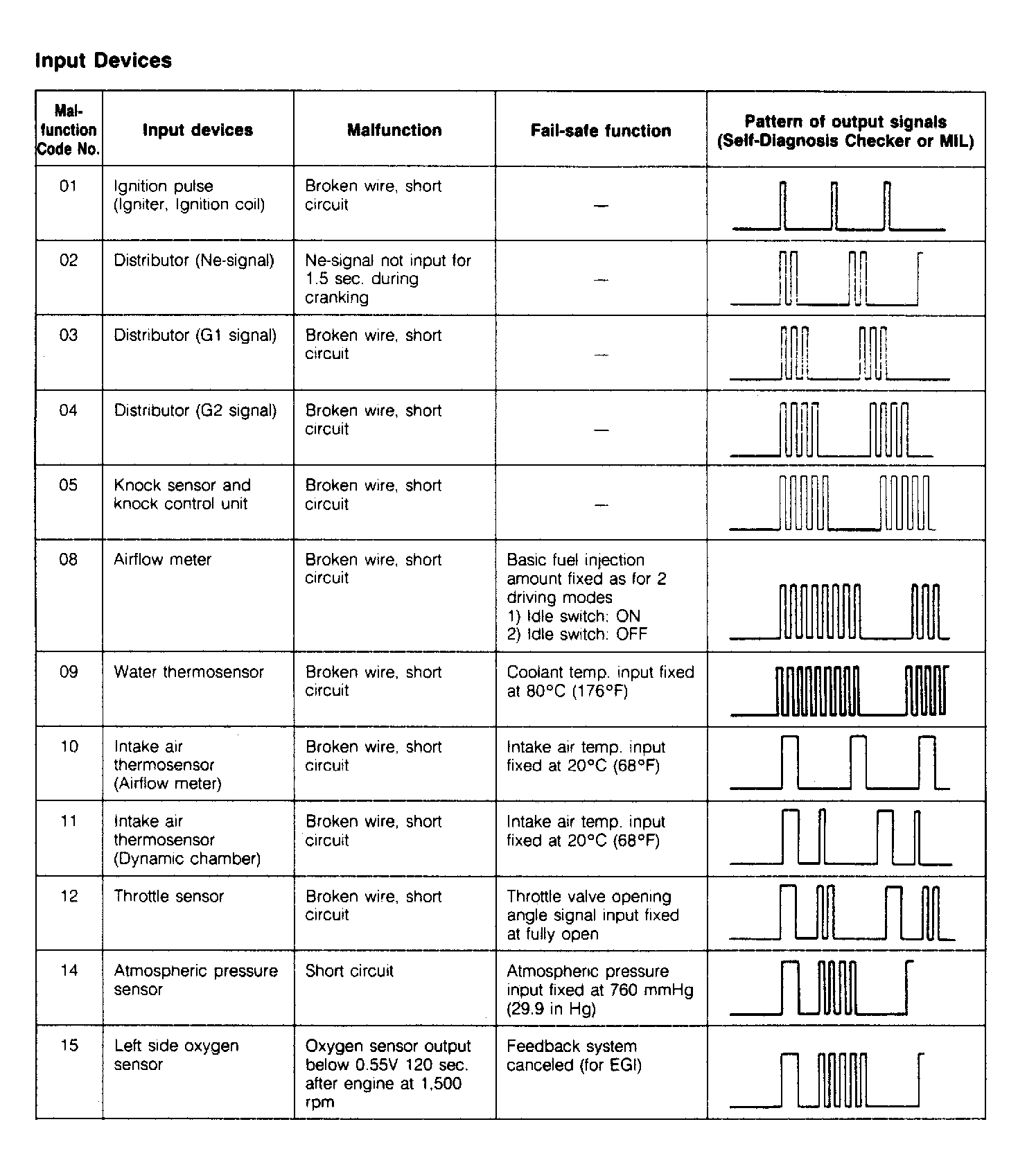

Fig 1: Codes 1-15, Identification Chart
G90G21549Courtesy of MAZDA MOTORS CORP.

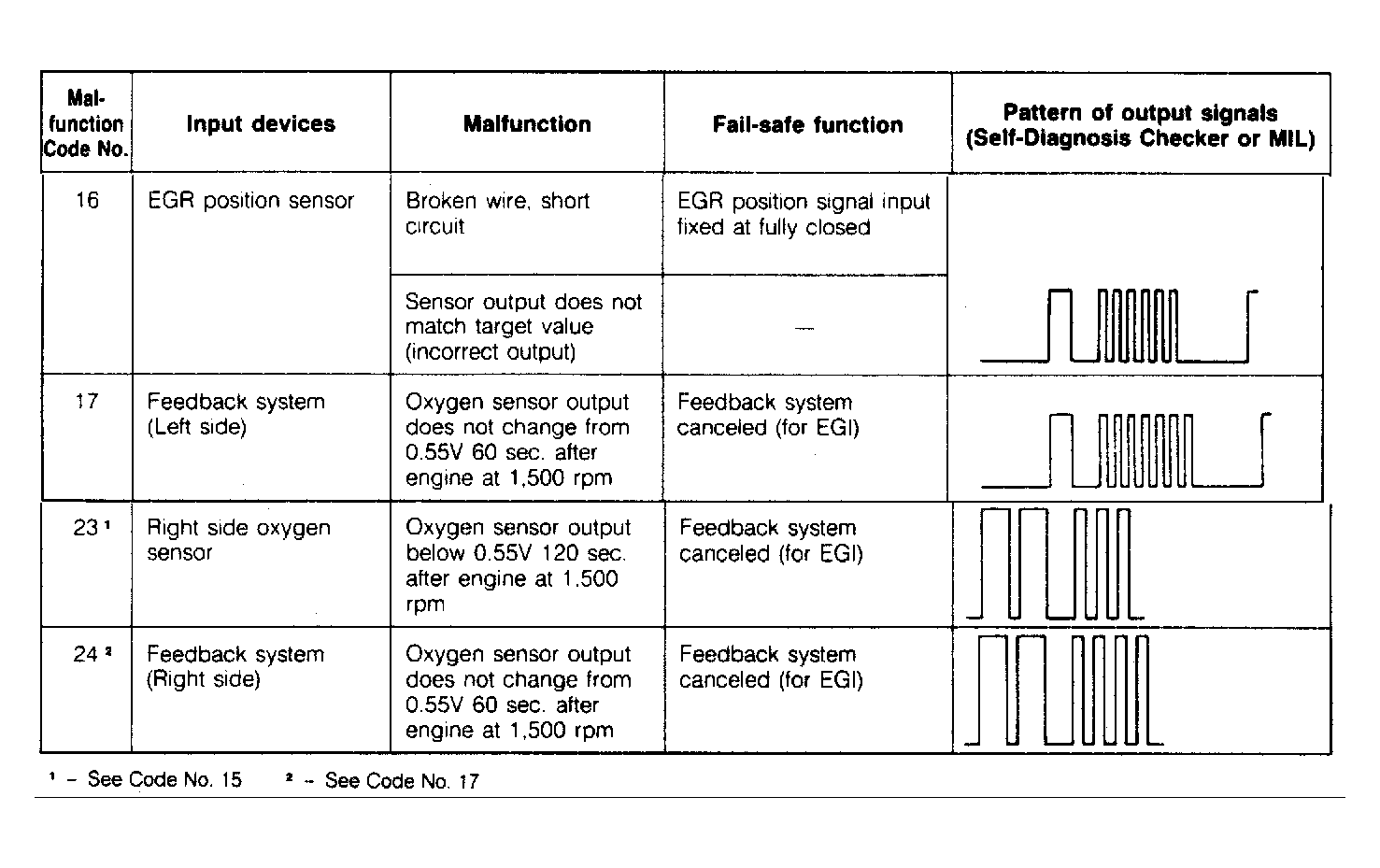

Fig 2: Codes 16-24, Identification Chart
G90A21550Courtesy of MAZDA MOTORS CORP.

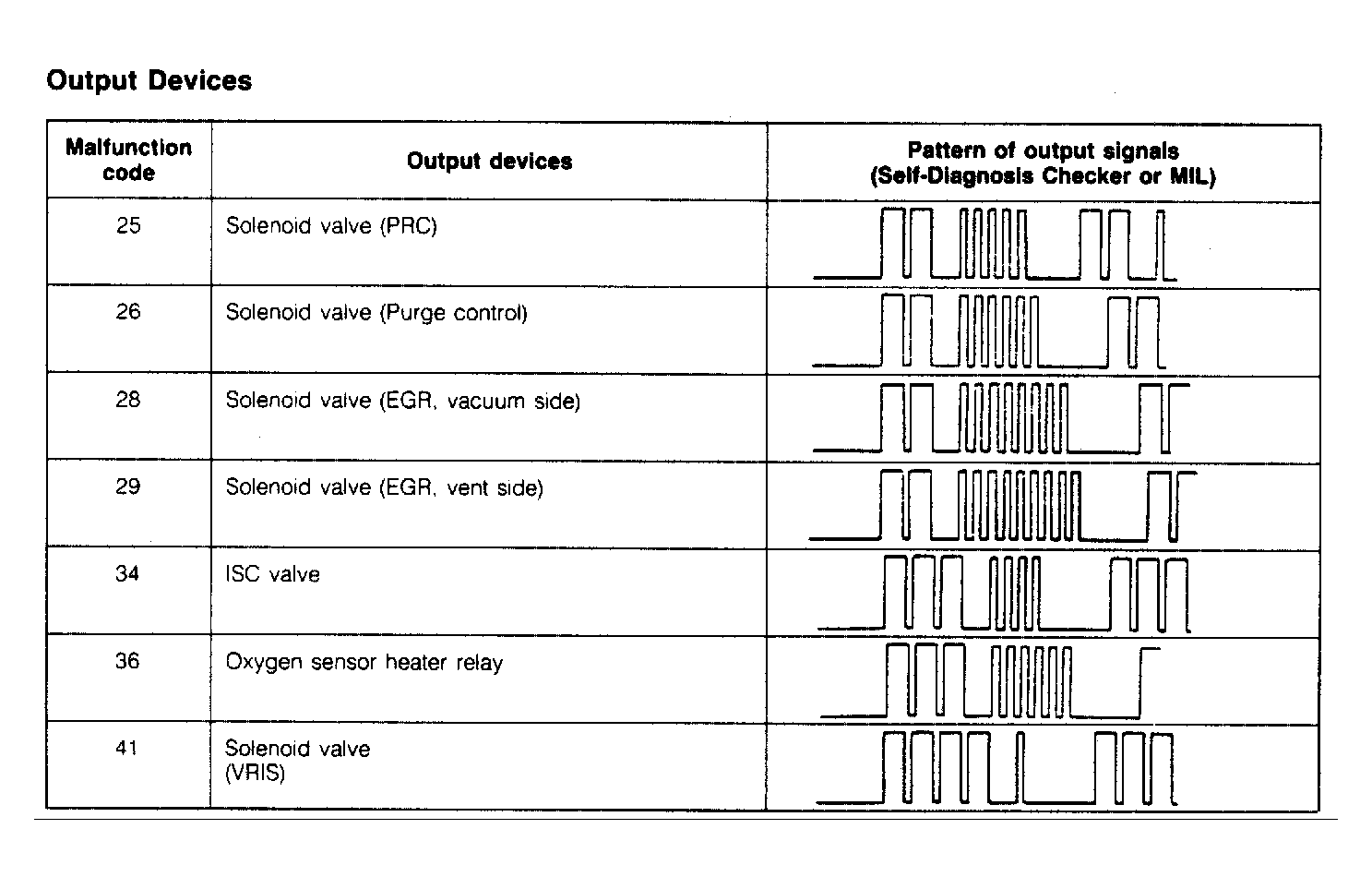

Fig 3: Codes 25-41, Identification Chart
G90B21551Courtesy of MAZDA MOTORS CORP.
