SOHC Code Identification Charts: Notes

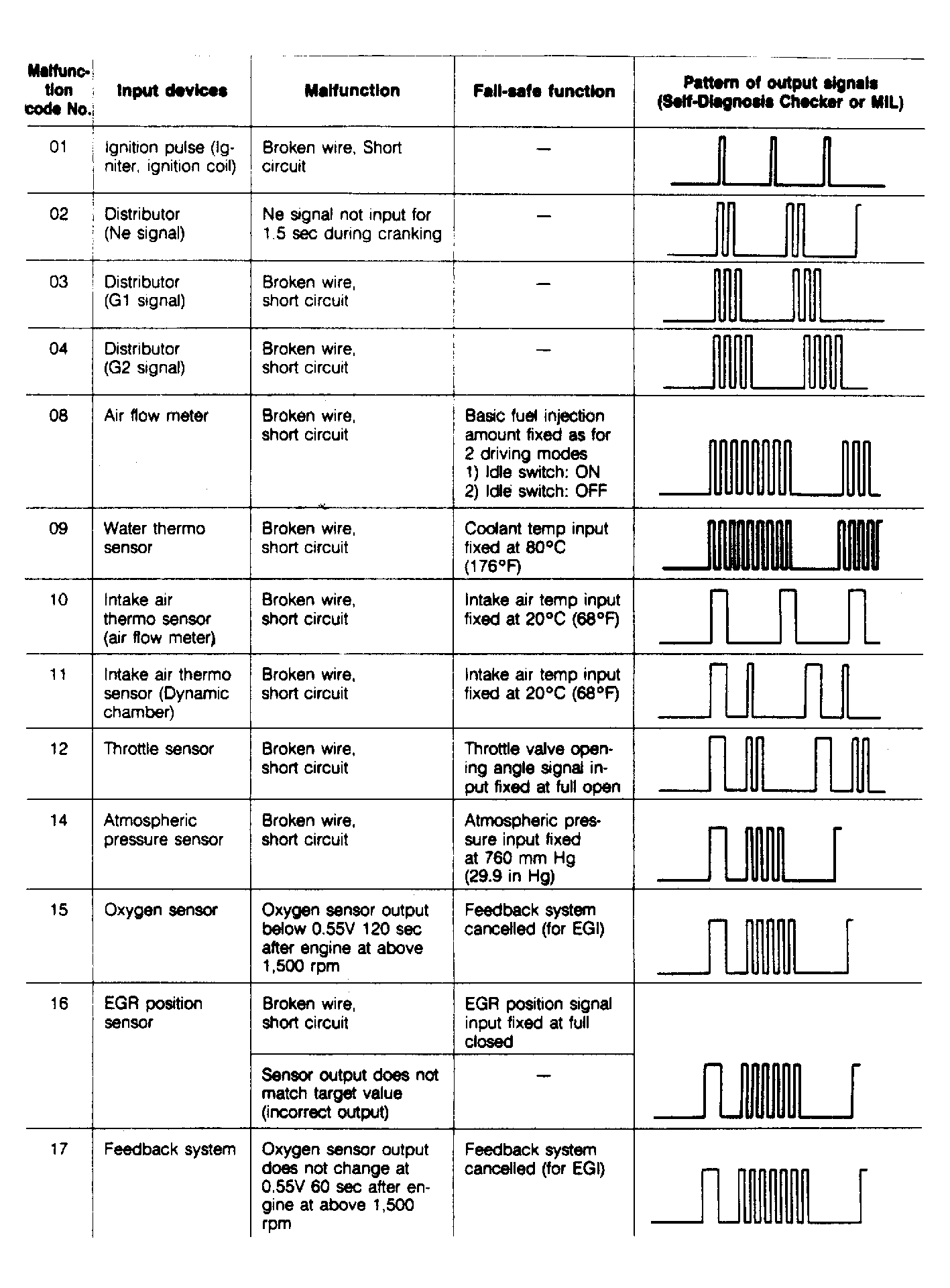

Fig 1: Codes 1-17, Identification Chart
G94804Courtesy of MAZDA MOTORS CORP.

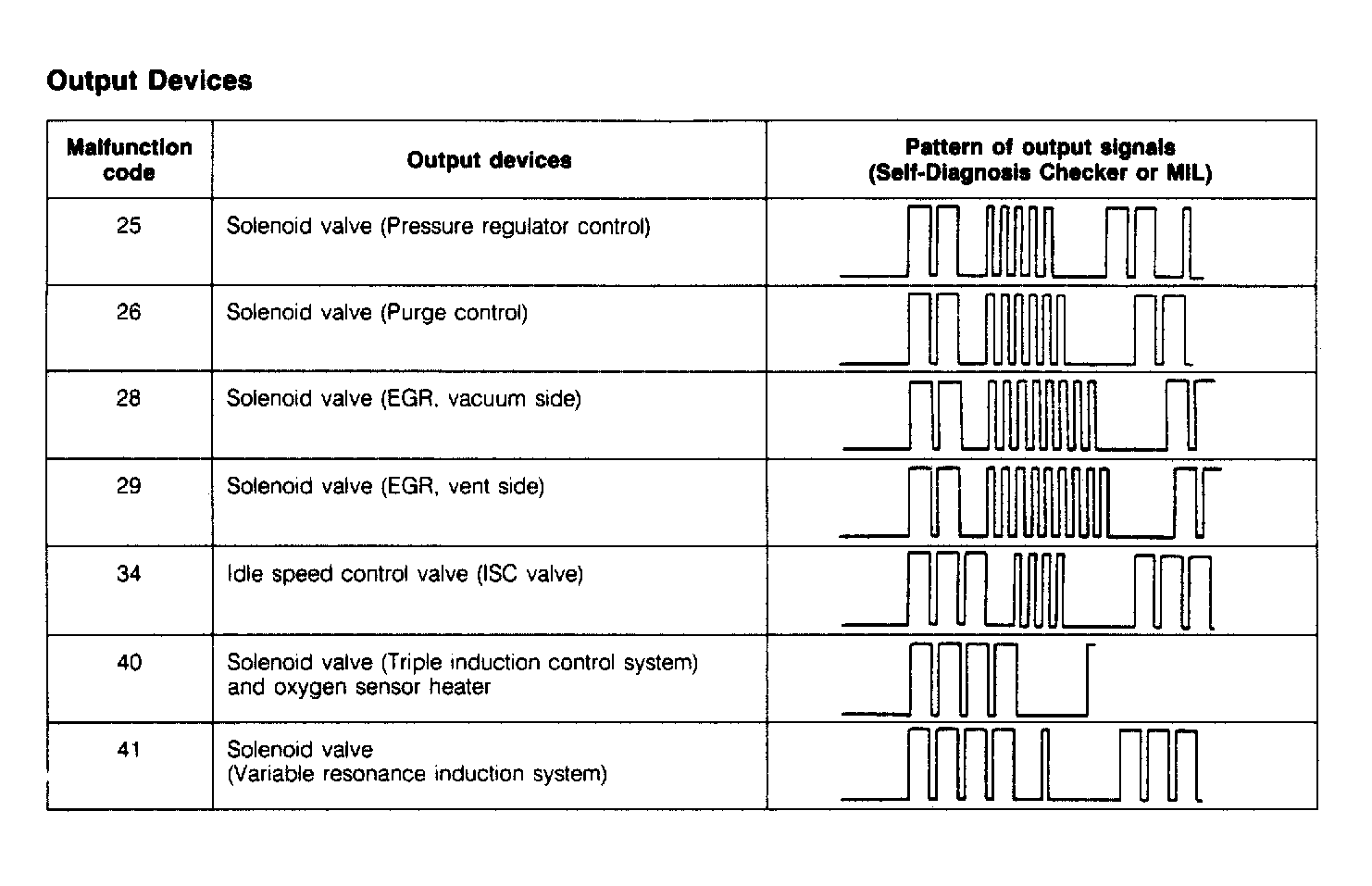

Fig 2: Codes 25-41, Identification Chart
G90D21520Courtesy of MAZDA MOTORS CORP.
